Water is moving with a speed of 20.0 m/s through a pipe with a cross-sectional area...

Water is moving with a speed of 20.0 m/s through a pipe with a cross-sectional area of 3.0 cm2. The water gradually descends 20.0 m as the pipe's cross section increases by a factor of three.

What is the speed of flow at the lower level?

How much higher is the pressure at the lower level compared to the upper level?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

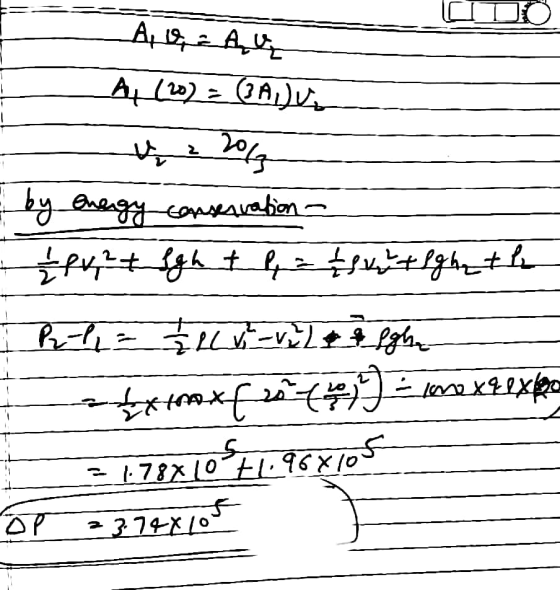

As we know that;

Here,

A1V1=A2V2

Then,

= ∆P= 3.74*10^5 Pa......Answer

0 0
