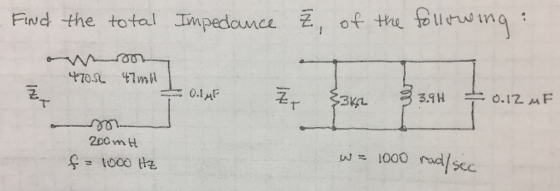

Find the total Impedance Z Find -the total mpedance Z, of the uima : 0.1pF 3.9H...
3. The load impedance Z, in the following povwier circuit is adjusted until the maximum average delivered to the load is delivered to it Find the value of the maximum average power mpedance. (25) 10?
Consider the transmission line crkt in problem 5. Assume the generator impedance is matched to Zin, and take Vs 2.020° V. a) Find the total voltage at z-/12, V(z--/12) b) Find the wave impedance at z--λ/12, Z(z-N12) c) Find the total current at z--A/12, 1(z-N12) Zg 9 Lin Zo=50Ω ZL = 120Ω 「一 Гіп z--l
Consider the transmission line crkt in problem 5. Assume the generator impedance is matched to Zin, and take Vs 2.020° V. a) Find the total...
3 For the network a. Find the total impedance Z and the total admittance Y. b. Find the current I.. c. Calculate I, using the current divider rule. d. Calculate Ve e. Calculate the average power delivered to the network RX-120
Find the input impedance Z(s) of the network in the following figure. (53) 10012 20012 Z(s) 0.1 H
A (30+j40) ohms impedance is in parallel with a (36+j) ohms impedance. Find the total impedance.
3. (20 pts) For the circuit shown below, find the equivalent impedance Z, given u-a rad/s 1/4 H 2S2
For the circuit below, Z, is a variable Impedance connected between (a) & (b) .Find the Thevenin equivalent circuit as seen by Z 604-45 V z, 24560 60Ω j60Ω Adjust value of the load Z such that the load average power is maximum and find P (max)
Find the impedance Zab in the circuit in figure below if Z = 200 <45 ◦ Ω.
Chapter 14, Problem 14.02 (Circuit Solution) Find the input impedance Z(s) of the network in the figure below. 8 Q Z(s) 1 7F 1Ω375 8 H 1Q 6 Q Find Z(s) at s = 1 s-1. Use Thévenin's theorem to find vo(t), t > 0, in the network in the figure below. 2 H 8 F 1 2(t) A 1u(t)V(+ 10 (4)a 1 s Find vo(t) at t V w
Rs 100Ω resistor C- 10 uF capacitor L- 120 mH inductor Write the impedance Z [Q] equation for the circuit shown in Figure 1. This formula should be in term of the frequency (f), not for angular frequency (). (using MATLAB) 1. From the above formula, plot power factor versus frequency over the frequency range 0 Hz to 1000 Hz. You may use a MATLAB program to do the plotting. 2. Find the frequencies for; Maximum power factor, Minimum power...
