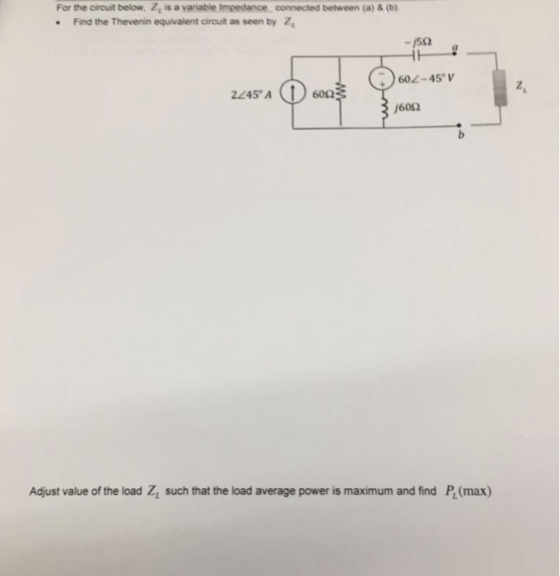

For the circuit below, Z, is a variable Impedance connected between (a) & (b) .Find the...

Question

Question

engineering Electrical-Engineering

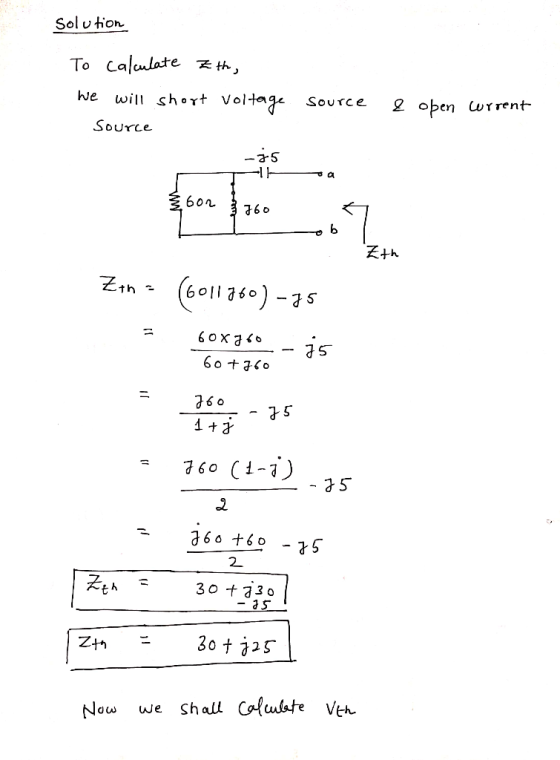

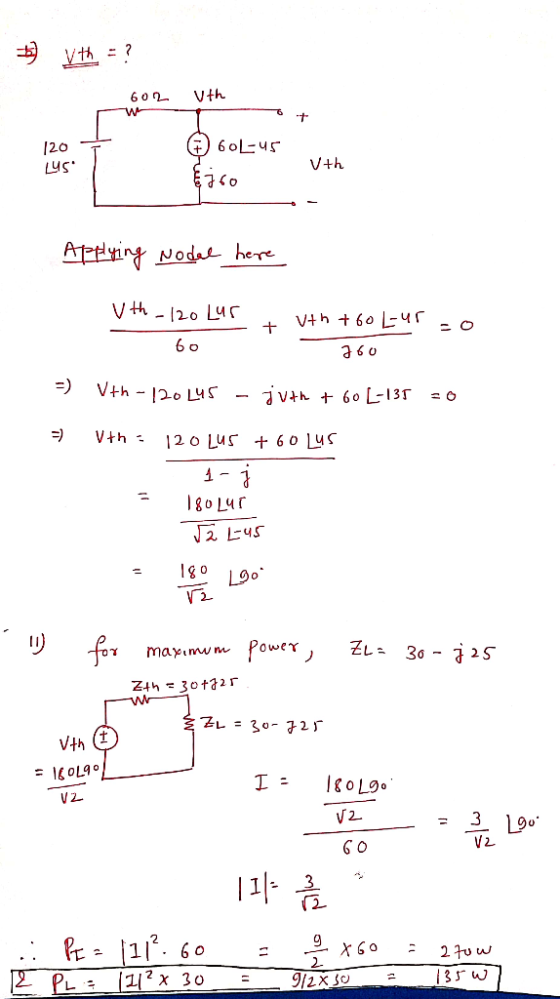

Answer 1

Answer #1

Answer 2
