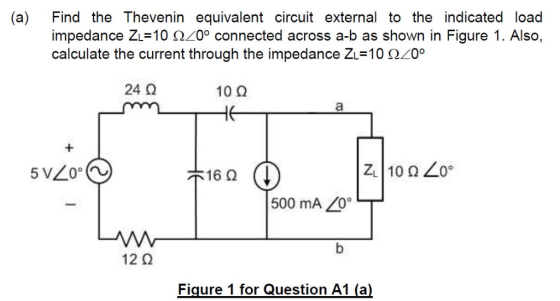

Find the Thevenin equivalent circuit external to the indicated
load
impedance ZL=10Ω∠0° connected across a-b as shown in
Figure 1. Also,
calculate the current through the impedance
ZL=10Ω∠0°

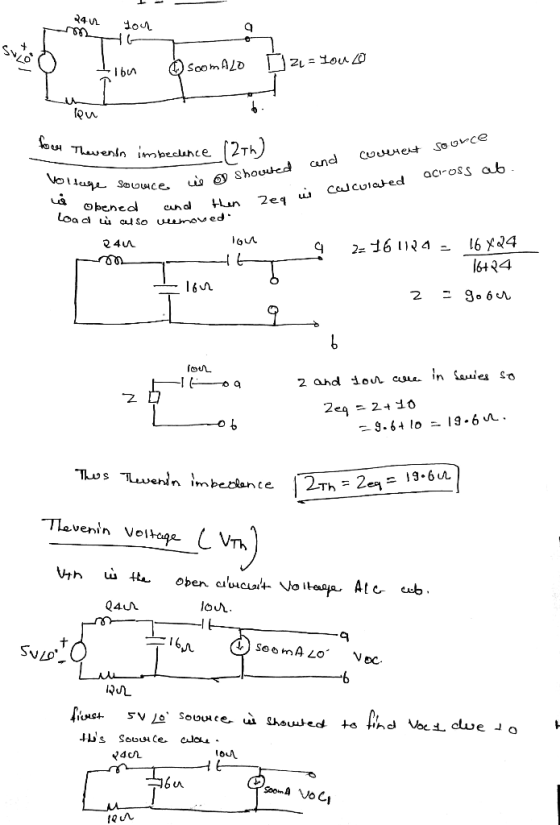

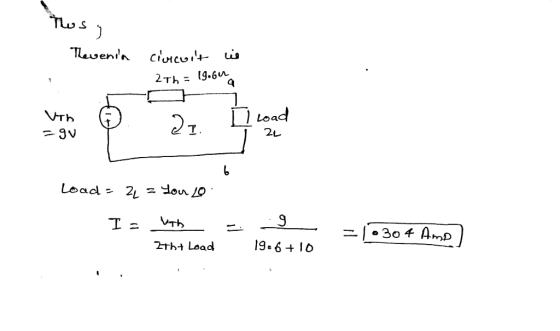

Homework Answers
