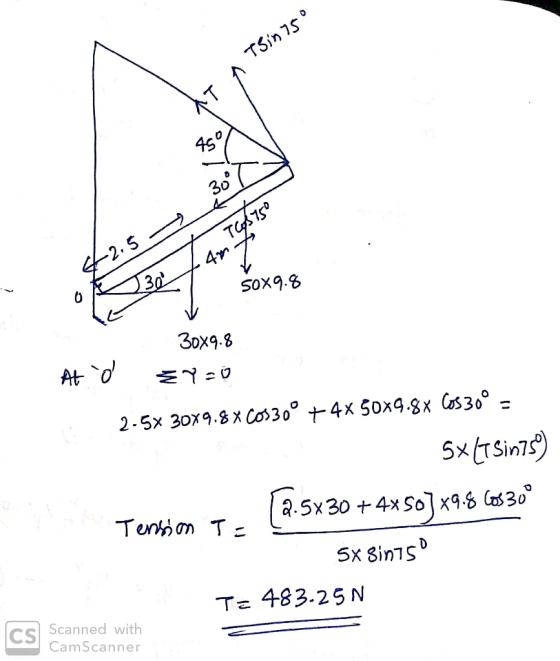

The beam in the figure is 5 meters long and has a mass of 30 kg. A crate with a mass of 50 kg hangs from the 4 meter mark. Calculate the tension in the wire using the attachment of the beam to the wall as the pivot point.
Homework Answers
A uniform beam of length 10.0 m and mass 50.0 kg is attached to a wall...
A uniform beam of length 10.0 m and mass 50.0 kg is attached to a wall at one end and free to pivot at this point. The beam is held horizontal by a cable attached to the far end of the beam and to a point on the wall 5.77 m above the pivot point. The angle between the beam and the cable is 30 degrees. A. What is the tension in the cable? B. What force is exerted by...
A uniform beam of length 20.0 m and mass 50.0 kg is attached to a wall...
A uniform beam of length 20.0 m and mass 50.0 kg is attached to a wall at one end and free to pivot at this point. The beam is held horizontal by a cable attached to the midpoint of the beam and to a point on the wall 5.77 m above the pivot point. The angle between the beam and the cable is 30 degrees. A 20 .0 kg mass hangs from a second cable which is attached to the...
A) a beam of length L is attached to a string as shown in figure. the...
A) a beam of length L is attached to a string as shown in
figure. the mass of the beam is M=20kg. determine the tension in
the string and the force on the beam exerted by the pivot
point.
B) A 7m long beam that has a mass M=25kg is attached to the wall
at point A by a hinge. the beam is also supported by a massless
string as shown in figure. A block with mass m=15kg hangs off...
A 2.000 m long horizontal uniform beam of mass 20.00 kg is supported by a wire...
A 2.000 m long horizontal uniform beam of mass 20.00 kg is supported by a wire as shown in the figure. The wire makes an angle of 20.00 degrees with the beam. Attached to the beam 1.400 m from the wall is a ball with a mass of 40.00 kg. What are the vertical and horizontal components of the force of the wall on the beam at the hinge?
no3 and no4 is together please solve this asap thank you! The theta is 30 degree...
no3 and no4 is together please solve this asap thank you! The
theta is 30 degree
3. A 137 kg uniform horizontal beam is attached to a vertical wall and is supported by a wire, as shown in figure 2. The beam is 3.0 m long, and a 756 kg crate hangs from the end. Find the tension in the wire and the force of the wall against the beam. 4. If the wire in problem no.3 is steel and...
A beam is attached to a vertical wall with a hinge. The mass of the beam...
A beam is attached to a vertical wall with a hinge. The mass of the beam is 1800 kg and it is 4 m long. A steel support wire is tied from the end of the beam to the wall, making an angle of 30° with the beam (see the figure below). 1)Calculate the tension in the support wire. Assume the beam has a uniform density. kN 2)What is the vertical component of the force exerted by the hinge on...
a sign of mass 20.0 kg is supported at the end of a uniform beam of...
a sign of mass 20.0 kg is supported at the end of a uniform beam of mass 10.0 kg and length 2.00!m. the beam makes an angle of 30.0 degrees with the horizontal. a wire is attached from the end of the rod to a point on the wall and makes an angle if 20.0 degrees to the horizontal. what is the tension of the wire. what are the magnitudes of the horizontal and vertical components of the reaction force...
A box of mass 21 -5 kg hangs from point B as shown in the Figure....
A box of mass 21 -5 kg hangs from point B as shown in the Figure. The uniform aluminum pole AB is 7.50 m long and has a mass of 12.0 kg. Determine the magnitude of the tension force in the horizontal massless cable CD. Determine the vertical and horizontal components of the force exerted by the pivot A on the aluminum pole.
A crate with a mass of 161.5 kg is suspended from the end of a uniform...
A crate with a mass of 161.5 kg is suspended from the end of a
uniform boom with a mass of 71.3 kg. The upper end of the boom is
supported by a cable attached to the wall and the lower end by a
pivot (marked X) on the same wall. Calculate the tension in the
cable.
A crate with a mass of 161.5 kg is suspended from the end of a uniform boom with a mass of 71.3 kg....
a steel beam 5.0 m long with a mass of 80 kg is hinged at its...
a steel beam 5.0 m long with a mass of 80 kg is hinged at its left end to the wall. a heavy sign with a mass of 220 kg hangs from the beam 4.25m from the wall. the cable supporting the beam snaps, and the beam begins to fall. what is the initial angular acceleration of the beam?
A) a beam of length L is attached to a string as shown in
figure. the mass of the beam is M=20kg. determine the tension in
the string and the force on the beam exerted by the pivot
point.
B) A 7m long beam that has a mass M=25kg is attached to the wall
at point A by a hinge. the beam is also supported by a massless
string as shown in figure. A block with mass m=15kg hangs off...
no3 and no4 is together please solve this asap thank you! The
theta is 30 degree
3. A 137 kg uniform horizontal beam is attached to a vertical wall and is supported by a wire, as shown in figure 2. The beam is 3.0 m long, and a 756 kg crate hangs from the end. Find the tension in the wire and the force of the wall against the beam. 4. If the wire in problem no.3 is steel and...
A box of mass 21 -5 kg hangs from point B as shown in the Figure. The uniform aluminum pole AB is 7.50 m long and has a mass of 12.0 kg. Determine the magnitude of the tension force in the horizontal massless cable CD. Determine the vertical and horizontal components of the force exerted by the pivot A on the aluminum pole.
A crate with a mass of 161.5 kg is suspended from the end of a
uniform boom with a mass of 71.3 kg. The upper end of the boom is
supported by a cable attached to the wall and the lower end by a
pivot (marked X) on the same wall. Calculate the tension in the
cable.
A crate with a mass of 161.5 kg is suspended from the end of a uniform boom with a mass of 71.3 kg....
