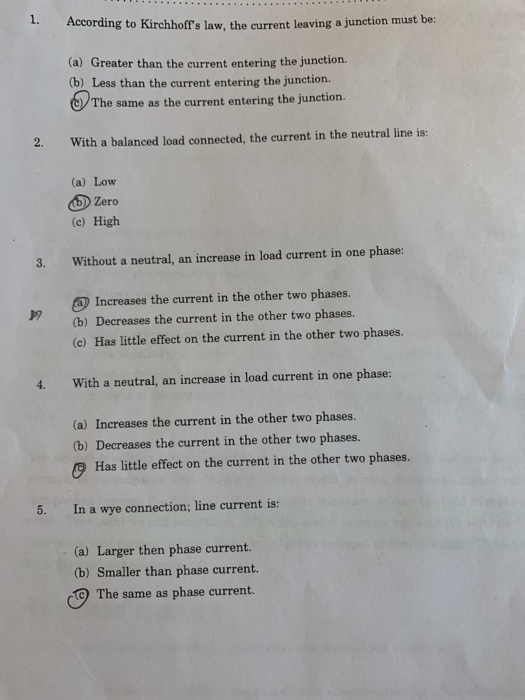

1. According to Kirchhoff's law, the current leaving a junction must be: (a) Greater than the...
What is the answer for questions 2-5? Questions: 1. Delta-Wye and Wye-Delta configurations both produce: a)...
What is the answer for questions 2-5?
Questions: 1. Delta-Wye and Wye-Delta configurations both produce: a) Increases in secondary voltages and currents. b) Decreases in the secondary voltages and currents. c) Phase shift between the incoming and outgoing line voltages. d) Additional V3 increases in the secondary voltages and currents. ANSWER: Choose an item. 2. The line voltage at the secondary of a 10:1 wye-delta connected transformer will be: a) Equal to the line voltage at the primary times b)...
Problem 2:Three phase droult (42 pts) A three-phase wye connected generator ﹃plies two paral el loads...
Problem 2:Three phase droult (42 pts) A three-phase wye connected generator ﹃plies two paral el loads through a feeder. tad is matalaeeday connected load and load 2 is a balanced delta connected loed. System data: Generator: Rating S-5oo MVA; Line Voltage: Veu-25KV; Feeder impedance: 7-(0.08 jo 62) O/mile, length-8 miles Generator reactance Xe- 1108: P.-75MW pf c-o.78 (all the power factors are lagging) (a) Draw the one-line diagram and a three-phase equivalent circuit (8pts) (b) Calculate the generator and feeder...
Learning Goal: To find voltages and power in a balanced three-phase circuit. Three identical AC voltage...
Learning Goal: To find voltages and power in a balanced three-phase circuit. Three identical AC voltage sources, each with amplitude 170 V, are connected in a Y configuration to three identical resistances, each 50 , also in a Y configuration. There is also a fourth, neutral line in the circuit (see diagram). The voltage sources are each 120° out of phase from the other two sources R RE R - Part A - Load current What is the RMS current...
1. [20 points] Choose the right answer. a) If phase current of a wye-connected three-phase system...
1. [20 points] Choose the right answer. a) If phase current of a wye-connected three-phase system is equal to Ipu, then the line current of the same system is equal to V3 pu. i. True ii. False b) A synchronous generator is supplying power to a load with unity power factor at 60 Hz. The load is suddenly disconnected (tripped). What would happen to the internal generated voltage, EA? i. Same as before ii. Increase iii. Decrease c) What is...
Question: A three-phase line has an impedance of 1 + j2 Ω per phase. The line...
Question: A three-phase line has an impedance of 1 + j2 Ω per phase. The line feeds two balanced three-phase loads that are connected in parallel. The first load is Y-connected and has an impedance of 20+j40 Ω per phase. The second load is ∆-connected and has an impedance of 30-j60 Ω per phase. The line-to-line voltage at the load end of the line is 415V. Taking the phase voltage Va as reference, determine: a) The total current per phase...
Need help with e) and f). e) Derive a formula and give the numerical value for the input power factor of Phase A. f) Derive a formula and give the numerical value for the THD of the line current ia(...
Need help with e) and f).
e) Derive a formula and give the numerical value for the input
power factor of Phase A.
f) Derive a formula and give the numerical value for the THD
of the line current ia(t)
Q3: Three-phase rectifier with six diodes [15pts] The three-phase diode-rectifier below has six diodes and a purely resistive load Rout. The sinusoidal input voltage sources (with a phase difference of 120') are star-connected and have the line-to- neutral amplitude Vn...
HELP with finding 8 and 9 2. IC temperature sensor The emitter-base voltage VEB of a PNP bipolar junction transistor (BJT) with its base and collector shorted (figure 1(a)) can be expressed by VEB (k...
HELP with finding 8 and 9
2. IC temperature sensor The emitter-base voltage VEB of a PNP bipolar junction transistor (BJT) with its base and collector shorted (figure 1(a)) can be expressed by VEB (kT/q) In(Ic/Is), in which Is is the saturation current of the emitter-base junction (a) (3 pts) Choose any statement below that correctly describe the effect of temperature on the property of the BIT under a constant 1c as shown in figure 1(a).18_.(one or more than one...
1. Explicit costs ______. do not involve outlays of cash are greater than implicit costs involve...
1. Explicit costs ______. do not involve outlays of cash are greater than implicit costs involve outlays of cash are less than implicit costs 2. Opportunity costs can vary from person to person and ______________________. can be calculated easily most of the time can even be different for the same person at different points in time are always known and predictable represent explicit costs only 3. An example of an implicit cost would be ______. transportation expenses salaries rental costs...
solve no: 3.14 , 3.16, 3.19 please show each step and solve for beginners 120 Power...
solve no: 3.14 , 3.16, 3.19
please show each step and solve for beginners
120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
1. According to Keynesian theory, the primary determinant of the level of consumption and saving in...
1. According to Keynesian theory, the primary determinant of the level of consumption and saving in the economy is the: a. level of investment. c. level of prices. b. level of income. d. interest rate. 2. If a family's MPC is. 7, it is: a. spending 70 percent of its income on consumer goods. b. necessarily dissaving. c. spending seventenths of any increment to its income d. operating at the breakeven point. The size of the MPC is assumed to...
What is the answer for questions 2-5?
Questions: 1. Delta-Wye and Wye-Delta configurations both produce: a) Increases in secondary voltages and currents. b) Decreases in the secondary voltages and currents. c) Phase shift between the incoming and outgoing line voltages. d) Additional V3 increases in the secondary voltages and currents. ANSWER: Choose an item. 2. The line voltage at the secondary of a 10:1 wye-delta connected transformer will be: a) Equal to the line voltage at the primary times b)...
Problem 2:Three phase droult (42 pts) A three-phase wye connected generator ﹃plies two paral el loads through a feeder. tad is matalaeeday connected load and load 2 is a balanced delta connected loed. System data: Generator: Rating S-5oo MVA; Line Voltage: Veu-25KV; Feeder impedance: 7-(0.08 jo 62) O/mile, length-8 miles Generator reactance Xe- 1108: P.-75MW pf c-o.78 (all the power factors are lagging) (a) Draw the one-line diagram and a three-phase equivalent circuit (8pts) (b) Calculate the generator and feeder...
Learning Goal: To find voltages and power in a balanced three-phase circuit. Three identical AC voltage sources, each with amplitude 170 V, are connected in a Y configuration to three identical resistances, each 50 , also in a Y configuration. There is also a fourth, neutral line in the circuit (see diagram). The voltage sources are each 120° out of phase from the other two sources R RE R - Part A - Load current What is the RMS current...
1. [20 points] Choose the right answer. a) If phase current of a wye-connected three-phase system is equal to Ipu, then the line current of the same system is equal to V3 pu. i. True ii. False b) A synchronous generator is supplying power to a load with unity power factor at 60 Hz. The load is suddenly disconnected (tripped). What would happen to the internal generated voltage, EA? i. Same as before ii. Increase iii. Decrease c) What is...
Need help with e) and f).
e) Derive a formula and give the numerical value for the input
power factor of Phase A.
f) Derive a formula and give the numerical value for the THD
of the line current ia(t)
Q3: Three-phase rectifier with six diodes [15pts] The three-phase diode-rectifier below has six diodes and a purely resistive load Rout. The sinusoidal input voltage sources (with a phase difference of 120') are star-connected and have the line-to- neutral amplitude Vn...
HELP with finding 8 and 9
2. IC temperature sensor The emitter-base voltage VEB of a PNP bipolar junction transistor (BJT) with its base and collector shorted (figure 1(a)) can be expressed by VEB (kT/q) In(Ic/Is), in which Is is the saturation current of the emitter-base junction (a) (3 pts) Choose any statement below that correctly describe the effect of temperature on the property of the BIT under a constant 1c as shown in figure 1(a).18_.(one or more than one...
solve no: 3.14 , 3.16, 3.19
please show each step and solve for beginners
120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
1. According to Keynesian theory, the primary determinant of the level of consumption and saving in the economy is the: a. level of investment. c. level of prices. b. level of income. d. interest rate. 2. If a family's MPC is. 7, it is: a. spending 70 percent of its income on consumer goods. b. necessarily dissaving. c. spending seventenths of any increment to its income d. operating at the breakeven point. The size of the MPC is assumed to...
