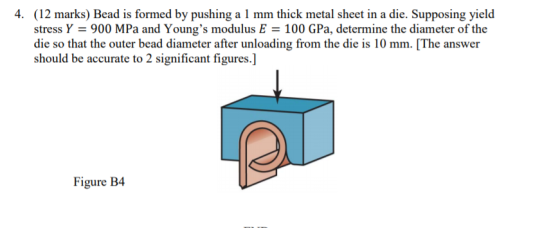

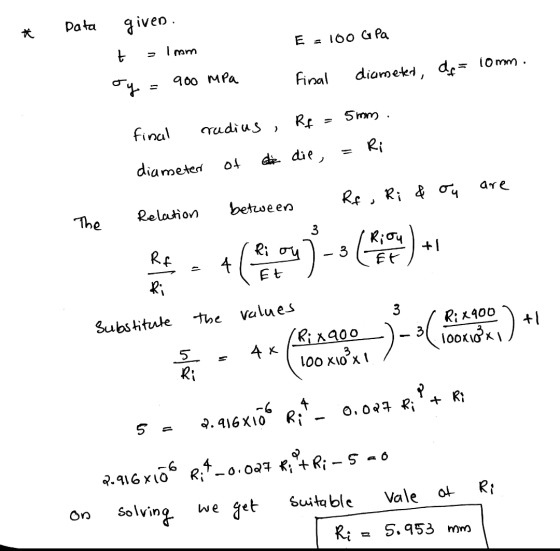

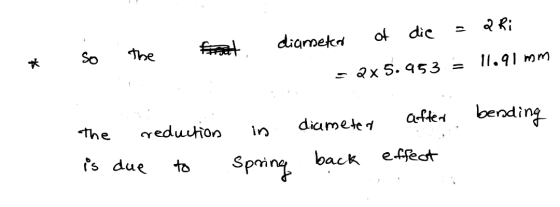

4. (12 marks) Bead is formed by pushing a 1 mm thick metal sheet in a...
Ection A uestion 1 Hook's Law, state which variables are involtved it its calculation and explain...
ection A uestion 1 Hook's Law, state which variables are involtved it its calculation and explain, equations or text, how to determine it (2 marks) A1. The with a square cross-section 1 cm. Determine the direct stress test specimen is being subjected to a tensile load of 3.0 kN, as shown in figure specimen is composed of Titanium, the cylinder is being subjected to. Show your resulit in MNIm s cm Figure A1 Tensile test specimen (3 marks) c) How...
A thick-walled steel cylinder with internal diameter = 16 mm and external diameter = 24 mm is sub...
A thick-walled steel cylinder with internal diameter = 16 mm and
external diameter = 24 mm is subjected to a gradually increasing
internal pressure P.
I. Using accurate formulation, determine the value
of P and sketch the distribution of radial, tangential and maximum
shear stresses when:
a. The material of the cylinder first commences to
yield.
b. Yielding progressed to mid-depth of the cylinder
wall (at D= 20 mm ).
c. The material of the cylinder suffers complete
collapse (fully...
Q3. (a) Define "Brittle Define "Brittle Materials and Ductile Materials in terms of Ductinty. (12 marks)...
Q3. (a) Define "Brittle Define "Brittle Materials and Ductile Materials in terms of Ductinty. (12 marks) (b) A solid metal bar of 30 mm tensile load of 120 kN. Find the stress, strain an Assume the Young's Modulus of the metal is 200 kN/mmº. Dar of 30 mm in diameter and 8 m in length is subjected to a ad of 120 kN. Find the stress strain and elongation in the matena. (9 marks) (c) A metal bar is subjected...
A cable car weighs 2500 kg. The cable is made of steel of diameter 12 mm...
A cable car weighs 2500 kg. The cable is made of steel of diameter 12 mm (Young's modulus of steel is 207 GPa). a) What is the strain in the cable? b) What is the extension in the cable when the cable length is 2.4 m? c) If the yield stress of the steel cable is 300 MPa, how many people can get in the lift car? Assume average weight of one person = 65 kg and Factor of Safety...
plz anser q1 3 4 1. Predictions of elastic modulus, yield and ultimate loads (attach additional...
plz anser q1 3 4
1. Predictions of elastic modulus, yield and ultimate loads (attach additional sheets not enough space): Given: - steel tube outer diameter: 165.1mm; wall thickness: 3.3mm; no gap between concrete and steel. - Young's modulus of steel (200 GPa). Young's modulus of concrete (30 GPa). - strengths of concrete (45 MPa) and steel (yield stress q=350 MPa, ultimate stress 0,450 MPa). Calculate/Predict (see questions 9 & 10, in "stress-strain_deformation_16Questions_solutions.pdf): -Young's Modulus E of the composite material...
1. A large, thick plate contains a through crack with total crack length 2a, lying in the x-axis (figure below). The size of the specimen is much larger than the crack. The toughness of the materi...
1. A large, thick plate contains a through crack with total crack length 2a, lying in the x-axis (figure below). The size of the specimen is much larger than the crack. The toughness of the material is Gc-11.7 KJ / m2 , the Young's modulus of the material is E-200 GPa, the Poisson's ratio v 0.25, and the yield stress is sufficiently high. If the remote stresses are σ o, :: 200 MPa. Try-100 MPa, what should be the critical...
1. A large, thick plate contains a through crack with total crack length 2a, lying in...
1. A large, thick plate contains a through crack with total crack length 2a, lying in the x-axis (figure below). The size of the specimen is much larger than the crack. The toughness of the material is Gc-11.7 KJ / m2 , the Young's modulus of the material is E-200 GPa, the Poisson's ratio v 0.25, and the yield stress is sufficiently high. If the remote stresses are σ o, :: 200 MPa. Try-100 MPa, what should be the critical...
A wide sheet (1 mm thick) of steel is bent elastically to a constant radius of curvature, p 500 mm measured form the axis of bending to the center of the sheet as shown in figure 1. Find the stress i...
A wide sheet (1 mm thick) of steel is bent elastically to a constant radius of curvature, p 500 mm measured form the axis of bending to the center of the sheet as shown in figure 1. Find the stress in the surface. Assume that there is no net force in the plane of the sheet. Knowing that E 208 GPa, and v 0.3 for steel. 04) a) Figure1
A wide sheet (1 mm thick) of steel is bent elastically...
Question 1 (30 Marks) Plate A is fillet-welded to Plate B as shown in Figure 1. Plate A and Plate B have the same material properties Both plates are 10 mm thick. There are two holes (with a diameter...
Question 1 (30 Marks) Plate A is fillet-welded to Plate B as shown in Figure 1. Plate A and Plate B have the same material properties Both plates are 10 mm thick. There are two holes (with a diameter of d) in Plate A. It is assumed that weld failure will not occur (a) If Plate A has a yield stress (fy) of 350 MPa and an ultimate tensile strength (fu) of 450 MPa, what is the maximum load (P)...
Problem 1: (a)A thick-walled cylinder, made from a homogeneous and isotropic elastic material, has an inner...
Problem 1: (a)A thick-walled cylinder, made from a homogeneous and isotropic elastic material, has an inner radius a and outer radius b. The cylinder is subjected to an internal pressure pi, and is under plane stress conditions. In this case the displacement field is of interest is given by and the stress field of interest is given by C2 C2 where, with (E and v) denoting the Young's modulus and the Poisson's Ratio. EA EB Show that b2 b2 (b/a)2-1)...
ection A uestion 1 Hook's Law, state which variables are involtved it its calculation and explain, equations or text, how to determine it (2 marks) A1. The with a square cross-section 1 cm. Determine the direct stress test specimen is being subjected to a tensile load of 3.0 kN, as shown in figure specimen is composed of Titanium, the cylinder is being subjected to. Show your resulit in MNIm s cm Figure A1 Tensile test specimen (3 marks) c) How...
A thick-walled steel cylinder with internal diameter = 16 mm and
external diameter = 24 mm is subjected to a gradually increasing
internal pressure P.
I. Using accurate formulation, determine the value
of P and sketch the distribution of radial, tangential and maximum
shear stresses when:
a. The material of the cylinder first commences to
yield.
b. Yielding progressed to mid-depth of the cylinder
wall (at D= 20 mm ).
c. The material of the cylinder suffers complete
collapse (fully...
Q3. (a) Define "Brittle Define "Brittle Materials and Ductile Materials in terms of Ductinty. (12 marks) (b) A solid metal bar of 30 mm tensile load of 120 kN. Find the stress, strain an Assume the Young's Modulus of the metal is 200 kN/mmº. Dar of 30 mm in diameter and 8 m in length is subjected to a ad of 120 kN. Find the stress strain and elongation in the matena. (9 marks) (c) A metal bar is subjected...
A cable car weighs 2500 kg. The cable is made of steel of diameter 12 mm (Young's modulus of steel is 207 GPa). a) What is the strain in the cable? b) What is the extension in the cable when the cable length is 2.4 m? c) If the yield stress of the steel cable is 300 MPa, how many people can get in the lift car? Assume average weight of one person = 65 kg and Factor of Safety...
plz anser q1 3 4
1. Predictions of elastic modulus, yield and ultimate loads (attach additional sheets not enough space): Given: - steel tube outer diameter: 165.1mm; wall thickness: 3.3mm; no gap between concrete and steel. - Young's modulus of steel (200 GPa). Young's modulus of concrete (30 GPa). - strengths of concrete (45 MPa) and steel (yield stress q=350 MPa, ultimate stress 0,450 MPa). Calculate/Predict (see questions 9 & 10, in "stress-strain_deformation_16Questions_solutions.pdf): -Young's Modulus E of the composite material...
1. A large, thick plate contains a through crack with total crack length 2a, lying in the x-axis (figure below). The size of the specimen is much larger than the crack. The toughness of the material is Gc-11.7 KJ / m2 , the Young's modulus of the material is E-200 GPa, the Poisson's ratio v 0.25, and the yield stress is sufficiently high. If the remote stresses are σ o, :: 200 MPa. Try-100 MPa, what should be the critical...
1. A large, thick plate contains a through crack with total crack length 2a, lying in the x-axis (figure below). The size of the specimen is much larger than the crack. The toughness of the material is Gc-11.7 KJ / m2 , the Young's modulus of the material is E-200 GPa, the Poisson's ratio v 0.25, and the yield stress is sufficiently high. If the remote stresses are σ o, :: 200 MPa. Try-100 MPa, what should be the critical...
A wide sheet (1 mm thick) of steel is bent elastically to a constant radius of curvature, p 500 mm measured form the axis of bending to the center of the sheet as shown in figure 1. Find the stress in the surface. Assume that there is no net force in the plane of the sheet. Knowing that E 208 GPa, and v 0.3 for steel. 04) a) Figure1
A wide sheet (1 mm thick) of steel is bent elastically...
Question 1 (30 Marks) Plate A is fillet-welded to Plate B as shown in Figure 1. Plate A and Plate B have the same material properties Both plates are 10 mm thick. There are two holes (with a diameter of d) in Plate A. It is assumed that weld failure will not occur (a) If Plate A has a yield stress (fy) of 350 MPa and an ultimate tensile strength (fu) of 450 MPa, what is the maximum load (P)...
Problem 1: (a)A thick-walled cylinder, made from a homogeneous and isotropic elastic material, has an inner radius a and outer radius b. The cylinder is subjected to an internal pressure pi, and is under plane stress conditions. In this case the displacement field is of interest is given by and the stress field of interest is given by C2 C2 where, with (E and v) denoting the Young's modulus and the Poisson's Ratio. EA EB Show that b2 b2 (b/a)2-1)...
