Question

Melun, an electrical engineering professor sets up the circut shown in the figure. The reading of the voltmeter is 6.90 V and
0 0
Add a comment Improve this question Transcribed image text
Answer #1

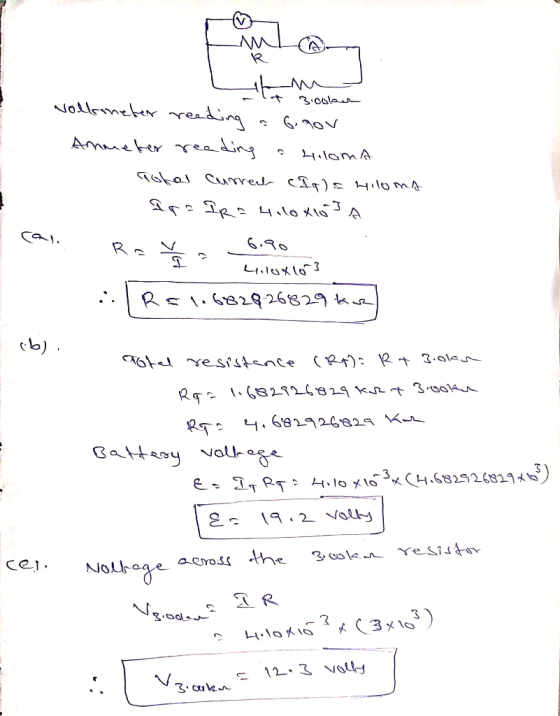

ful@my T 3.oolen vollsoneter reading a Girov Ammeter reading a hiloma Total current cIq) = hiloma г. Зох ч lо kе л cas, Roma

Add a comment
Know the answer?
Add Answer to:
Melun, an electrical engineering professor sets up the circut shown in the figure. The reading of...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Electrical engineering car battery. We measure the voltage across its terminals with a voltmeter and it...

    Electrical engineering car battery. We measure the voltage across its terminals with a voltmeter and it shows an (open circuit) voltage of 12 volts. We place a 5 ohm resistor across the battery terminals, and we measure the current through with ammeter, and it shows 3 Amps. Show the Norton and Thevenin equivalent circuits including parameters for this battery.

  • Question One: In the figure below, what is the reading on the ammeter in each case...

    Question One: In the figure below, what is the reading on the ammeter in each case .5 .6 (A) If you connected the circuit to the 3A setting on the ammeter, then the reading will be (B) If you connected the circuit to the 1A setting on the ammeter, then the reading will be (C) If you connected the circuit to the 300 mA setting on the ammeter, then the reading will be uestion Two: (A) Is the equivalent resistance,...

  • Explain For the circuit shown in the Figure 3, R is 12.0 ? and the ammeter...

    Explain For the circuit shown in the Figure 3, R is 12.0 ? and the ammeter reads 0.25 A 11. What is the reading of the voltmeter 12. 15.0 12, What is the voltage across the 15.0 ? resistor? Figure 3 13. If the emf of the battery is 9V, what is the internal resistance of the battery? .2S 14. Calculate the total power that dissipates in this circuit. extenal 15, which one, if either, does dissipate most power: the...

  • Saneeta lehen 2) In the circuit shown in the figure, two 300- resistors are connected in...

    Saneeta lehen 2) In the circuit shown in the figure, two 300- resistors are connected in series with an ideal battery. A voltmeter is connected across one of the resistors and reads 3.23 V for the voltage across the resistor. Find the voltage of the battery.

  • The figure shows a circuit in which the ideal ammeter has a reading of 1,80 x...

    The figure shows a circuit in which the ideal ammeter has a reading of 1,80 x 10-3 A and the ideal voltmeter has a reading of 9.20 V. What are the following? (Assume R1 = 1.35-0.) R w w R (a) the unknown resistance, R2 511 X Your response is off by a multiple of ten, ko (b) the emf of the battery V (c) the potential difference across the R, resistor V Need Help? Read It Master It

  • For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0...

    For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0 V 4,00 Ω 2.00 Ω (a) Calculate the current in the 2.00 Ω resistor. (Enter the magnitude.) mA (b) Calculate the potential difference between points a and b. The ammeter shown in the figure below reads 2.94 A. Find the following. 15.0 V 7.00 Ω 5.00 Ω 2.00 Ω ε (a) 1A Consider the following figure, where ε,-12 V and ε2-9.2 v. 10.011 6.00...

  • The resistor should read 10.0 Ω. Tap on the battery so that the voltage adjustment window pops up. Adjust the voltage to 10.0 V.

    3. The resistor should read 10.0 Ω. Tap on the battery so that the voltage adjustment window pops up. Adjust the voltage to 10.0 V. What is the current in the circuit? What is the voltage across the resistor? 4. Now build the circuit with two resistors in series with 10.0 2 each (Series Circuit). What is the current through the circuit with a battery voltage of 10.0 V? How does this compare to the current with just one resistor of...

  • For the circuit shown in the figure below, find the following: Reading of the [ideal] ammeter...

    For the circuit shown in the figure below, find the following: Reading of the [ideal] ammeter in Amps, Voltage between the two 80 ohm resistors (relative to ground) Current through the 10 V battery

  • With the given information, what are the following values? Also, sorry for the picture quality. it...

    With the given information, what are the following values? Also, sorry for the picture quality. it was the best I could do. The voltage is 0.528 V(in volts) and the current is in amperes. However, I think it needs to be converting to mA. So, I believe the current is 0.1483 mA, 0.0925 mA, 0.00498 mA. Parallel Circuit Voltage V Total current A Observed total Ω Theoretical Rotal 12 Do the observed results agree reasonably with the experimental value? 1....

  • 15 Electrical Circuits Lab E: PARALLEL CIRCUITS Name wr w¡ฆ now discover how cument, voltage, and...

    15 Electrical Circuits Lab E: PARALLEL CIRCUITS Name wr w¡ฆ now discover how cument, voltage, and r cireuit. Set the power supply at 1.5 V for this lab, or use a single dry cell EXCEED ISV resistance eperate in any parallel 1.5 Do NOI Step 1: Set sp a circuit with a power supply set at 1.5 V and two resistors as shown in diagram A. The ammeser is positioned to measure the current entering Diagram A resistor one (Rj...
