Homework Answers
Add Answer to:

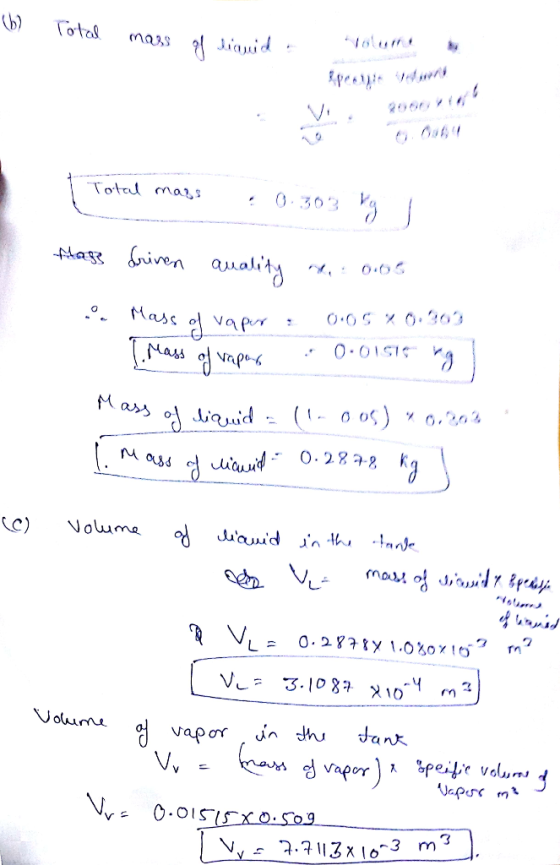

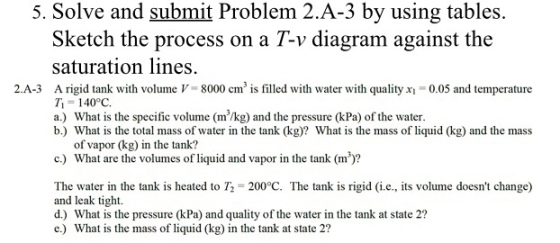

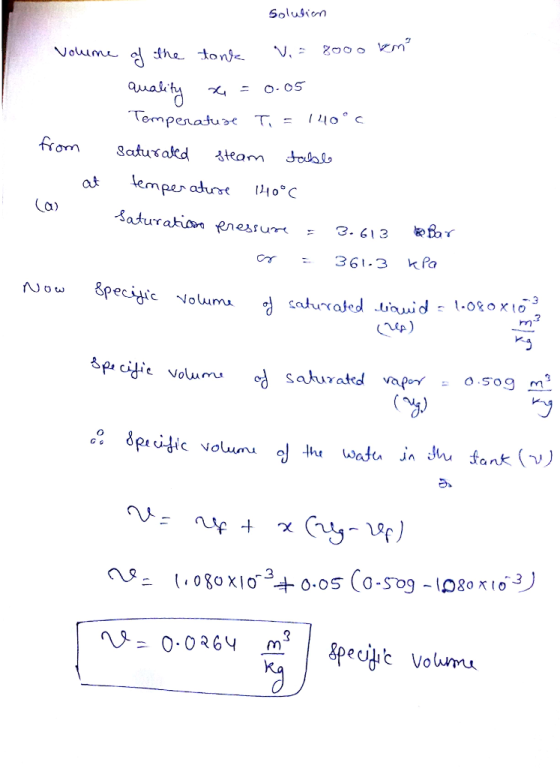

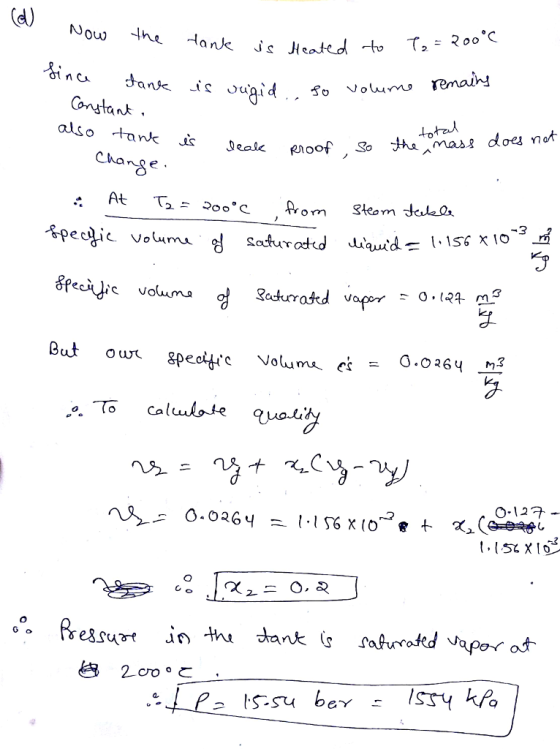

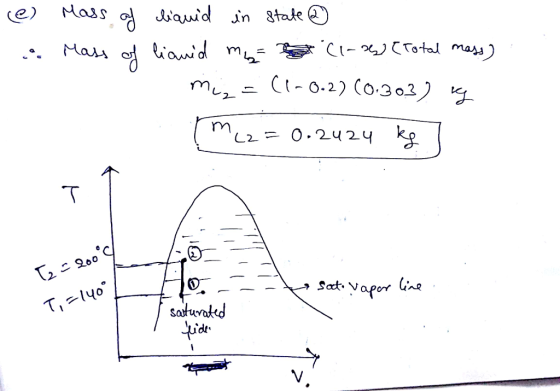

5. Solve and submit Problem 2.A-3 by using tables. Sketch the process on a T-v diagram...
SP04 A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated...
SP04 A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line containing steam at a pressure of pL- 10 bars (1000 kPa) and a temperature of TL 500°C. The valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve...
NEED HELP A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a...
NEED HELP
A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve is closed and it is found that p2-5 bars (500 kPa). Find (a) the state of the...
Ignore anything handwritten Problem 2 (50 points) A closed rigid tank contains of a two-phase liquid-vapor...
Ignore anything
handwritten
Problem 2 (50 points) A closed rigid tank contains of a two-phase liquid-vapor mixture of water, with a mass of 1 kg quality of x,-0.75, and a pressure of pi = 40 kPa (State 1 ). The system is heated in a constant- volume process till the pressure reaches p2-100 kPa (State 2) Sa) Determine the temperature, T, in "C, specific volume, Pi in m'/kg, and specific internal energy, ul, in kJ/kg at state 1; (12.5 points)...
A sealed rigid tank contains 5.0 kg of water (liquid plus vapor) at 100 oC with...
A sealed rigid tank contains 5.0 kg of water (liquid plus vapor) at 100 oC with a quality of 30.375%. Using the Thermodynamic Tables that accompany the textbook and the relationship between quality and other thermodynamic properties: Calculate the specific volume of the water. Determine the mass of water in the vapor phase. Determine the saturation pressure and temperature of this water if it had the specific volume calculated in part (a) and a quality of 100%. Determine the amount...
2.41 A closed, rigid tank contains 10 lbn water at a pressure of 60 psia and...
2.41 A closed, rigid tank contains 10 lbn water at a pressure of 60 psia and a quality of 0.92. The water is heated until its pressure has increased to 120 psia. Calculate the following quantities: (a) the mass of liquid water in the tank at the initial state (b) the mass of the water vapor in the tank at the initial state (c) the initial temperature of the water in the tank (d) the volume of the tank (e)...
90 Chapter 2 PROPERTIES OF SUBSTANCES for all Pages Due 03/19/2020 start b. x=0.2, P =...
90 Chapter 2 PROPERTIES OF SUBSTANCES for all Pages Due 03/19/2020 start b. x=0.2, P = 100 kPa C C c. P-2 MPa, T = 400°C 2-41) Calculate the mass of water contained in a 0.6-mº vessel under the following conditions: a. 100 kPa, 150°C b. 300 kPa, 600°C c. 50 kPa, 81°C d. 400 kPa, saturated vapor e. 400 kPa, saturated liquid f. At the critical state 2-42. Determine the internal energy of H.O at 10 MPa and 450°C....
Draw a T-v diagram of a pure substance including the liquid, vapor, and liquid/vapor region. Using...
Draw a T-v diagram of a pure substance including the liquid, vapor, and liquid/vapor region. Using this diagram, explain what happens if a saturated liquid is heated (such that the temperature rises) in a rigid (constant volume) container. Using the same diagram, explain what happens when a saturated vapor is heated (such that the temperature rises) in a rigid container.
1. A saturated water liquid-vapor mixture with a total mass of 1.3 kg is contained in...
1. A saturated water liquid-vapor mixture with a total mass of 1.3 kg is contained in a piston-cylinder assembly, with the piston initially placed so that the volume of the mix- ture is 1.5 m. The initial temperature of the mixture is 30°C. The piston is then pushed inward until the volume is halved, and the container is heated until the pressure is 400 kPa. Determine Sherleader 306 V Tup V 400 kPa (a) the quality of the mixture for...
Homework 2 Problem 1: A piston-cylinder device initially contains 0.35-kg steam at 3.5 MPa, superheated by...
Homework 2 Problem 1: A piston-cylinder device initially contains 0.35-kg steam at 3.5 MPa, superheated by 7.4 C. Now the stream loses heat to the surroundings and the piston moves down, hitting a set of stops at which point the cylinder contains saturated liquid water. The cooling continues until the cylinder contains water at 200C. Determine (a) the final pressure and the quality (if mixture), (b) the boundary work, (c) the amount of heat transfer when the piston first hits...
quality x=0.5 indicates a liquid/vapor mix. A piston cylinder device contains V-0 2 m3 of water...
quality x=0.5 indicates a liquid/vapor mix.
A piston cylinder device contains V-0 2 m3 of water at P 140 kPa and a quality of x/=0.5. The cross- sectional area of the piston is A-0.2 m2 and is restrained by a linear spring with spring constant K-52 kN/m Heat is added to the water until the volume expands to V2= 0.4 m3 (a) Determine the mass of water and the final pressure P2 (b) Fill in all other missing properties in...
SP04 A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line containing steam at a pressure of pL- 10 bars (1000 kPa) and a temperature of TL 500°C. The valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve...
NEED HELP
A rigid, poorly insulated tank with a volume of V1.0 m3 initially contains a saturated water vapor (quality of 1.0) at a pressure of 3 bars (300 kPa). The tank is connected to a supply line valve is opened and 2.0 kg of steam enters the rigid tank, after which the valve is closed. The pressure is measured after the valve is closed and it is found that p2-5 bars (500 kPa). Find (a) the state of the...
Ignore anything
handwritten
Problem 2 (50 points) A closed rigid tank contains of a two-phase liquid-vapor mixture of water, with a mass of 1 kg quality of x,-0.75, and a pressure of pi = 40 kPa (State 1 ). The system is heated in a constant- volume process till the pressure reaches p2-100 kPa (State 2) Sa) Determine the temperature, T, in "C, specific volume, Pi in m'/kg, and specific internal energy, ul, in kJ/kg at state 1; (12.5 points)...
2.41 A closed, rigid tank contains 10 lbn water at a pressure of 60 psia and a quality of 0.92. The water is heated until its pressure has increased to 120 psia. Calculate the following quantities: (a) the mass of liquid water in the tank at the initial state (b) the mass of the water vapor in the tank at the initial state (c) the initial temperature of the water in the tank (d) the volume of the tank (e)...
90 Chapter 2 PROPERTIES OF SUBSTANCES for all Pages Due 03/19/2020 start b. x=0.2, P = 100 kPa C C c. P-2 MPa, T = 400°C 2-41) Calculate the mass of water contained in a 0.6-mº vessel under the following conditions: a. 100 kPa, 150°C b. 300 kPa, 600°C c. 50 kPa, 81°C d. 400 kPa, saturated vapor e. 400 kPa, saturated liquid f. At the critical state 2-42. Determine the internal energy of H.O at 10 MPa and 450°C....
Draw a T-v diagram of a pure substance including the liquid, vapor, and liquid/vapor region. Using this diagram, explain what happens if a saturated liquid is heated (such that the temperature rises) in a rigid (constant volume) container. Using the same diagram, explain what happens when a saturated vapor is heated (such that the temperature rises) in a rigid container.
1. A saturated water liquid-vapor mixture with a total mass of 1.3 kg is contained in a piston-cylinder assembly, with the piston initially placed so that the volume of the mix- ture is 1.5 m. The initial temperature of the mixture is 30°C. The piston is then pushed inward until the volume is halved, and the container is heated until the pressure is 400 kPa. Determine Sherleader 306 V Tup V 400 kPa (a) the quality of the mixture for...
Homework 2 Problem 1: A piston-cylinder device initially contains 0.35-kg steam at 3.5 MPa, superheated by 7.4 C. Now the stream loses heat to the surroundings and the piston moves down, hitting a set of stops at which point the cylinder contains saturated liquid water. The cooling continues until the cylinder contains water at 200C. Determine (a) the final pressure and the quality (if mixture), (b) the boundary work, (c) the amount of heat transfer when the piston first hits...
quality x=0.5 indicates a liquid/vapor mix.
A piston cylinder device contains V-0 2 m3 of water at P 140 kPa and a quality of x/=0.5. The cross- sectional area of the piston is A-0.2 m2 and is restrained by a linear spring with spring constant K-52 kN/m Heat is added to the water until the volume expands to V2= 0.4 m3 (a) Determine the mass of water and the final pressure P2 (b) Fill in all other missing properties in...
