A sealed rigid tank contains 5.0 kg of water (liquid plus vapor) at 100 oC with a quality of 30.375%. Using the Thermodynamic Tables that accompany the textbook and the relationship between quality and other thermodynamic properties:

Calculate the specific volume of the water.
Determine the mass of water in the vapor phase.
Determine the saturation pressure and temperature of this water if it had the specific volume calculated in part (a) and a quality of 100%.
Determine the amount of heat transfer required to completely condense the saturated vapor determined in part (c) into a saturated liquid.

science physics

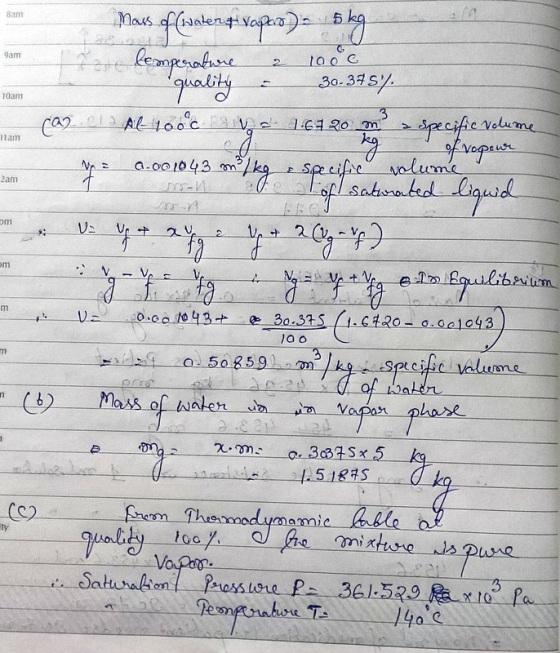

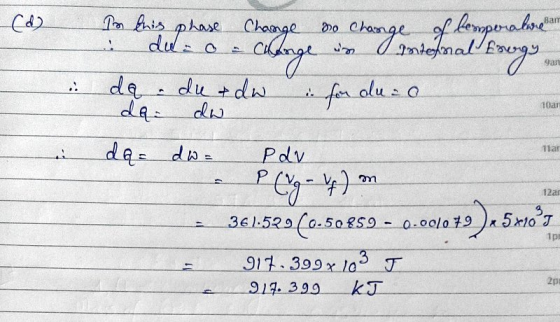

Answer 1

Answer #1

Answer 2
