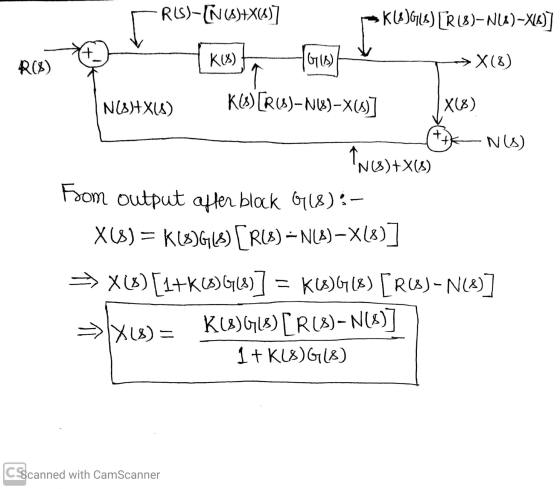

![ROS) X(8) + RUS)-IN ()+X()] KU)G(8) (RUB)-NU)-X6)] K() Gist → X(8) N(S)+x6s) KO[RUS)-NU)-X)] ENS) TNCs)+x60) From output afte](http://img.homeworklib.com/questions/a158ee90-05c4-11ec-a2a8-ffef0d3dfff4.png?x-oss-process=image/resize,w_560)

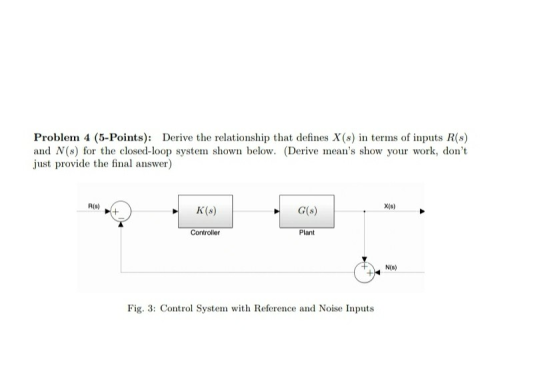

Problem 4 (5-Points): Derive the relationship that defines X(s) in terms of inputs R(s) and N(s)...
