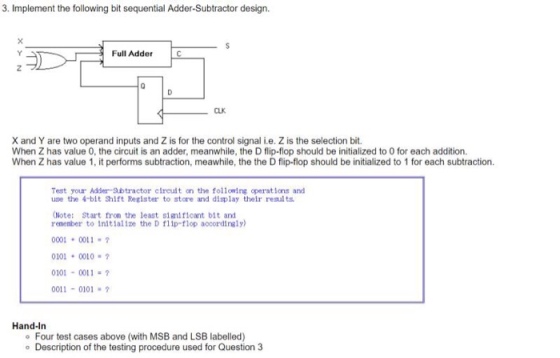

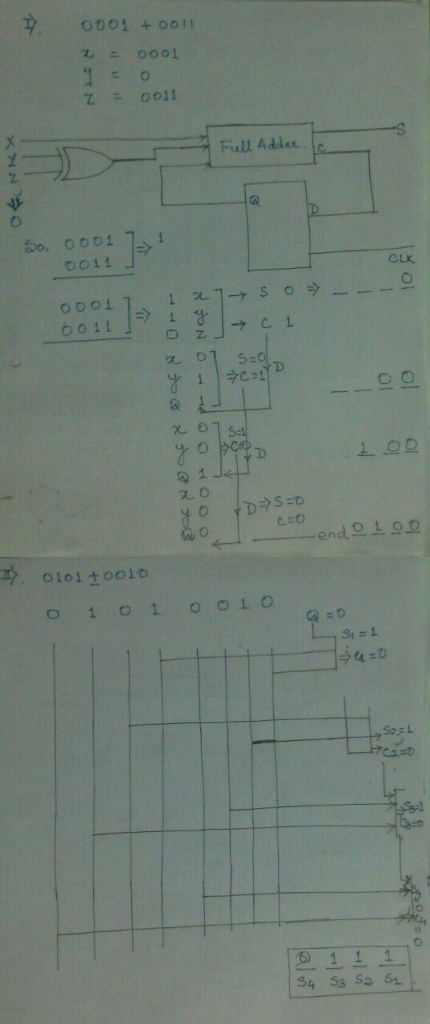

Implement the following bit sequential Adder-Subtractor design. X and Y are two operand inputs and Z...
Construct the 8-bit ripple-carry adder/subtractor for signed integers. Negative numbers are in the 2's complement form. The circuit has inputs X(7:0), Y(7:0), CO, M and outputs S(7:0), carry-out of MSB C8, OFL (OFL 1 when it occurs). The circuit should perform addition and subtraction of 8-bit signed numbers 2. with M-1 and M-0, respectively. a) Obtain the schematic for the 8-bit adder/subtractor with two 4-bit adder/subtractors from problem 1 as building blocks. X, Y, A, B, S can be shown...
1 Simulations to verify a 4-bit Register Simulate and verify a 4-bit Register using behavioral VHDL code in ModelSim. Recall that sequential circuits depend on both present and past state. Sequential circuits are in contrast to combinational circuits, which depend on input values from only the present state. Fur- thermore, recall that a flip-flop is a fundamental circuit used to create more complex sequential circuits. A register is an array of storage components, such as flip-flops. For example, a 4-bit...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit data inputs (A and B), a control line (add /sub), a 4-bit sum output (S), a carry-out bit (Cout), and an overflow flag. You need two VHDL files (fulladd.vhd) and (hybrid.vhd) to implement the design. VHDL code, fulladd.vhd, will implement a single-bit full adder. The VHDL file, hybrid.vhd, will create four instances of the single-bit full adder. Four XOR gates will be needed to...
A sequential circuit has one flip-flop Q, two inputs x and y, and one output. It consists of a full-adder circuit connected to a D flip-flop, as shown in Figure 1 as follows. For the sequential circuit derive (or draw) the,A) state equation B) state table C) state diagram
Introduction: This experiment studies the design of an 8-bit adder/subtractor circuit using VHDL capture. The experiment investigates the implementation of addition and subtraction operations with circuits. This lab uses the virtual simulation environment to validate the design practically in the FPGA board. Equipment: • This experiment requires Quartus Prime and the Intel's DE2-115 FPGA board. • All students should have the Intel QP and ModelSim-Intel-Starter-Edition softwares installed in personal computers. • VPN connection to UNB Network and remote desktop software...
Design a sequential circuit whose output Z becomes 1 when the pattern "01101" is found at 1-bit input X under the following conditions. (1) Use a D flip-flop for the flip-flop used as a Mealy machine (2) Use a RS flip-flop for the flip-flop used as a Moore machine
Design a 4 bit sequential circuit that can either count up or perform a circular left shift operation. You have to accept one input from the user, which decides if the counter is counting down or shifting. Note that the circuit should be able to change the operation from counting down and shifting without skipping any numbers. You can use at most 4 flip flops in the circuit. For example, the user can choose to count up from 0 to...
Design a sequential system
that has one synchronous input bit stream x and one output z, with
the following functionality and also follows the design
constrains.
Design Specifications: Design a sequential system that has one synchronous input bit stream X and one output Z, with the following functionality 1) We look at every fourth-input-bit, while the other input bits are "don't cares". when three "consecutives" fourth-bits form the sequences 110 or 000 the system should output Z = 1, meaning...
A Moore sequential circuit Y has two inputs (Xi and X2) and one output (Z). Z begins at 0. It becomes 1 when X1 = 1 and X2 = 1 either concurrently, or one after the other (in either order). Z returns to zero when X1= X2 = 0. The following input and output sequences should help you understand the requirements: X1= 01001000110110 X2 = 00110011000100 Z = (0) 00111000110110 (Hint: Y has 4 states and you may consider defining the 4 states with...
Just need the code for the
random counter,Thanks
Objective: In this lab, we will learn how we can design sequential circuits using behavioral modelling, and implementing the design in FPGA. Problem: Design a random counter with the following counting sequence: Counting Sequence: 04 2 9 168573 Design Description: The counter has one clock (Clock), one reset (Reset), and one move left or right control signal (L/R) as input. The counter also has one 4bit output O and one 2bit output...
