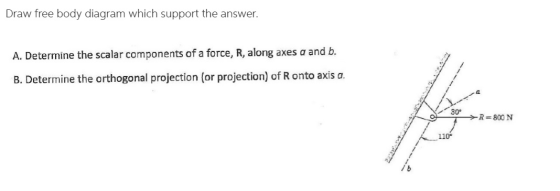

Draw free body diagram which support the answer. Determine the scalar components of a force, R,...

Question

Question

Draw free body diagram which support the answer.

science physics

Answer 1

Answer #1

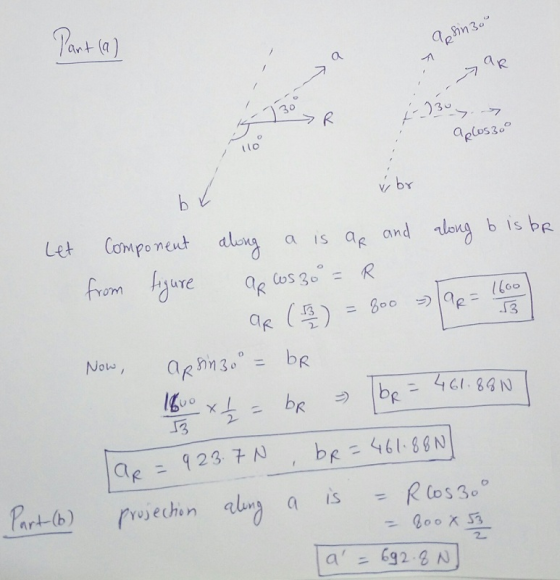

ant (a tlo Let Compe meut a Is aand b is be l Loo 13

Answer 2

Similar Homework Help Questions

Question 3:: Draw the free body diagram and calculate the reactions. Determine the internal normal force,...

Question 3:: Draw the free body diagram and calculate the reactions. Determine the internal normal force, shear force, and moments at points C. Point A is a cantilever support. Type your answers and intermediate calculations on the screen on the blackboard. tokw rrm 6
. A 25-mm diameter steel shaft is loaded by a 1000 N force as shown. Determine (a) the free body diagram of the shaft and reaction loading at the support, (b) the stresses at A (top surface) and d...

. A 25-mm diameter steel shaft is loaded by a 1000 N force as shown. Determine (a) the free body diagram of the shaft and reaction loading at the support, (b) the stresses at A (top surface) and draw the stress element at A, and (c) the stresses at B (side surface) and draw the stress element at B. 200 mm 100 1000 N . A 25-mm diameter steel shaft is loaded by a 1000 N force as shown. Determine...
Draw the free-body diagram of the member ABC, which is supported by a pin at A...

Draw the free-body diagram of the member ABC, which is supported by a pin at A and a horizontal short link BD. Neglect the weight of ABC and determine support reactions at A and B. 0.5 m 30° 50 kg

A) Draw the free body diagram. Pick a set of axis and justify them. B) Draw...

A) Draw the free body diagram. Pick a set of axis and justify them. B) Draw another picture where you show forces only along the axes (either the foree their components, if they are acting at an angle) C)Write Newton's laws and explain the steps b. What is the teisill 30. 1 th A 500 kg piano is being lowered into position by a crane while two people steady it with ropes pulling to the sides. Bob's rope pulls to...
draw free body diagrams and answer questions please Draw the free body diagram for the bob...

draw free body diagrams and answer questions please Draw the free body diagram for the bob (note that the spring is not attached at this time): bobt Equilibrium Marker 2. How does spinning the bob faster affect the period (time required for 1 full revolution)? The period increases. It takes more for the bob to go around once. The period stays the same. The period decreases. It takes less time for the bob to go around once. to the centripetal...
Date: Draw free body diagram and write equilibrium equation needed for determining the reaction force at...

Date: Draw free body diagram and write equilibrium equation needed for determining the reaction force at the point B. A is a hinge support and B is a roller support. C is the rigió connection between two members. (25 I. points) 10 5 10

Problem 5.76 Determine the components of reaction force at the support A using scalar notation. Express...

Problem 5.76 Determine the components of reaction force at the support A using scalar notation. Express your answers using three significant figures separated by a commas. The member is supported by a pin at A and cable BC. Suppose that 2.5 m and the cylinder has a mass of 50 kg. (Figure 1) Submit Request Answer Figure 1 of 1 Part C Determine the components of moment of reaction at the support A Express your answers using three significant figures...
draw the free body diagram and determine the reactions

draw the free body diagram and determine the reactions
Draw free body diagrams and determine all support reactions (magnitude, units, and direction) and force in...

Draw free body diagrams and determine all support reactions (magnitude, units, and direction) and force in cable CB. For RISA-2D, consider the cable as a member but release both ends. 2 k/ft8 kips 10 ft 6 ft 4 ft

a. Draw a free-body diagram for the beam shown above and derive expressions for the support...

a. Draw a free-body diagram for the beam shown above and derive expressions for the support reactions at A and B b. Draw internal force (shear and bending moment) diagrams. c. If a = 10 ft and M0 = 200 ft-lb, use the dimensions of the beam cross-section, provided on the previous page, to compute the maximum flexural and shear stresses on the beam cross-section. d. If the allowable bending stress is 925 psi and the allowable shear stress is...
