Find Z parallel, Zin and Transfer Function when R = 0.7, C = 0.1, L =...

Question

Question

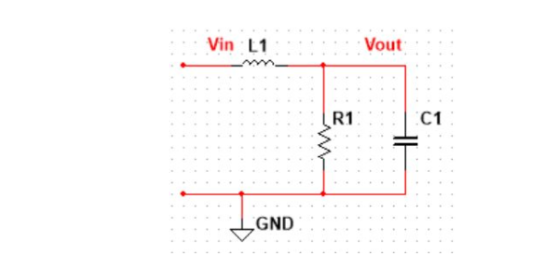

Vin 11 Vout GND Find Z parallel, Zin and Transfer Function when R = 0.7, C = 0.1, L = 10.

Thank You

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

Problem 4: For the following RLC circuit, R-1.01 kQ, 100 mH and C-0.1 μF. 1. Find...

Problem 4: For the following RLC circuit, R-1.01 kQ, 100 mH and C-0.1 μF. 1. Find the transfer function H(jo) = Vo(jo)Vi(jo) 2. Find the gain of the transfer function | H(o) 3. Determin 4. Find the phase Ф(c) of the transfer function 5. Find Vo(t) if Vi(t) 100 cos(102 t) +60 cos (101 t) + 10 cos(106t) e the type of the filter. b) c) RVout Lo VoutVin Vin Vin Vin Vout Vout
We want to formulate the transfer function Vout/Vin and find out if it is low pass...

We want to formulate the transfer function Vout/Vin and find out if it is low pass or high pass. Which answer choice is correct? We want to formulate the transfer function VoUT(S)/VIN(s) and find out whether it is a low pa correct? ○ vout(s)/VIN(S)-(SUR) / (1 +SUR) and lowpass O VOUTtS)WIN(S)- 1/ (1+SL/R) and low pass 0 vout(s)/VIN(S)-1/ (1+5L/R) and high pass O VouT(S)NIN(S) (SUR)/ (1+s/R) and high pass
Question 1 : [20 points) For the circuit below: R C = + + Vin L...

Question 1 : [20 points) For the circuit below: R C = + + Vin L Vout O Given that: R= 241, ZŁ= 88 N and Zc = N. Answer the following a. Calculate the input Admittance Yin(s) =1/ Zin(s b. Consider Yin(s) as the system's transfer function, calculate the following: (6 points) (10 points) OZOZ ISSOTO 1. Wp: 2. Bw: 3. W1 and 22: 4. Hm: C. Draw the second order respo on the graph below (show W1,W2, HM...

The transfer function of the Op-Amp in the figure shown is: * (2 Points) L S0002...

The transfer function of the Op-Amp in the figure shown is: * (2 Points) L S0002 R HH Vin(t) + + Vout(t) = 5
transfer function ? leave in terms of R and C ues given for the resistors and...

transfer function ? leave in terms of R and C ues given for the resistors and capacitors. R3 Vin 10kg R4 Vout 1.5kg C1 R1 HAW 1nF 1kg R2 1kg Rz
Please explain everything on how you got the slopes! Write out all KCL equations if necessary! Thank you! Problem 2: Find and plot the transfer function Vout vs. Vin for -5<Vin<5V, assuming FBV...

Please explain everything on how you got the slopes! Write out all KCL equations if necessary! Thank you! Problem 2: Find and plot the transfer function Vout vs. Vin for -5<Vin<5V, assuming FBV 0. (20 pts) D1 2V Vout TVin D2 Problem 2: Find and plot the transfer function Vout vs. Vin for -5

Problem 5: (20 points) Given the following circuit VIN L Vout R a) Write the loop...

Problem 5: (20 points) Given the following circuit VIN L Vout R a) Write the loop equation for the circuit, and then find the transfer function Vout(s) H(S) = Express H(s) so that the coefficient of the s in the denominator is 1. Vin(s) b) If Vin(t) is 20u(t), find out(t). c) If Vin(t) is 20u(t) find the final value using the final value theorem (show your work), d) Assume (R/L) = 10, if the input is Vin(t) = 100...
For the circuit shown below, 1) Find a relationship between L & R, and C &...

For the circuit shown below, 1) Find a relationship between L & R, and C & R, such that the impedance looking into the network Zin(s) = R. Find the frequency domain transfer function from the input to each output, what is the function performed by each arm? 2) ol in
Question 1: For the circuit below: R С MH + + Vin L Vout Given that:...

Question 1: For the circuit below: R С MH + + Vin L Vout Given that: R= 151, ZŁ= 35 2 and Zc = Answer the following questions: a. Calculate the input Admittance Yin(s) =1/ Zin(s) b. Consider Yin(s) as the system's transfer function, calculate the following: 1. Wp: 2. Bw: 3. W1 and W2: 4. Hm: C. Draw the second order response on the graph below (show W1, W2, HM values): |(200) DRESSE

A digital filter has the transfer function H(z) = ? -0.2 (2) Z(z - 0.7) a....

A digital filter has the transfer function H(z) = ? -0.2 (2) Z(z - 0.7) a. Is the system stable? b. Find the output y[n] for the filter if the input is x[n] = (0.9)"u[n].
