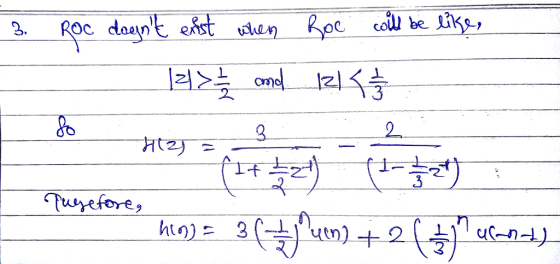

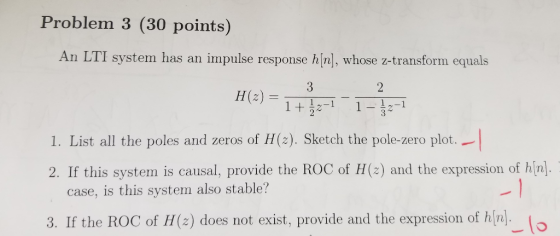

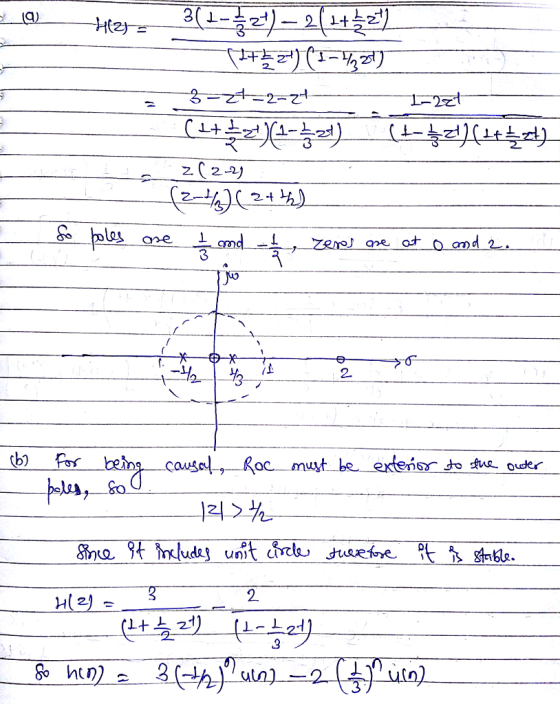

![Problem 3 (30 points) An LTI system has an impulse response hin], whose z-transform equals 1-1 1. List all the poles and zeros of H(2). Sketch the pole-zero plot.. 2. If this system is causal, provide the ROC of H(2) and the expression of hin. case, is this system also stable? 3. If the ROC of H(z) does not exist, provide and the expression of hn.](http://img.homeworklib.com/questions/778111d0-091a-11ec-8c5d-7131d4001465.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
Problem 3 (30 points) An LTI system has an impulse response hin], whose z-transform equals 1-1...
6. [10!] An LTI system has an impulse response hin] for which the z-transform is Homework#6,...
6. [10!] An LTI system has an impulse response hin] for which the z-transform is Homework#6, Ve216 Spring 2018 ue (a) [5] Plot the pole-zero pattern for H(z). (b) [5!] Using the fact that signals of the form 2" are eigenfunctions of LTI systems, determin the system output for all n if the input r[n] is
Please solve the following with full steps. 2. Given the following z-transform of the impulse response h [n], of a causal LTI system Ti H1 (z) = (,-1)(z-0.5) (a) Find hin (b) Verify the first three no...
Please solve the following
with full steps.
2. Given the following z-transform of the impulse response h [n], of a causal LTI system Ti H1 (z) = (,-1)(z-0.5) (a) Find hin (b) Verify the first three non-zero values of hi[n] using long division. (c) Find the z transform Hs(z) of hs[n]-2"hi[n], and specify the ROC. (d) Find thez transform H4() of han+n -1], and specify the ROC. e) Find the impulse response, hs[n], of the system Ts, which is the...
1. A linear time-invariant system hn is characterized by the following z transform function 3-42-1 1-3.5+1.5-2...
1. A linear time-invariant system hn is characterized by the following z transform function 3-42-1 1-3.5+1.5-2 (a) Calculate the poles and zeros manually. Plot the poles and zeros using Matlab. Does Matlab result agree with your calculation? (b) If the system is stable, specify the ROC of H(z) and determine hn (c) If the system is causal, specify the ROC of H(z) and determine hn
A continuous-time LTI system has unit impulse response h(t). The Laplace transform of h(t), also called...
A continuous-time LTI system has unit impulse response h(t). The
Laplace transform of h(t), also called the “transfer function” of
the LTI system, is
.
For each of the following cases, determine the region of
convergence (ROC) for H(s) and the corresponding h(t), and
determine whether the Fourier transform of h(t) exists.
(a) The LTI system is causal but not stable.
(b) The LTI system is stable but not causal.
(c) The LTI system is neither stable nor causal
8...
A discrete-time LTI system has the system function H(z) given below: 2 H(z (a) Sketch the...
A discrete-time LTI system has the system function H(z) given below: 2 H(z (a) Sketch the pole-zero plot for this system. How many possible (ROCs) are there for H(z). List the possible ROCs and indicate what type of sequence (left-sided, right-sided, two-sided, finite-length) they correspond to (b) Which ROC (or ROCs) correspond to a stable system? Why? (c) Which ROC (or ROCs) correspond to a causal system? Why? (d) Write a difference equation that relates the input to the output...
1. A discrete-time LTI system has the system function H(z) given below: H(2)1 2 (e) Determine the impulse response hin] associated with the stable system defined by this system function. (f) Make a c...
1. A discrete-time LTI system has the system function H(z) given below: H(2)1 2 (e) Determine the impulse response hin] associated with the stable system defined by this system function. (f) Make a careful sketch of the frequency response magnitude, i.е., IH(ew), of this system for lwl S T. Label your sketch!
1. A discrete-time LTI system has the system function H(z) given below: H(2)1 2 (e) Determine the impulse response hin] associated with the stable system defined by this...
1. An LTI system has an impulse response h[n] for which thez transform is a. Plot...
1. An LTI system has an impulse response h[n] for which thez transform is a. Plot the pole-zero pattern for H(z). b. Using the fact that signals of the form z are eigenfunctions of LTI systems, determine the system output for all n if the input x [n] is given by 72 I3(2)
A discrete-time LTI system has the system function H(z) given below:
A discrete-time LTI system has the system function \(H(z)\) given below:$$ H(z)=\frac{z^{2}}{z^{2}-\frac{1}{4}} $$(a) Sketch the pole-zero plot for this system. How many possible regions of convergence (ROCs) are there for \(H(z)\). List the possible ROCs and indicate what type of sequence (left-sided, right-sided, two-sided, finite-length) they correspond to.(b) Which ROC (or ROCs) correspond to a stable system? Why?(c) Which ROC (or ROCs) correspond to a causal system? Why?(d) Write a difference equation that relates the input to the output of...
5. The z transform is a very useful tool for studying difference equations. Often difference and ...
5. The z transform is a very useful tool for studying difference equations. Often difference and differential equations are used to describe causal systems and only the causal solution is of interest. This is the "initial condition" problem of a differential equations course. But both difference and differential equations describe more than just the causal system. For instance, "backwards" solutions and "two point boundary value" solutions. One way in which to think about the problem is the ROC of the...
Problem #1. Topics: Z Transform Find the Z transform of: x[n]=-(0.9 )n-2u-n+5] X(Z) Problem #2. T...
Problem #1. Topics: Z Transform Find the Z transform of: x[n]=-(0.9 )n-2u-n+5] X(Z) Problem #2. Topics: Filter Design, Effective Time Constant Design a causal 2nd order, normalized, stable Peak Filter centered at fo 1000Hz. Use only two conjugate poles and two zeros at the origin. The system is to be sampled at Fs- 8000Hz. The duration of the transient should be as close as possible to teft 7.5 ms. The transient is assumed to end when the largest pole elevated...
6. [10!] An LTI system has an impulse response hin] for which the z-transform is Homework#6, Ve216 Spring 2018 ue (a) [5] Plot the pole-zero pattern for H(z). (b) [5!] Using the fact that signals of the form 2" are eigenfunctions of LTI systems, determin the system output for all n if the input r[n] is
Please solve the following
with full steps.
2. Given the following z-transform of the impulse response h [n], of a causal LTI system Ti H1 (z) = (,-1)(z-0.5) (a) Find hin (b) Verify the first three non-zero values of hi[n] using long division. (c) Find the z transform Hs(z) of hs[n]-2"hi[n], and specify the ROC. (d) Find thez transform H4() of han+n -1], and specify the ROC. e) Find the impulse response, hs[n], of the system Ts, which is the...
1. A linear time-invariant system hn is characterized by the following z transform function 3-42-1 1-3.5+1.5-2 (a) Calculate the poles and zeros manually. Plot the poles and zeros using Matlab. Does Matlab result agree with your calculation? (b) If the system is stable, specify the ROC of H(z) and determine hn (c) If the system is causal, specify the ROC of H(z) and determine hn
A continuous-time LTI system has unit impulse response h(t). The
Laplace transform of h(t), also called the “transfer function” of
the LTI system, is
.
For each of the following cases, determine the region of
convergence (ROC) for H(s) and the corresponding h(t), and
determine whether the Fourier transform of h(t) exists.
(a) The LTI system is causal but not stable.
(b) The LTI system is stable but not causal.
(c) The LTI system is neither stable nor causal
8...
A discrete-time LTI system has the system function H(z) given below: 2 H(z (a) Sketch the pole-zero plot for this system. How many possible (ROCs) are there for H(z). List the possible ROCs and indicate what type of sequence (left-sided, right-sided, two-sided, finite-length) they correspond to (b) Which ROC (or ROCs) correspond to a stable system? Why? (c) Which ROC (or ROCs) correspond to a causal system? Why? (d) Write a difference equation that relates the input to the output...
1. A discrete-time LTI system has the system function H(z) given below: H(2)1 2 (e) Determine the impulse response hin] associated with the stable system defined by this system function. (f) Make a careful sketch of the frequency response magnitude, i.е., IH(ew), of this system for lwl S T. Label your sketch!
1. A discrete-time LTI system has the system function H(z) given below: H(2)1 2 (e) Determine the impulse response hin] associated with the stable system defined by this...
1. An LTI system has an impulse response h[n] for which thez transform is a. Plot the pole-zero pattern for H(z). b. Using the fact that signals of the form z are eigenfunctions of LTI systems, determine the system output for all n if the input x [n] is given by 72 I3(2)
A discrete-time LTI system has the system function \(H(z)\) given below:$$ H(z)=\frac{z^{2}}{z^{2}-\frac{1}{4}} $$(a) Sketch the pole-zero plot for this system. How many possible regions of convergence (ROCs) are there for \(H(z)\). List the possible ROCs and indicate what type of sequence (left-sided, right-sided, two-sided, finite-length) they correspond to.(b) Which ROC (or ROCs) correspond to a stable system? Why?(c) Which ROC (or ROCs) correspond to a causal system? Why?(d) Write a difference equation that relates the input to the output of...
5. The z transform is a very useful tool for studying difference equations. Often difference and differential equations are used to describe causal systems and only the causal solution is of interest. This is the "initial condition" problem of a differential equations course. But both difference and differential equations describe more than just the causal system. For instance, "backwards" solutions and "two point boundary value" solutions. One way in which to think about the problem is the ROC of the...
Problem #1. Topics: Z Transform Find the Z transform of: x[n]=-(0.9 )n-2u-n+5] X(Z) Problem #2. Topics: Filter Design, Effective Time Constant Design a causal 2nd order, normalized, stable Peak Filter centered at fo 1000Hz. Use only two conjugate poles and two zeros at the origin. The system is to be sampled at Fs- 8000Hz. The duration of the transient should be as close as possible to teft 7.5 ms. The transient is assumed to end when the largest pole elevated...
