Question

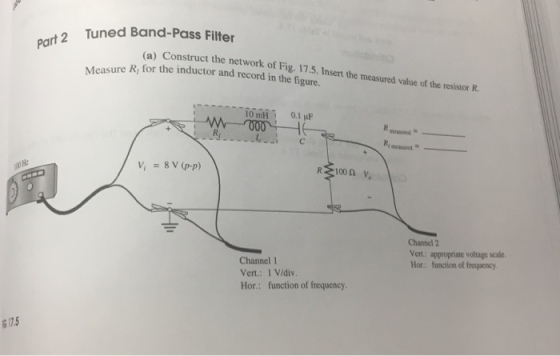

rt2 Tuned Band-Pass Filter Ca) Construct the network of Fig. 17.5. Insert the measured value of the resisor R. re Ri for the inductor and record in the figure. Ri measured Ha Channel 2 Vert: appropriate voltage scale Hor: function of frequency Channel 1 Vert: 1 Vidiv Hor: function of frequency 7.5

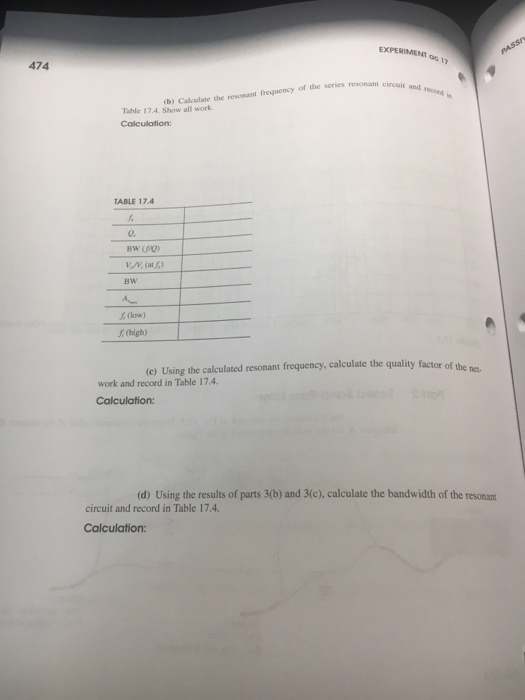

media%2Fd79%2Fd797239f-b50e-401e-95cf-3b

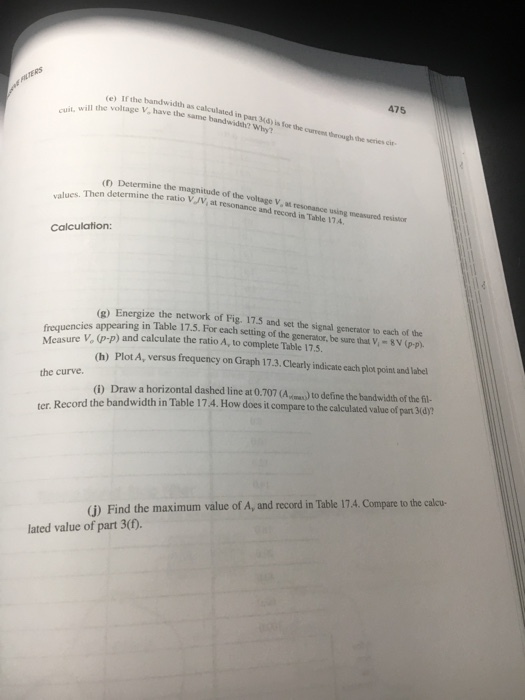

media%2Fcc0%2Fcc0b628d-688b-4d02-8319-a6
0 0
Add a comment Improve this question Transcribed image text
Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)


All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
rt2 Tuned Band-Pass Filter Ca) Construct the network of Fig. 17.5. Insert the measured value of...
