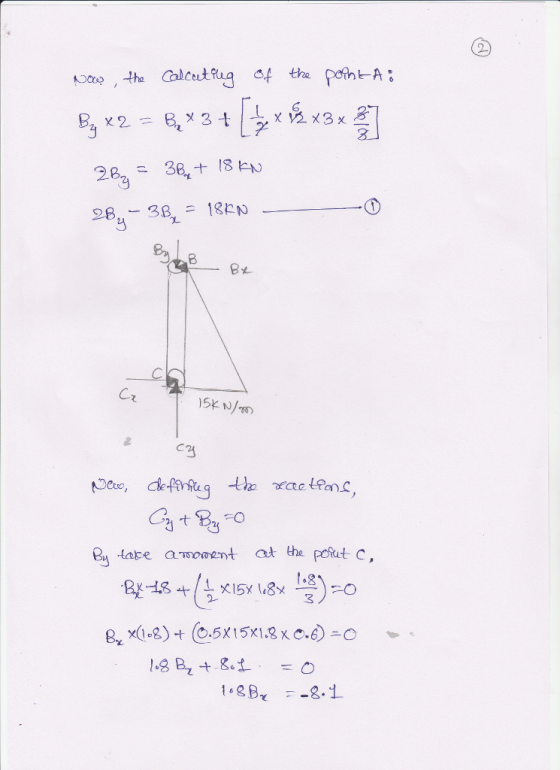

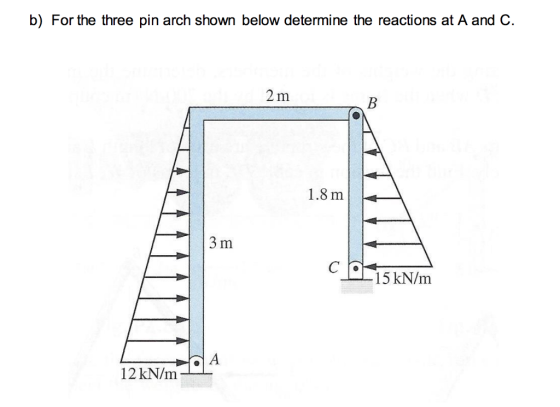

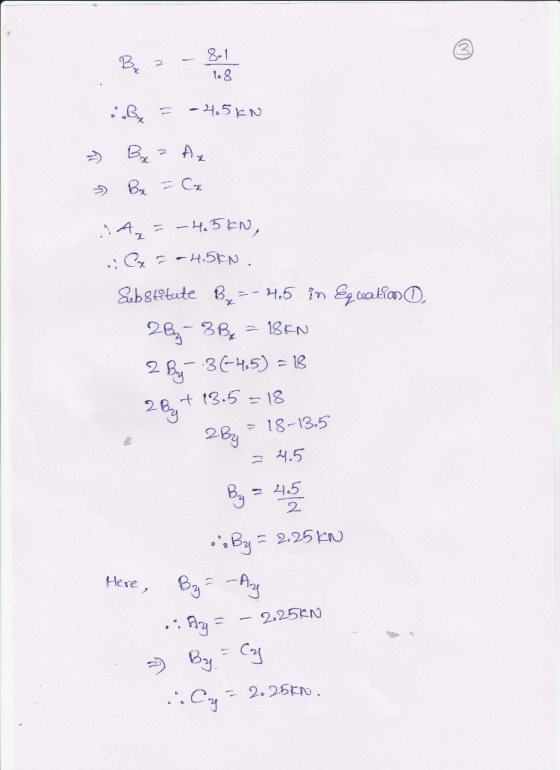

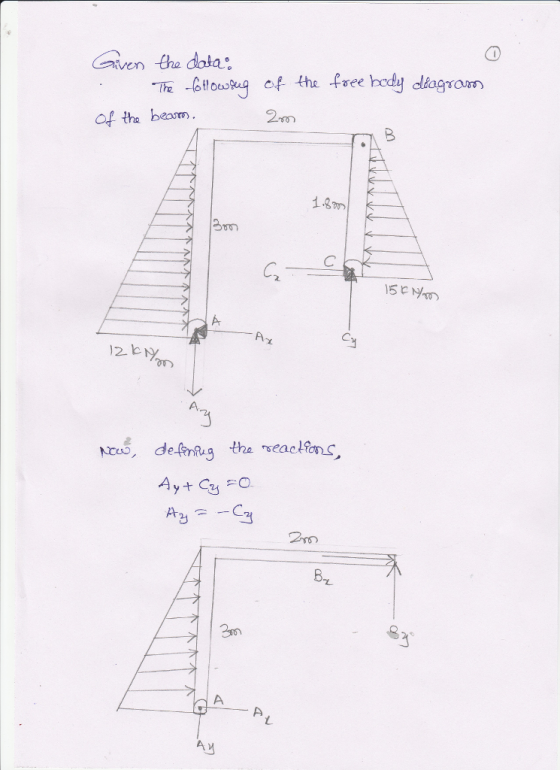

b) For the three pin arch shown below determine the reactions at A and C. 2...
Analysis of structure Determine the magnitude of the reactions at A, pin at B and C....
Analysis of structure
Determine the magnitude of the reactions at A, pin at B and C. Neglect the weight of the frame. 2m B 1.8 m 3 m C 15 kN/m 12 kN/m
Determine the reactions at the roller support B and the pin support A Determine the reactions...
Determine the reactions at the roller support B and the pin support
A
Determine the reactions at the roller support B and the pin support A 1 end 6 kN A-t 6 kN/m 3 m
See all photos + Add to For the three-hinged arch shown determine the reactions at hinges...
See all photos + Add to For the three-hinged arch shown determine the reactions at hinges A and C in newtons. (Assume that the +x-axis is to the right and the+y-axis is up along the page. Due to the nature of this submitted in WebAssign.) 1450 N 1875 N -8.66 m -8.66 m N magnitude direction ad N magnitude direction -SH N magnitude direction 1-Select magnitude N direction Select Determine the horizontal and vertical components of force that pin B...
For the beam shown below, determine (1) magnitude of the bending moment at the pin support...
For the beam shown below, determine (1) magnitude of the bending
moment at the pin support A; and (2)the magnitude of shear force at
the immediate right side of the pin support A.
For the beam shown below, determine (1) magnitude of the bending moment at the pin support A; and (2) the magnitude of shear force at the immediate right side of the pin support A. 2 kN/m 1.5 kN 30° 1.2 m 0.6 1.2 m 1.8 m 1.2...
4. Determine the reactions at A, B, and C of the following three pinned arch. 180kN...
4. Determine the reactions at A, B, and C of the following three pinned arch. 180kN 135kN Ax Bx 6.67m 6.67m 8m 8m By
a) Determine the x and y components of reaction at A. b) Determine the x and y components of reaction at B acting on the...
a) Determine the x and y components of
reaction at A.
b) Determine the x and y components of
reaction at B acting on the member
AB.
c) Determine the x and y components of
reaction at C.
Express your answers using three significant
figures.
Consider the three-hinged arch shown in (Figure 1). Assume A, B, and C are pin connected. Suppose that F1 = 13 kN and F2 6 kN 1 of 1 Figure B 4 mA 8 m...
Please indicate all solutions and equations legibly. Thank you 2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m 2-23. Determine...
Please indicate all solutions and equations legibly.
Thank you
2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m
2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m
Structural Analysis Homework Q.2: Determine the reactions at the supports A and Bofihe compound boarn. There is a pin a...
Structural Analysis Homework
Q.2: Determine the reactions at the supports A and Bofihe compound boarn. There is a pin ai C. 2 kN/m 6 m 4 m
Q.2: Determine the reactions at the supports A and Bofihe compound boarn. There is a pin ai C. 2 kN/m 6 m 4 m
1) Determine the reactions at the supports for the structures shown. The support at A is...
1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...
120 KN kN 60 kN 2 60 KN 60 KN 1. For the shown three-hinged 4 m arch and loads, determine the int...
120 KN kN 60 kN 2 60 KN 60 KN 1. For the shown three-hinged 4 m arch and loads, determine the internal forces (N.F., S.F., and B.M.) at section s-s 6 m 6 m 4 m 4 m 4 m 4m 4m 4m
120 KN kN 60 kN 2 60 KN 60 KN 1. For the shown three-hinged 4 m arch and loads, determine the internal forces (N.F., S.F., and B.M.) at section s-s 6 m 6 m 4...
Analysis of structure
Determine the magnitude of the reactions at A, pin at B and C. Neglect the weight of the frame. 2m B 1.8 m 3 m C 15 kN/m 12 kN/m
Determine the reactions at the roller support B and the pin support
A
Determine the reactions at the roller support B and the pin support A 1 end 6 kN A-t 6 kN/m 3 m
See all photos + Add to For the three-hinged arch shown determine the reactions at hinges A and C in newtons. (Assume that the +x-axis is to the right and the+y-axis is up along the page. Due to the nature of this submitted in WebAssign.) 1450 N 1875 N -8.66 m -8.66 m N magnitude direction ad N magnitude direction -SH N magnitude direction 1-Select magnitude N direction Select Determine the horizontal and vertical components of force that pin B...
For the beam shown below, determine (1) magnitude of the bending
moment at the pin support A; and (2)the magnitude of shear force at
the immediate right side of the pin support A.
For the beam shown below, determine (1) magnitude of the bending moment at the pin support A; and (2) the magnitude of shear force at the immediate right side of the pin support A. 2 kN/m 1.5 kN 30° 1.2 m 0.6 1.2 m 1.8 m 1.2...
4. Determine the reactions at A, B, and C of the following three pinned arch. 180kN 135kN Ax Bx 6.67m 6.67m 8m 8m By
a) Determine the x and y components of
reaction at A.
b) Determine the x and y components of
reaction at B acting on the member
AB.
c) Determine the x and y components of
reaction at C.
Express your answers using three significant
figures.
Consider the three-hinged arch shown in (Figure 1). Assume A, B, and C are pin connected. Suppose that F1 = 13 kN and F2 6 kN 1 of 1 Figure B 4 mA 8 m...
Please indicate all solutions and equations legibly.
Thank you
2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m
2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m
Structural Analysis Homework
Q.2: Determine the reactions at the supports A and Bofihe compound boarn. There is a pin ai C. 2 kN/m 6 m 4 m
Q.2: Determine the reactions at the supports A and Bofihe compound boarn. There is a pin ai C. 2 kN/m 6 m 4 m
1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...
120 KN kN 60 kN 2 60 KN 60 KN 1. For the shown three-hinged 4 m arch and loads, determine the internal forces (N.F., S.F., and B.M.) at section s-s 6 m 6 m 4 m 4 m 4 m 4m 4m 4m
120 KN kN 60 kN 2 60 KN 60 KN 1. For the shown three-hinged 4 m arch and loads, determine the internal forces (N.F., S.F., and B.M.) at section s-s 6 m 6 m 4...
