Problem 3.034 A closed, rigid tank is filled with water. Initially, the tank holds 1.0 lb of saturated vapor and 6.0 lb of saturated liquid, each at 212°F. The water is heated until the tank contains only saturated vapor. Kinetic and potential energy effects can be ignored. Determine the volume of the tank, in ft3, the temperature at the final state, in °F, and the heat transfer, in Btu. ? Step 1 KI Your answer is incorrect. Try again. Determine the volume of the tank, in ft3 13.843 ft3 the tolerance is +/-2%

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

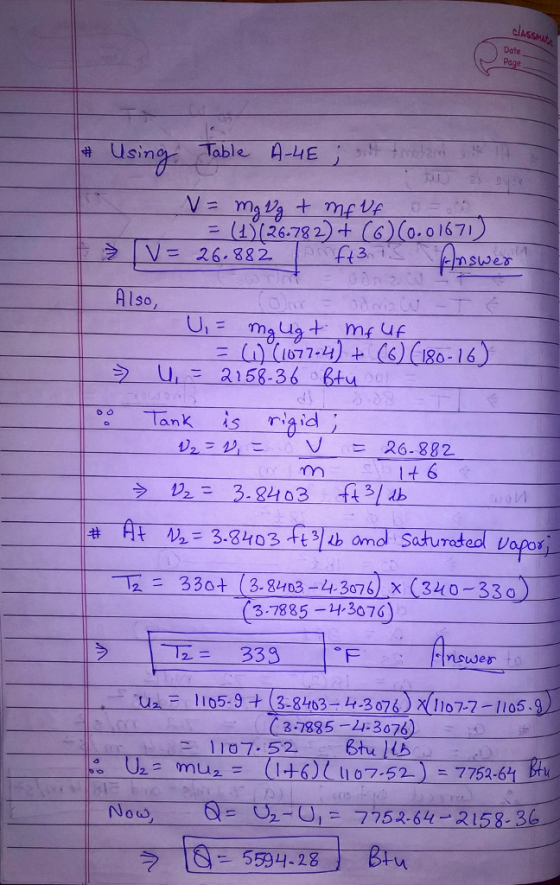

Answer #1

0 0
Add a comment
