Question

Create a UML diagram with 3 lines per class/interface including all constructors.

public class Point {
public double X, Y;

public Point()
{
this(0, 0);
}

public Point(double newX, double newY)
{
X = newX;
Y = newY;
}

public static double distance(Point A, Point B) {
return Math.sqrt(Math.pow(A.X-B.X, 2) + Math.pow(A.Y-B.Y, 2));
}

}

public interface Polygon {
public int getNumberOfSides();

public double getPerimeter();

public double getArea();

}

public abstract class Simple_polygon implements Polygon{
public Point vertices[];

public Simple_polygon(int n) {

if (n < 3) {

throw new IllegalArgumentException();

}

vertices = new Point[n];

}

public int getNumberOfSides() {

return vertices.length;

}

public boolean isEquilateral() {

double sideLength = -1;

for (int i = 1; i < vertices.length; i++) {

double side = vertices[i - 1].distance(vertices[i]);

if (sideLength == -1) {

sideLength = side;

} else if (side != sideLength) {

return false;

}

}
if (vertices[vertices.length - 1].distance(vertices[0]) != sideLength) {

return false;

}

return true;

}

}

public class Triangle extends Simple_polygon {

public Point[] vertices;
public Triangle(Point a, Point b, Point c) {

super();

vertices[0] = a;
vertices[1] = b;
vertices[2] = c;

}

public double getPerimeter() {

double side1 = vertices[0].distance(vertices[1]);

double side2 = vertices[1].distance(vertices[2]);

double side3 = vertices[2].distance(vertices[1]);

return side1 + side2 + side3;

}

public double getArea() {

double x1 = vertices[0].x;

double y1 = vertices[0].y;

double x2 = vertices[1].x;

double y2 = vertices[1].y;

double x3 = vertices[2].x;

double y3 = vertices[2].y;

double area = Math.abs((x1 * (y2 - y3) + x2 * (y3 - y1) + x3

* (y1 - y2)) / 2);

return area;

}

}
public class Quadrilateral extends Simple_polygon {

public Point[] vertices;
public Quadrilateral(Point a, Point b, Point c, Point d){

super();

vertices[0] = a;
vertices[1] = b;
vertices[2] = c;
vertices[3] = d;
}

public double getPerimeter() {

double side1 = vertices[0].distance(vertices[1]);

double side2 = vertices[1].distance(vertices[2]);

double side3 = vertices[2].distance(vertices[3]);

double side4 = vertices[3].distance(vertices[1]);

return side1 + side2 + side3 + side4;
}

public double getArea() {

double a = vertices[0].x;

double a2 = vertices[0].y;

double b = vertices[1].x;

double b2 = vertices[1].y;

double c = vertices[2].x;

double c2 = vertices[2].y;

double d = vertices[3].x;

double d2 = vertices[3].y;


double area = Math.abs(((a * (b2 - d2) + b * (d2 - a2) + d

* (a2 - b2)) / 2)) +
Math.abs(((b * (c2 - d2)) + (c * (d2 - b2)) +
(d * (b2 - c2))) / 2);


return area;

}
}

Answer 1

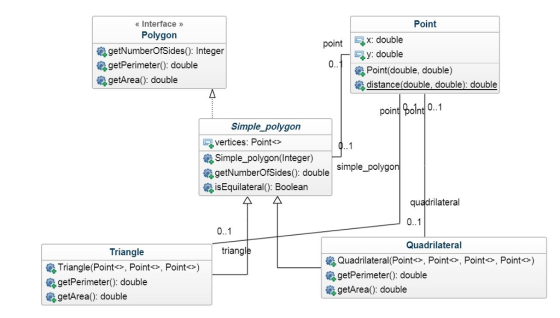

Below is the UML diagram of the given classes:
