Question

Design a general class GeometricObject can be used to model all geometric objects. This class contains the properties color and filled and their appropriate get and set methods. Assume that this class also contains toString() methods. The toString() method returns a string representation of the object.

Define the Triangle, Circle, and Rectangle classes that extend the GeometricObject class.

• The Triangle class inherits all accessible data fields and methods from the GeometricObject class.In addition, it has three double data fields named side1, side2, and side3 with default values 2.0 to denote three sides of the triangle. Also contains:
• A no-arg constructor that creates a default triangle.
• A constructor that creates a triangle with the specified side1, side2, and side3.
• The accessor methods for all three data fields.
• A method named getArea() that returns the area of this triangle.
• A method named getPerimeter() that returns the perimeter of this triangle.
• A method named toString() that returns a string description for the triangle implemented as follows:

return "Triangle: side1 = " + side1 + " side2 = " + side2 + " side3 = " + side3;

• The Circle class inherits all accessible data fields and methods from the GeometricObject class. In addition, it has a new data field, radius, and its associated get and set methods. The Circle class also contains the getArea(), getPerimeter(), and getDiameter() methods for returning the area, perimeter, and diameter of the circle.
• The Rectangle class inherits all accessible data fields and methods from the GeometricObject class. In addition, it has the data fields width and height and their associated get and set methods. It also contains the getArea() and getPerimeter() methods for returning the area and perimeter of the rectangle.

Design a Test class which creates objects of Triangle, Circle and Rectangle and invokes the methods on these objects. The toString() method is inherited from the GeometricObject class and is invoked from a Triangle object, Circle object and a Rectangle object.

Please take care at the input data. The input data have to be eligible (numeric values) and you have to verify the existence of objects ( for example : the width and height of rectangle have to be positive numbers).

If the input data is not correct , you have to ask the user to enter again the data

1. all sides have to be positive

2. for triangle you need to verify the Triangle ABC Inequality Theorem yields three inequalities:

AB + BC > CA

BC + CA > AB

CA + AB > BC

Answer 1

public class GeometricObject {
//properties of class
String color,filled;
public String getColor(){
return color;
}

public void setColor(String color) {
this.color = color;
}

public String getFilled() {
return filled;
}

//getter methods
public void setFilled(String filled) {
this.filled = filled;
}

//to string method
public String toString() {
return "Color="+color+",Filled="+filled;
}

}
-------------------------------

public class Triangle extends GeometricObject{
double side1,side2,side3;

public Triangle(double side1, double side2, double side3,String clr,String fill) {
this.side1 = side1;
this.side2 = side2;
this.side3 = side3;
super.color=clr;
super.filled=fill;
}
public String toString(){
return "Triangle:"+super.toString()+",Side1="+side1+",Side2="+side2+",Side3="+side3;
}
}

---------------------------------------------

public class Circle extends GeometricObject{
//property
double radius;
//constructor
public Circle(double radius,String clr,String fill) {
this.radius = radius;
super.color=clr;
super.filled=fill;
}
//getter & setter methods
public double getRadius() {
return radius;
}

public void setRadius(double radius) {
this.radius = radius;
}
//methods for calculating area, perimeter and diameter of circle
double getArea(){
return 22*radius*radius/7;
}
double getPerimeter(){
return 2*22*radius/7;
}
double getDiameter(){
return 2*radius;
}
//method to show the object content in string form
public String toString(){
return "Circle:"+super.toString()+",Area="+getArea()+",Perimeter="+getPerimeter()+",Diameter="+getDiameter();
}
}
-----------------------------------------------------

public class Rectangle extends GeometricObject{
//properties of object
double width,height;
//constructor
public Rectangle(double width, double height,String clr,String fill) {
this.width = width;
this.height = height;
super.color=clr;
super.filled=fill;
}
//getter and setter methods
public double getWidth() {
return width;
}

public void setWidth(double width) {
this.width = width;
}

public double getHeight() {
return height;
}

public void setHeight(double height) {
this.height = height;
}
//methods to calculate area and perimeter
double getArea(){
return width*height;
}
double getPerimeter(){
return 2*(width+height);
}
//method to show the object content in string form
public String toString(){
return "Rectangle:"+super.toString()+",Area="+getArea()+",Perimeter="+getPerimeter();
}
}
------------------------------------------------------------

//importing required classes
import java.util.Scanner;

public class GeometricObjectTest {
//main method definition
public static void main(String[] args) {
//creating stream to receive user input
Scanner input=new Scanner(System.in);
//variable
int choice;
System.out.print("1.Triangle 2.Circle 3.Rectangle Enter the shape choice=");
choice=input.nextInt();
//operating on the selected shape
switch(choice){
case 1:{
int side1,side2,side3;
String clr,fill;
do{
System.out.print("Enter the first side of triangle: ");
side1=input.nextInt();
System.out.print("Enter the second side of triangle: ");
side2=input.nextInt();
System.out.print("Enter the third side of triangle: ");
side3=input.nextInt();
System.out.print("Enter the color of triangle: ");
clr=input.next();
System.out.print("Is triangle filled?(true/false): ");
fill=input.next();

}while(side1<0||side2 < 0||side3<0);
Triangle tri=new Triangle(side1,side2,side3,clr,fill);
System.out.println(tri.toString());
break;
}
case 2:{
int r;
String clr,fill;
do{
System.out.print("Enter the radius of circlr: ");
r=input.nextInt();
System.out.print("Enter the color of circlr: ");
clr=input.next();
System.out.print("Is circle filled?(true/false): ");
fill=input.next();

}while(r<0);
Circle cir=new Circle(r, clr, fill);
System.out.println(cir.toString());
break;
}
case 3:{
int w,h;
String clr,fill;
do{
System.out.print("Enter the width of rectangle: ");
w=input.nextInt();
System.out.print("Enter the height of rectangle: ");
h=input.nextInt();
System.out.print("Enter the color of rectangle: ");
clr=input.next();
System.out.print("Is rectangle filled?(true/false): ");
fill=input.next();

}while(w<0||h<0);
Rectangle rec=new Rectangle(w, h, clr, fill);
System.out.println(rec.toString());
break;
}
}

}
}

-------------------------------------------------

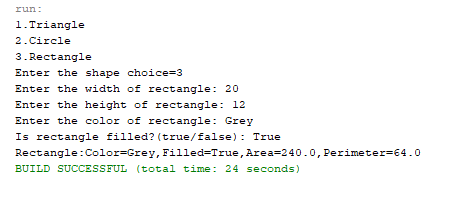

Output:
