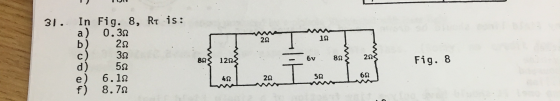

In Fig. 8, R_tau is: 0.3 Ohm 2 Ohm 3 Ohm 5 Ohm 6.1 Ohm 8.7...

Question

Question

In Fig. 8, R_tau is: 0.3 Ohm 2 Ohm 3 Ohm 5 Ohm

science physics

Answer 1

Answer #1

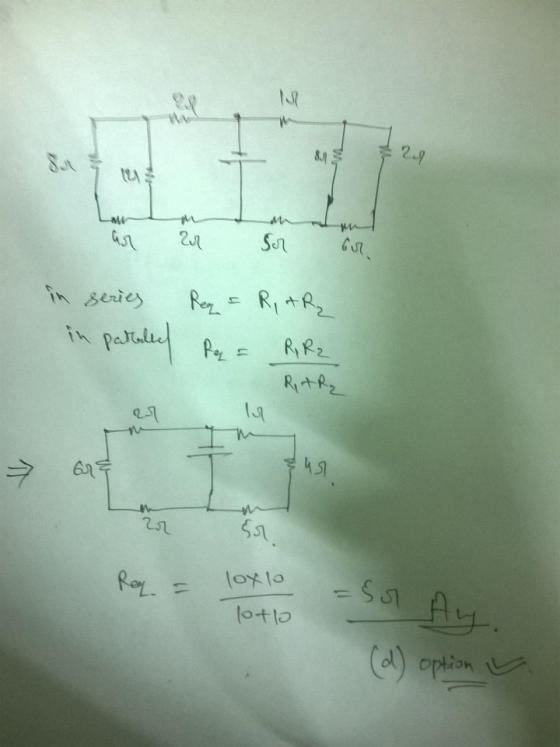

2 23 h seric pa hulle lu 2.1 51 otlo option

Answer 2

Similar Homework Help Questions

R_3 = 7 Ohm R_5 = 2 Ohm R_7 = 5 Ohm R_8 = 3 Ohm...

R_3 = 7 Ohm R_5 = 2 Ohm R_7 = 5 Ohm R_8 = 3 Ohm R_10 = 9 Ohm Calculate the current through the seven ohm resistor, R_7. Calculate the loop currents a) I_1 and b) I_2
Instructions: Unless otherwise stated, solve for the mesh currents in the following circuits 5. 3 Ohm...

Instructions: Unless otherwise stated, solve for the mesh currents in the following circuits 5. 3 Ohm 8 Ohm 2 Ohm 2 A 70 V 6 Ohm 2 Ohm 4 Ohm 6. 6 Ohm 10 Ohm 8 Ohm 7 A 8 V 6 V
I have 1 - 330 ohm resistance 5 - 220 ohm 3 - 2200 ohm 5...

I have 1 - 330 ohm resistance 5 - 220 ohm 3 - 2200 ohm 5 - 3300 ohm 5 - 16000 ohm I want to make two parallel circuit The Req for first one = 5000ohm The Req for second one = 4280 ohm I need the calculation

I have 5 - 330 ohm resistor 5 - 220 ohm 5 - 2200 ohm 5...

I have 5 - 330 ohm resistor 5 - 220 ohm 5 - 2200 ohm 5 - 3300 ohm 5 - 16000 ohm How can I make the circuit? I need the calculation Node 2 11.604 V Node 4 1.188 V Node 5 oV Node 1 Node 3 7.604 V 6.324 V AVー AV= - 18 V 1-0.0012A Name: Network: 1702 Bag ID:
Series-parallel R,?24 3 2 R124 Ohm R2 = 30 Ohm R3 20 Ohm 3 2.6 6...

Series-parallel R,?24 3 2 R124 Ohm R2 = 30 Ohm R3 20 Ohm 3 2.6 6 4 5 In the circuit above a) Calculate the total resistance of the circuit
A 2 ohm resistor, a 6 ohm resistor and a 8 ohms resistor are all connected...

A 2 ohm resistor, a 6 ohm resistor and a 8 ohms resistor are all connected in parallel to a 12V battery. What is the voltage drop across the 6 ohm resistor? _____ V

What value does the Ammeter (A) read in this circuit? 5 ohm 3 ohm wa 7...

What value does the Ammeter (A) read in this circuit? 5 ohm 3 ohm wa 7 ohm 15 ohm 1 ohm 2.68 A 3 ohm A. 40 ohm OB0.3 A 36 V O c. 1.67 A HA OD. 0.75 A
8.2. In the circuit of Fig. 8.7(a), assume (W/L)1-50/05, (W/L)2-100/05, Rp_2kΩ,and C2 C1. Neglect...

8.2. In the circuit of Fig. 8.7(a), assume (W/L)1-50/05, (W/L)2-100/05, Rp_2kΩ,and C2 C1. Neglecting channel-length modulation and body effect, determine the bias current of M1 and M2 such that the input resistance at low frequencies is equal to 50 Ω. RD out Vin 2 Rin 2 8.2. In the circuit of Fig. 8.7(a), assume (W/L)1-50/05, (W/L)2-100/05, Rp_2kΩ,and C2 C1. Neglecting channel-length modulation and body effect, determine the bias current of M1 and M2 such that the input resistance at low...
Find the quartile (Q1) of the numbers 5, 3, 6, 5, 4, 5, 2, 8, 6,...

Find the quartile (Q1) of the numbers 5, 3, 6, 5, 4, 5, 2, 8, 6, 5, 4, 8, 3, 4, 5, 4, 8, 2, 5, and 4. Select one: a. 2 b. 1.4 c C.1 d. 4 O e. 1.5 1.1.2 8.7

PLEASE DO NOT ANSWER UNLESS YOU ARE %100 SURE Fig. ACNodal2 In the circuit, Ri=6 Ohm,...

PLEASE DO NOT ANSWER UNLESS YOU ARE %100 SURE Fig. ACNodal2 In the circuit, Ri=6 Ohm, R2 = 9 Ohm, R3 = 4 Ohm, the reactances of inductors and capacitor are XL1=7 Ohm, XL2=3.5 Ohm, XCI=4.2 Ohm; voltage source amplitude and phase are 11 V and 0.12 rad. Using nodal analysis, find the following 1) The amplitude of the potential at the top lead of inductor L1. (Unit: V) 7.350 V Computer's answer now shown above. You are correct. Previous...
