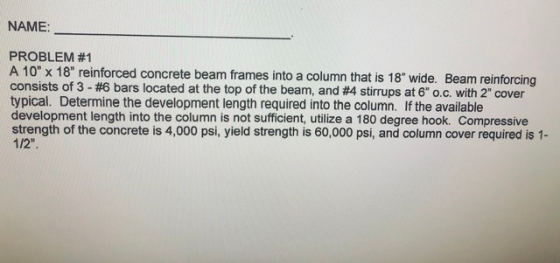

NAME: PROBLEM #1 A 10" X 18" reinforced concrete beam frames into a column that is...
Reinforced Concrete Design Please answer it with good write . Problem 1: The reinforced concrete cantilever beam shown is subjected to a concentrated load P- 2 kips, at its free end. Determine th...

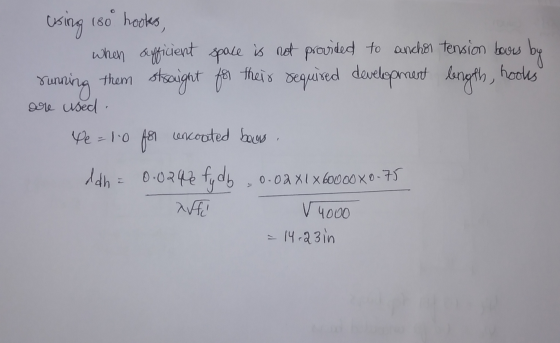

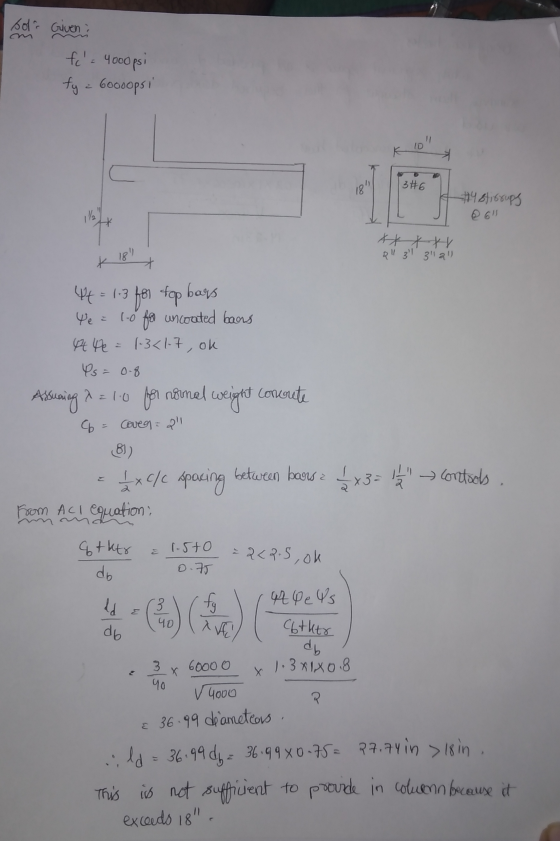

Reinforced Concrete Design
Please answer it with good write .
Problem 1: The reinforced concrete cantilever beam shown is subjected to a concentrated load P- 2 kips, at its free end. Determine the development length of the shown bars using the detailed and simplified methods for the following cases: a) straight bars b) 90 hooks c )180, hooks The column width is 22 inches. Concrete cover is measured from the concrete surface to the center of the reinforcement. fc 4...
Design a reinforced concrete beam that has a rectangular cross section with a width b =...
Design a reinforced concrete beam that has a rectangular cross section with a width b = 24 in. The depth h is limited by architectural reasons to 16 in. It has to carry a factored moment Mu = 360 kip- ft. including the self-weight. The design should satisfy ACI 318 for tension controlled members. Use Grade 60 steel and a specified concrete compressive strength = 4,000 psi. Determine the flexural reinforcement for the beam, and use compression steel if needed....
HELP! Problem 6 Development Length (30 pts.) The required reinforcement steel area "As" for the lightweight reinforced concrete beam of figure 3 is 2.88 si. The No. 8 top bars are uncoated. C...
HELP!
Problem 6 Development Length (30 pts.) The required reinforcement steel area "As" for the lightweight reinforced concrete beam of figure 3 is 2.88 si. The No. 8 top bars are uncoated. Compute the development length (d), İffy 60,000 psi and fc 3.500 psi. a) Use the simplified equation Table 8-1) b) Use the ACI Equation 25.4.2.3a (Equation 8-10) c) Use the ACI Equation 25.4.2.3a with Ktr 0 (Equation 8-10) 18 3" 3@4 123 3" 448 bars 3.14 in2 26...
Q4 Design of isolated footings A 500 mm x 250 mm reinforced concrete column carries unfactored...
Q4 Design of isolated footings A 500 mm x 250 mm reinforced concrete column carries unfactored dead load of 1400 kN and unfactored dead load of 600 kN. The column is supported by a rectangular footing located 2.00 meters below ground level where the allowable soil bearing capacity is 292.4 KPa and unit weight is 20 kN/m2. Concrete compressive strength is 35 MPa and reinforcing steel yield strength is 420 MPa. 1. Calculate the required dimensions of a 600 mm...
Name: 2. A rectangular 14 x 18 in. column is reinforced with six No. 1 below....
Name: 2. A rectangular 14 x 18 in. column is reinforced with six No. 1 below. The concrete compressive strength, 5,000 psi 0 rebars as sh and the steel yield strength, = 60,000 psi. ) Calculate the axial load d carrying capacity of the column dPn, assuming concentre of the loading (b) If the shape of the column is changed to circular (without changing the concrete rea) with spiral reinforcement, calculate the increase in load carrying capacity o the column....
reinforced concrete design , ACI code Q4 Design of isolated footings A 500 mm x 250...
reinforced concrete design , ACI code
Q4 Design of isolated footings A 500 mm x 250 mm reinforced concrete column carries unfactored dead load of 1400 kN and unfactored dead load of 600 kN. The column is supported by a rectangular footing located 2.00 meters below ground level where the allowable soil bearing capacity is 292.4 KPa and unit weight is 20 kN/m2. Concrete compressive strength is 35 MPa and reinforcing steel yield strength is 420 MPa. 1. Calculate the...
Question #2 (20 points) A (a) A Composite column made of reinforced concrete was constructed on...
Question #2 (20 points) A (a) A Composite column made of reinforced concrete was constructed on a very rigid foundation. The column was constructed at 25 °C and in this temperature, there was no stress in the system. The column is exposed to axial loading (or stress) of 2000 psi as shown in the picture. The column has a thickness of 8 in, a width of 3 in, and a length of 13 ft. Six #6 longitudinal bars (each has...
Reinforced concrete Problem #1 (40 points): A beam with x-section shown in the figure is made...
Reinforced concrete
Problem #1 (40 points): A beam with x-section shown in the figure is made out of concrete with compressive strength fc = 4000 psi and the steel reinfrocemnt is of Grade 60 (fy 60000psi). Determine 1 The maximum compressive stress in the concrete f and the tensils stress in the steel , if the section is subjected to a bending moment of 130 ft-k (assume n 8) N.A._ 23" 23-х 4 #10 (5.06 in. 3" 18"
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, f 'c, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section...
Reinforced Concrete Design
Please answer it with good write .
Problem 1: The reinforced concrete cantilever beam shown is subjected to a concentrated load P- 2 kips, at its free end. Determine the development length of the shown bars using the detailed and simplified methods for the following cases: a) straight bars b) 90 hooks c )180, hooks The column width is 22 inches. Concrete cover is measured from the concrete surface to the center of the reinforcement. fc 4...
HELP!
Problem 6 Development Length (30 pts.) The required reinforcement steel area "As" for the lightweight reinforced concrete beam of figure 3 is 2.88 si. The No. 8 top bars are uncoated. Compute the development length (d), İffy 60,000 psi and fc 3.500 psi. a) Use the simplified equation Table 8-1) b) Use the ACI Equation 25.4.2.3a (Equation 8-10) c) Use the ACI Equation 25.4.2.3a with Ktr 0 (Equation 8-10) 18 3" 3@4 123 3" 448 bars 3.14 in2 26...
Q4 Design of isolated footings A 500 mm x 250 mm reinforced concrete column carries unfactored dead load of 1400 kN and unfactored dead load of 600 kN. The column is supported by a rectangular footing located 2.00 meters below ground level where the allowable soil bearing capacity is 292.4 KPa and unit weight is 20 kN/m2. Concrete compressive strength is 35 MPa and reinforcing steel yield strength is 420 MPa. 1. Calculate the required dimensions of a 600 mm...
Name: 2. A rectangular 14 x 18 in. column is reinforced with six No. 1 below. The concrete compressive strength, 5,000 psi 0 rebars as sh and the steel yield strength, = 60,000 psi. ) Calculate the axial load d carrying capacity of the column dPn, assuming concentre of the loading (b) If the shape of the column is changed to circular (without changing the concrete rea) with spiral reinforcement, calculate the increase in load carrying capacity o the column....
reinforced concrete design , ACI code
Q4 Design of isolated footings A 500 mm x 250 mm reinforced concrete column carries unfactored dead load of 1400 kN and unfactored dead load of 600 kN. The column is supported by a rectangular footing located 2.00 meters below ground level where the allowable soil bearing capacity is 292.4 KPa and unit weight is 20 kN/m2. Concrete compressive strength is 35 MPa and reinforcing steel yield strength is 420 MPa. 1. Calculate the...
Question #2 (20 points) A (a) A Composite column made of reinforced concrete was constructed on a very rigid foundation. The column was constructed at 25 °C and in this temperature, there was no stress in the system. The column is exposed to axial loading (or stress) of 2000 psi as shown in the picture. The column has a thickness of 8 in, a width of 3 in, and a length of 13 ft. Six #6 longitudinal bars (each has...
Reinforced concrete
Problem #1 (40 points): A beam with x-section shown in the figure is made out of concrete with compressive strength fc = 4000 psi and the steel reinfrocemnt is of Grade 60 (fy 60000psi). Determine 1 The maximum compressive stress in the concrete f and the tensils stress in the steel , if the section is subjected to a bending moment of 130 ft-k (assume n 8) N.A._ 23" 23-х 4 #10 (5.06 in. 3" 18"
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
