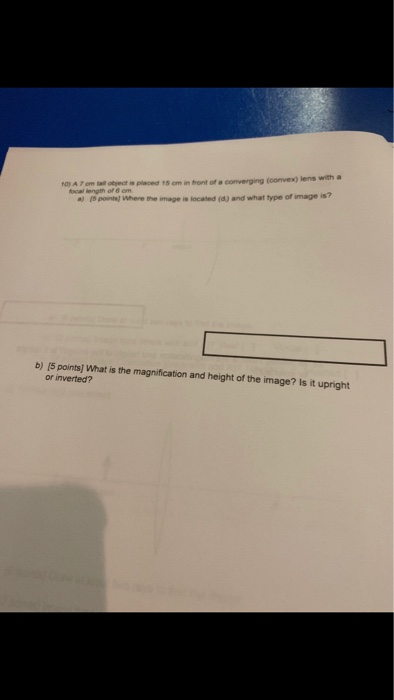

1S om in front of a converging (convex) lens with a o) A 7 om sal...

Question

Question

science physics

Answer 1

Answer #1

1/f=1/v -1/u, v=30/7=4.28cm, real and inverted image

v/u=30/7)/15=0.285= -hi/ho ,. Hi=-2cm

So the image is real inverted and 2cm of image height

Answer 2

Similar Homework Help Questions

QUESTION 7 An object placed 35 cm in front of a convex lens projects a real...

QUESTION 7 An object placed 35 cm in front of a convex lens projects a real image 55 cm behind the lens. What is the magnification of the lens? Enter only the number portion of your answer. Watch your signs! (9) An object 21 cm to the left of a convex lens. The object is 1.0 m in height. What is the height of its image if the lens has a magnification of -2.0? (10) An object 21 cm to...
An object is placed 7 cm in front of a converging lens. An image forms which...

An object is placed 7 cm in front of a converging lens. An image forms which is inverted and has a magnification of -2. Where should the object be moved such that the image is upright and has a magnification of 4? Answer in cm.
A 6.2 ?? tall object is placed 14.3 ?? in front of a −4.5 ? lens....

A 6.2 ?? tall object is placed 14.3 ?? in front of a −4.5 ? lens. uns a. What type of lens is this? b. Where is the image located? c. Is this a real or virtual image? d. What is the magnification of the image? e. Is the image upright or inverted?

An object is placed 15.0 cm to the left of a convex (converging) lens of focal...

An object is placed 15.0 cm to the left of a convex (converging) lens of focal length 20.0 cm. The image of this object is located (Figure out if the image is real or virtual, it will help to locate the image] O 60.0 cm to the left of the lens. O 60.0 cm to the right of the lens. O 8.57 cm to the right of the lens. O 8.57 cm to the left of the lens. Question 8...
Objects in front of a convex mirror Object in front of a convex mirror Points:3 An...

Objects in front of a convex mirror Object in front of a convex mirror Points:3 An object is placed 14.5 cm in front of a convex mirror that has a focal length of -23.5 cm. Determine the location of the image. Submit Answer) Tries 0/12 What is the magnification? Submit Answer Tries 0/12 In this example the image is ... O Real and inverted. O Virtual and upright. O Virtual and inverted. O Real and upright. Submit Answer Tries 0/12
An object is placed 100cm in front of a lens of focal length 50cm. A lens...

An object is placed 100cm in front of a lens of focal length 50cm. A lens of focal length -20cm is placed 90cm beyond the first lens. a) Where is the final image located? b) Is this a real or virtual image? c) What is the magnification of the lens combination? d) Is the final image inverted or upright? e) Is the final image bigger or smaller than the object?

An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length o...

An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
1.) An object is placed in front of a diverging lens with a focal length of...

1.) An object is placed in front of a diverging lens with a focal length of 17.7 cm. For each object distance, find the image distance and the magnification. Describe each image. (a) 35.4 cm location _____cm magnification _____ nature real virtual upright inverted (b) 17.7 cm location _____ cm magnification _____ nature real virtual upright inverted (c) 8.85 cm location _____ cm magnification _____ nature real virtual upright inverted 2.) An object is placed in front of a converging lens...
Question 6 1 pts 6) An object is placed 9 cm in front of a converging...

Question 6 1 pts 6) An object is placed 9 cm in front of a converging lens. An image forms which is inverted and has a magnification of -4. Where should the object be moved such that the image is upright and has a magnification of 5? Answer in cm.

A candle is placed 0.550m in front of a converging lens. The image of the object...

A candle is placed 0.550m in front of a converging lens. The image of the object is focused on a screen 0.646m behind the lens. What is the focal length of the lens? What is the magnification of the image? (if the image is inverted, the magnification should be negative)
