QUESTION 7 An object placed 35 cm in front of a convex lens projects a real...

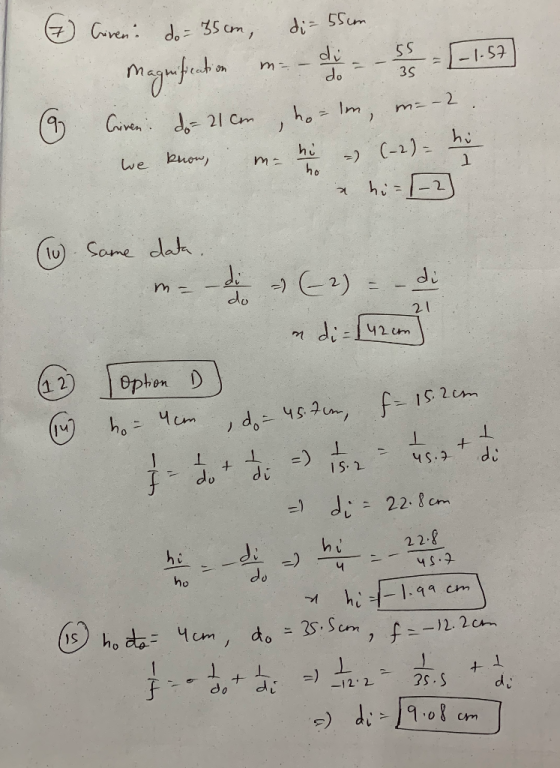

QUESTION 7 An object placed 35 cm in front of a convex lens projects a real image 55 cm behind the lens. What is the magnification of the lens? Enter only the number portion of your answer. Watch your signs!
(9) An object 21 cm to the left of a convex lens. The object is 1.0 m in height. What is the height of its image if the lens has a magnification of -2.0?
(10) An object 21 cm to the left of a convex lens is 1.0 m in height. What is the location of its image if the lens has a magnification of -2.0?
(12)Is it possible to obtain a non–inverted image with a convex lens?
A. No. Convex lenses always produce inverted images. B. Yes. If So > f, the image will be upright. C. Yes. If So = f, the image will be upright. D. Yes. If So < f, the image will be upright. E. Yes. If So > Si the image will be upright. F. Yes. If So < Si the image will be upright.
(14)A 4.00-cm tall light bulb is placed a distance of 45.7 cm from a convex lens having a focal length of 15.2 cm. Determine the image size (in cm).
(15)A 4.00-cm tall light bulb is placed a distance of 35.5 cm from a concave (diverging) lens having a focal length of -12.2 cm. Determine the image distance (in cm). thank you!
Homework Answers
Add Answer to:
QUESTION 7 An object placed 35 cm in front of a convex lens
projects a real...
6. A 4.00-cm tall light bulb is placed a distance of 45.7 cm from a double...
6. A 4.00-cm tall light bulb is placed a distance of 45.7 cm from a double convex lens having a focal length of 15.2 cm. Determine the image distance and the image size. 7. A 4.00-cm tall light bulb is placed a distance of 8.30 cm from a double convex lens having a focal length of 15.2 cm. (NOTE: this is the same object and the same lens as in #6, only this time the object is placed closer to...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y'- 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y’ = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y' = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length o...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
An object 2.00 cm high is placed 45.3 cm to the left of a converging lens...
An object 2.00 cm high is placed 45.3 cm to the left of a converging lens having a focal length of 40.3 cm. A diverging lens having a focal length of −20.0 cm is placed 110 cm to the right of the converging lens. (Use the correct sign conventions for the following answers.) (a) Determine the final position and magnification of the final image. (Give the final position as the image distance from the second lens.) final position cm magnification...
A 4.00-cm tall object is placed a distance of 48 cm from a concave mirror having a focal length of 16cm.
1. A 4.00-cm tall object is placed a distance of 48 cm from a concave mirror having a focal length of 16cm. Determine the image distance and the image size. 2. A 4.00-cm tall object is placed a distance of 8 cm from a concave mirror having a focal length of 16cm. Determine the image distance and the image size. 3. Determine the image distance and image height for a 5.00-cm tall object. placed 30.0 cm Infront of from a convex mirror...
1.) An object is placed in front of a diverging lens with a focal length of...
1.) An object is placed in front of a diverging lens with a focal length of 17.7 cm. For each object distance, find the image distance and the magnification. Describe each image. (a) 35.4 cm location _____cm magnification _____ nature real virtual upright inverted (b) 17.7 cm location _____ cm magnification _____ nature real virtual upright inverted (c) 8.85 cm location _____ cm magnification _____ nature real virtual upright inverted 2.) An object is placed in front of a converging lens...
8. An object is placed 1 m in front of a convex lens with an 80...
8. An object is placed 1 m in front of a convex lens with an 80 cm focal length. A convex mirror is then placed 1 m behind the lens. The radius of curvature of the mirror is 50 cm. 1. Where is the final image of the object (the image formed by light that has passed through the lens twice), with respect to the lens? 2. What is the total magnification of the final image? 3. Is the image...
An object is placed 15.0 cm to the left of a convex (converging) lens of focal...
An object is placed 15.0 cm to the left of a convex (converging) lens of focal length 20.0 cm. The image of this object is located (Figure out if the image is real or virtual, it will help to locate the image] O 60.0 cm to the left of the lens. O 60.0 cm to the right of the lens. O 8.57 cm to the right of the lens. O 8.57 cm to the left of the lens. Question 8...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y'- 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y’ = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y' = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
8. An object is placed 1 m in front of a convex lens with an 80 cm focal length. A convex mirror is then placed 1 m behind the lens. The radius of curvature of the mirror is 50 cm. 1. Where is the final image of the object (the image formed by light that has passed through the lens twice), with respect to the lens? 2. What is the total magnification of the final image? 3. Is the image...
An object is placed 15.0 cm to the left of a convex (converging) lens of focal length 20.0 cm. The image of this object is located (Figure out if the image is real or virtual, it will help to locate the image] O 60.0 cm to the left of the lens. O 60.0 cm to the right of the lens. O 8.57 cm to the right of the lens. O 8.57 cm to the left of the lens. Question 8...
