6. A 4.00-cm tall light bulb is placed a distance of 45.7 cm from a double...
6. A 4.00-cm tall light bulb is placed a distance of 45.7 cm
from a double
convex lens having a focal length of 15.2 cm. Determine the
distance and the image size.
7. A 4.00-cm tall light bulb is placed a distance of 8.30 cm
from a double
convex lens having a focal length of 15.2 cm. (NOTE: this is the
same
object and the same lens as in #6, only this time the object is
placed
closer to the lens.) Determine the image distance and the image
size.
8. A 4.00-cm tall light bulb is placed a distance of 35.5 cm from
a
diverging lens having a focal length of -12.2 cm. Determine the
distance and the image size.
9. Determine the image distance and image height for a 5-cm tall
object
placed 20.0 cm from a double convex lens having a focal length of
15.0
cm.
10. The focal point is located 20.0 cm from a double concave lens.
An
object is placed 12 cm from the lens. Determine the image
distance.

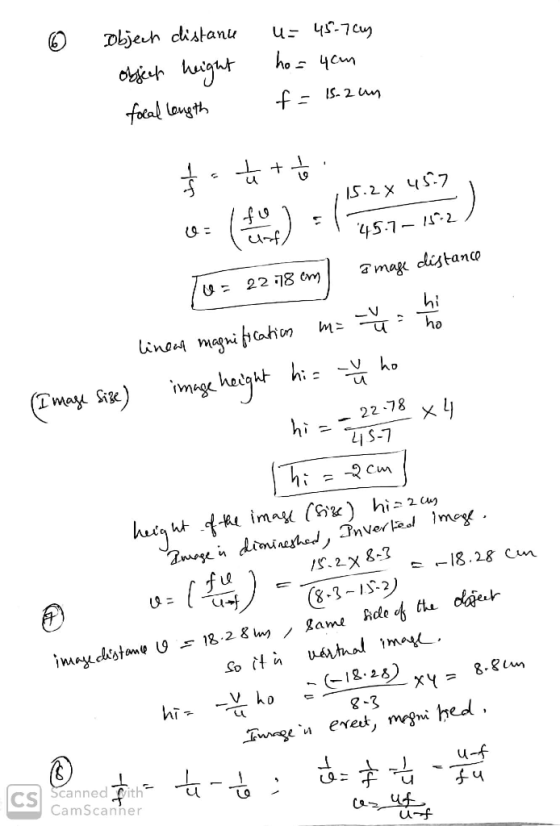

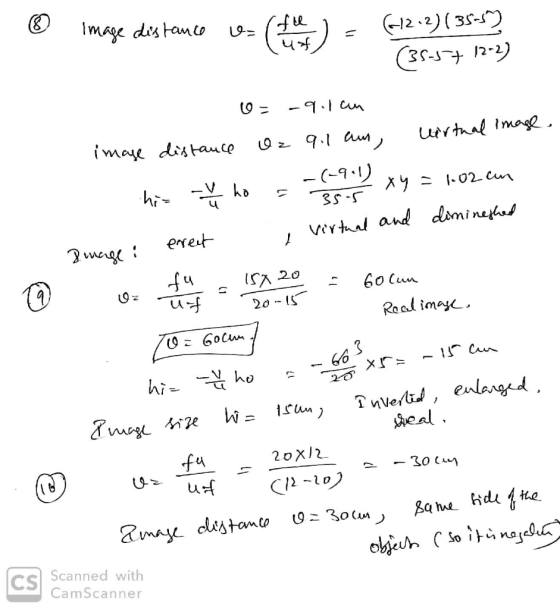

Homework Answers
Add Answer to:
6. A 4.00-cm tall light bulb is placed a distance of 45.7 cm
from a double...
QUESTION 7 An object placed 35 cm in front of a convex lens projects a real...
QUESTION 7 An object placed 35 cm in front of a convex lens projects a real image 55 cm behind the lens. What is the magnification of the lens? Enter only the number portion of your answer. Watch your signs! (9) An object 21 cm to the left of a convex lens. The object is 1.0 m in height. What is the height of its image if the lens has a magnification of -2.0? (10) An object 21 cm to...
A 4.00-cm tall object is placed a distance of 48 cm from a concave mirror having a focal length of 16cm.
1. A 4.00-cm tall object is placed a distance of 48 cm from a concave mirror having a focal length of 16cm. Determine the image distance and the image size. 2. A 4.00-cm tall object is placed a distance of 8 cm from a concave mirror having a focal length of 16cm. Determine the image distance and the image size. 3. Determine the image distance and image height for a 5.00-cm tall object. placed 30.0 cm Infront of from a convex mirror...
A 4.00-cm tall object is placed a distance of 8 cm from a concave mirror having...
A 4.00-cm tall object is placed a distance of 8 cm from a concave mirror having a focal length of 16cm. Determine the image distance and the image size.
A 4.50 cm tall object is placed at a distance of (24.8) cm from a convex...
A 4.50 cm tall object is placed at a distance of (24.8) cm from a convex lens with a focal length of (5.25) cm. Find the size of the resulting image. Give your answer in centimeters (cm) with the correct sign and with 3 significant figures.
A 4.50 cm tall object is placed at a distance of (16.8 + 1) cm from...
A 4.50 cm tall object is placed at a distance of (16.8 + 1) cm from a convex lens with a focal length of (5.25+8) cm. Find the size of the resulting image. Give your answer in centimeters (cm) with the correct sign and with 3 significant figures.
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length o...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y'- 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y’ = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y' = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
An object 3 cm tall is placed 15 cm to the left of a diverging lens...
An object 3 cm tall is placed 15 cm to the left of a diverging lens having a focal length f=-30 cm. What is the size of the resulting image?
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y'- 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y’ = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y' = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
