A 4.00-cm tall object is placed a distance of 8 cm from a concave mirror having a focal length of 16cm. Determine the image distance and the image size.

science physics

Answer 1

Answer #1

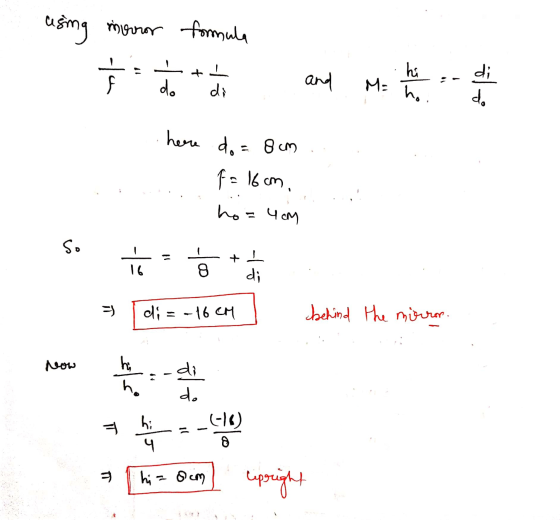

Please see image and try to understand thanks

using morror formula hi +1 di do 4 and ho. di do here do = 8cm Fe 16m, ho=4 cm So + ㅎ 14. 9 di d; = -16대 behind the mirror. N

Answer 2

Similar Homework Help Questions

A 4.00-cm tall object is placed a distance of 48 cm from a concave mirror having a focal length of 16cm.

1. A 4.00-cm tall object is placed a distance of 48 cm from a concave mirror having a focal length of 16cm. Determine the image distance and the image size. 2. A 4.00-cm tall object is placed a distance of 8 cm from a concave mirror having a focal length of 16cm. Determine the image distance and the image size. 3. Determine the image distance and image height for a 5.00-cm tall object. placed 30.0 cm Infront of from a convex mirror...
6. A 4.00-cm tall light bulb is placed a distance of 45.7 cm from a double...

6. A 4.00-cm tall light bulb is placed a distance of 45.7 cm from a double convex lens having a focal length of 15.2 cm. Determine the image distance and the image size. 7. A 4.00-cm tall light bulb is placed a distance of 8.30 cm from a double convex lens having a focal length of 15.2 cm. (NOTE: this is the same object and the same lens as in #6, only this time the object is placed closer to...
An object that is 4.00 cm tall is placed 18.0 cm in front of a concave...

An object that is 4.00 cm tall is placed 18.0 cm in front of a concave mirror having a focal length of 25.0 cm. a. What is the location of the image? b. What is the magnification of the image? c. Is the image inverted or upright? d. Is the virtual or real

8. An object 2.6 cm tall is placed 7.3 cm in front of a concave mirror....

8. An object 2.6 cm tall is placed 7.3 cm in front of a concave mirror. if a real image is produced that is also 2.6 cm tall, what is the focal length of the mirror?
A 0 cm tall object is placed 10 cm away from a concave mirror that has...

A 0 cm tall object is placed 10 cm away from a concave mirror that has a 4.0 cm focal length. Calculate the: Image distance Image Height Magnification A 1.0 cm tall object is placed 5 cm away from a biconcave lens that has a 10.0 cm focal length. Calculate the: Image distance Image Height Magnification Using the optics as configured in #5 & #6, Draw a ray-tracing diagram, with all principle rays. What is the nature of the image?
A 27 cm tall object is placed in front of a concave mirror with a radius...

A 27 cm tall object is placed in front of a concave mirror with a radius of 24 cm. The distance of the object to the mirror is 73 cm. Calculate the focal length of the mirror. Calculate the image distance. Calculate the magnification of the image (Remember, a negative magnification corresponds to an inverted image). Calculate the magnitude of the image height.

Ап object 2.0 mm tall is placed 6.0 cm from the front of a CONCAVE MIRROR. The radius of curvatur...

Ап object 2.0 mm tall is placed 6.0 cm from the front of a CONCAVE MIRROR. The radius of curvature is 9.0 cm 2. (3 points) What is the focal length of the mirror a) b) Describe the image, including: The image's distance from the mirror in centimeters: Magnification How do you know? Real or virtual? How do you know? Upright or inverted? How do you know? Larger, smaller, or same size as object? Ап object 2.0 mm tall is...
An object is placed in front of a concave mirror at a distance of distance of...

An object is placed in front of a concave mirror at a distance of distance of 24 cm.The focal length of the mirror is 10 cm from the vertex. The object is 2.52 cm in height. Discuss the image characteristics? What is the size of the image? What is the distance of the image from the vertex?
A 11 cm tall object is placed in front of a concave mirror with a radius...

A 11 cm tall object is placed in front of a concave mirror with a radius of 33 cm. The distance of the object to the mirror is 76 cm. Calculate the focal length of the mirror. Tries 0/99 Calculate the image distance. Tries 0/99 Calculate the magnification of the image (Remember, a negative magnification corresponds to an inverted image). Tries 0/99 Calculate the magnitude of the image height.

Determine the image distance and image height for a 5.00-cm tall object placed 30.0 cm Infront of from a convex mirror having a focal length of 15.0 cm

Determine the image distance and image height for a 5.00-cm tall object placed 30.0 cm Infront of from a convex mirror having a focal length of 15.0 cm .
