A 27 cm tall object is placed in front of a concave mirror with a radius...

A 27 cm tall object is placed in front of a concave mirror with a radius of 24 cm. The distance of the object to the mirror is 73 cm.
Calculate the focal length of the mirror.

Calculate the image distance.

Calculate the magnification of the image (Remember, a negative magnification corresponds to an inverted image).

Calculate the magnitude of the image height.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

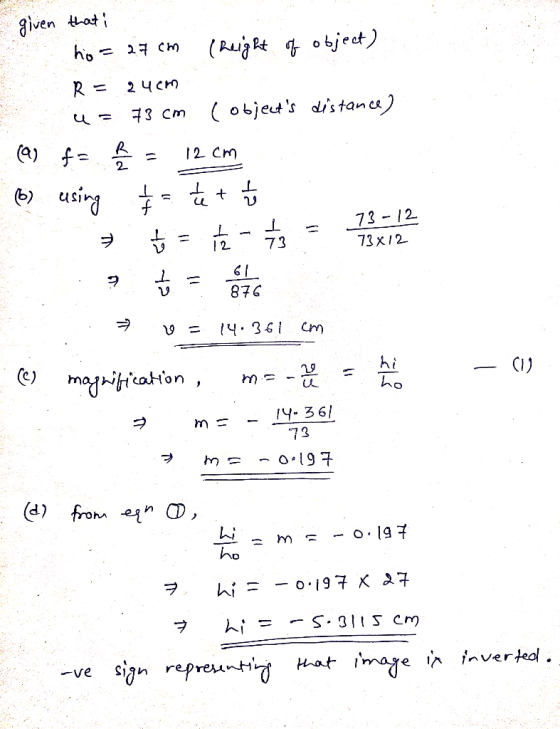

Answer #1

0 0
Add a comment
