QUESTION 2 below, in fifth harmonic of load current be 6 is the time during the...
The single-phase full-bridge inverter shown in Figure 1 below is required to have an output voltage...
The single-phase full-bridge inverter shown in Figure 1 below is
required to have an output voltage waveform such as is shown in
Figure 2 below, in which δis the time during the
positive and negative half-cycles in which load current
flows. For what value of δ (in degrees) will

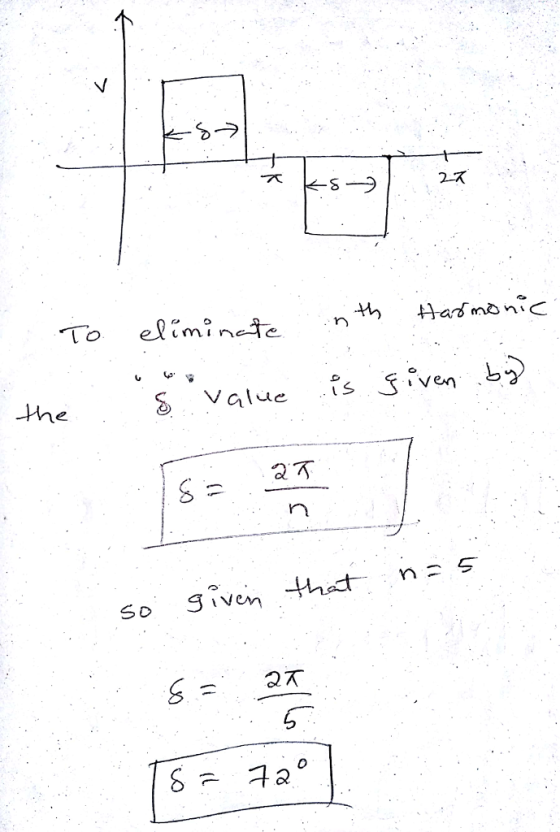

the fifth harmonic of load current be eliminated?
QUESTION 1 The single-phase full-bridge inverter shown in Figure 1 below is required to have an output voltage waveform such as is shown in Figure...
Using the superposition principle, find it in the circuit given below, where R=6 . Please report...
Using the superposition principle, find it in the circuit given below, where R=6 . Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. F ix 10 cos(2t + 109) A ( 20cos(2t -60°) V The component of the current due to the voltage source is is ) A. cos(2+0 COS(2+ The component of the current due to the current source is 12 )) A The...
QUESTION 2 A coil with inductance of 1 H and negligible resistance carries the current shown...
QUESTION 2 A coil with inductance of 1 H and negligible resistance carries the current shown in the figure below. Determine the maximum energy stored in the inductor. (Select the one best answer from the choices given below.) i(A) 0 246 t(ms) a 0.004J Ob.0.2J c 0.25J d.0.5J e.1 J 84 J
Use source transformation to find the output current in the circuit given below, whero V, -...
Use source transformation to find the output current in the circuit given below, whero V, - 40 230 V. X. 40 ,Xc 20, R = R2 = 800, and V, - 100 V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. jXL R2 R -jXc V2 The output current in the given circuit is
QUESTION 2 Half wave_rectifier_with_RL_source_load calc_source power A half-wave rectifier of the figure shown below has a...
QUESTION 2 Half wave_rectifier_with_RL_source_load calc_source power A half-wave rectifier of the figure shown below has a 120 Vrms, 60 Hz ac source. The load is a series inductance, resistance, and dc source, with L = 120 mH, R = 12 , and Vdc = 48 V. Determine the power absorbed by the de voltage source. Select the one best answer from the choices given below. Wm. Versin(con (c) 76 W (d) 89 W (e) 120 W (a) 35 W (b)...
A half-wave rectifier has a 120 Vrms 60 HZ ac source. The load IS 50...
Q1)A half-wave rectifier has a 120 Vrms 60 HZ ac source. The load IS 50 W. Determine the value of a filter capacitor to keep the peak-to-peak nipple across the load to less than 1.5V. Seled the one best answer from the choices given below(a) 410 UF (d) 3270 uF (b) 820 UF (e) 6540 UFQ2)A diode whose internal resistance is 200 is to supply power to a 1000 load from 110V (rms) source pf supply. Calculate(a) peak load current...
QUESTION 6 A stiff voltage divider is one in which a. there is no load current...
QUESTION 6 A stiff voltage divider is one in which a. there is no load current O b. divider current is small compared to load current c. the load is connected directly to the source voltage O d. loading effects can be ignored QUESTION 7 The output signal of a common-collector amplifier is always a in phase with the input signal b. out of phase with the input signal c. larger than the input signal od exactly equal to the...
Question Completion Status QUESTION 7 Which of the following statements about voltage is correct? a. Voltage...
Question Completion Status QUESTION 7 Which of the following statements about voltage is correct? a. Voltage flows between positive and negative terminals of a battery According to Ohm's Law, increasing the voltage across a resistor results in a decrease in the amount of current flowing through the Voltage is defined as the work performed to move charges in an electric field, per unit charge. s defined as the time rate of change of the magnetic field surrounding a conductor in...
QUESTION 4 For the circuit in the figure shown below, the switch is closed at t...
QUESTION 4 For the circuit in the figure shown below, the switch is closed at t = 0 s. Determine the value of the inductor current il at t = 10 us. (Select the one best answer from the choices given below. + 2 1000 chans 10 mH a. Oma 6.2.0 mA c.2.8 ma d.3.6 MA e.4.4 mA f. 5.2 ma 5.6.0 mA 1.6.8 mA i 7.6 mA j. 8.4 mA k. 9.2 mA l. 10 mA
QUESTION 6 Gauss's Law describes the following relationship (select the correct answer): O a. Electromotive force...
QUESTION 6 Gauss's Law describes the following relationship (select the correct answer): O a. Electromotive force induced in a conductive loop by variation of a magnetic field. b. Voltage difference across a resistance when current is flowing through the resistance. CPhase angles between current and voltage in capacitors and inductors. d. Electric flux through a closed surface and charge enclosed by the surface. QUESTION 7 "Static" electricity can be described as (select the correct answer): a. The buildup of current...
The single-phase full-bridge inverter shown in Figure 1 below is
required to have an output voltage waveform such as is shown in
Figure 2 below, in which δis the time during the
positive and negative half-cycles in which load current
flows. For what value of δ (in degrees) will
the fifth harmonic of load current be eliminated?
QUESTION 1 The single-phase full-bridge inverter shown in Figure 1 below is required to have an output voltage waveform such as is shown in Figure...
Using the superposition principle, find it in the circuit given below, where R=6 . Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. F ix 10 cos(2t + 109) A ( 20cos(2t -60°) V The component of the current due to the voltage source is is ) A. cos(2+0 COS(2+ The component of the current due to the current source is 12 )) A The...
QUESTION 2 A coil with inductance of 1 H and negligible resistance carries the current shown in the figure below. Determine the maximum energy stored in the inductor. (Select the one best answer from the choices given below.) i(A) 0 246 t(ms) a 0.004J Ob.0.2J c 0.25J d.0.5J e.1 J 84 J
Use source transformation to find the output current in the circuit given below, whero V, - 40 230 V. X. 40 ,Xc 20, R = R2 = 800, and V, - 100 V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. jXL R2 R -jXc V2 The output current in the given circuit is
QUESTION 2 Half wave_rectifier_with_RL_source_load calc_source power A half-wave rectifier of the figure shown below has a 120 Vrms, 60 Hz ac source. The load is a series inductance, resistance, and dc source, with L = 120 mH, R = 12 , and Vdc = 48 V. Determine the power absorbed by the de voltage source. Select the one best answer from the choices given below. Wm. Versin(con (c) 76 W (d) 89 W (e) 120 W (a) 35 W (b)...
Q1)A half-wave rectifier has a 120 Vrms 60 HZ ac source. The load IS 50 W. Determine the value of a filter capacitor to keep the peak-to-peak nipple across the load to less than 1.5V. Seled the one best answer from the choices given below(a) 410 UF (d) 3270 uF (b) 820 UF (e) 6540 UFQ2)A diode whose internal resistance is 200 is to supply power to a 1000 load from 110V (rms) source pf supply. Calculate(a) peak load current...
QUESTION 6 A stiff voltage divider is one in which a. there is no load current O b. divider current is small compared to load current c. the load is connected directly to the source voltage O d. loading effects can be ignored QUESTION 7 The output signal of a common-collector amplifier is always a in phase with the input signal b. out of phase with the input signal c. larger than the input signal od exactly equal to the...
Question Completion Status QUESTION 7 Which of the following statements about voltage is correct? a. Voltage flows between positive and negative terminals of a battery According to Ohm's Law, increasing the voltage across a resistor results in a decrease in the amount of current flowing through the Voltage is defined as the work performed to move charges in an electric field, per unit charge. s defined as the time rate of change of the magnetic field surrounding a conductor in...
QUESTION 4 For the circuit in the figure shown below, the switch is closed at t = 0 s. Determine the value of the inductor current il at t = 10 us. (Select the one best answer from the choices given below. + 2 1000 chans 10 mH a. Oma 6.2.0 mA c.2.8 ma d.3.6 MA e.4.4 mA f. 5.2 ma 5.6.0 mA 1.6.8 mA i 7.6 mA j. 8.4 mA k. 9.2 mA l. 10 mA
QUESTION 6 Gauss's Law describes the following relationship (select the correct answer): O a. Electromotive force induced in a conductive loop by variation of a magnetic field. b. Voltage difference across a resistance when current is flowing through the resistance. CPhase angles between current and voltage in capacitors and inductors. d. Electric flux through a closed surface and charge enclosed by the surface. QUESTION 7 "Static" electricity can be described as (select the correct answer): a. The buildup of current...
