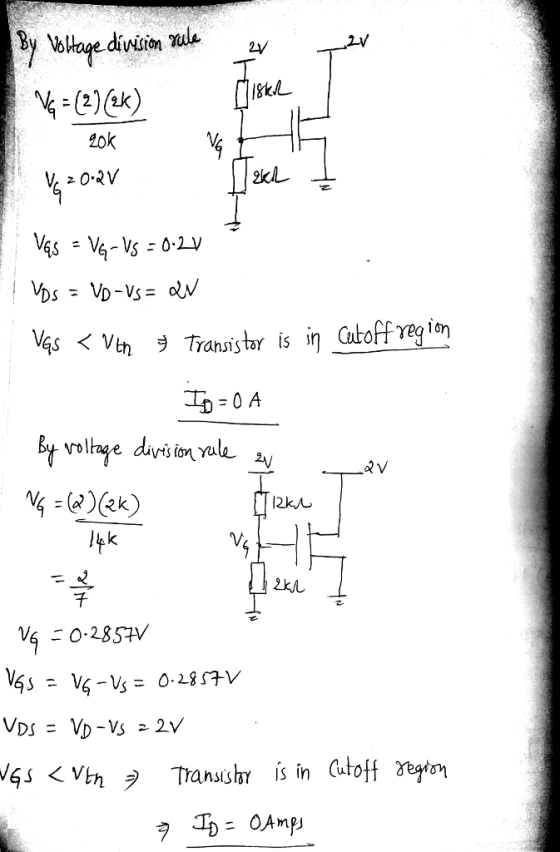

Q3. For the three circuits a) Give the transistor bias state, b) Write the appropriate model...
Consider an nMOS transistor with VTH = 0.4 V, Kn = 140μA/V2 , length, L = 0.25μm, and width, W = 1.25μm. (a) Given that VGS = 1V, determine the range of values of VDS for which the device is in the saturation region. (b) Given that VGS = 1V, determine the range of values of VDS for which the device is in the triode/linar region. (c) Plot IDS vs VGS for operation in the saturation region. Ignore channel length...
Consider an NMOS transistor with the gate connected to a voltage source, its source connected to ground, bulk also connected to ground and the drain connected a variable voltage source. The NMOS transistor properties are k’ = 0.2mA/V2, ?= 0.025 V-1, W= 16?? and L = 1?? , Vto= 0.8V and gate oxide thickness of tox = 100Å. Assuming the transistor in saturation region and ignoring any Early effects, calculate the gate current, the gate source voltage and the gate...
Consider the following current mirror
combination, where all transistors have the same
kn'(W/L) =
kp'(W/L) =
2mA/V2, and VTN =
1V, VTP = -1V. It is also given that VDD1 =
10V, VDD2 = 8V. Remember that for saturation the drain
current is given by ID = ½
kn'(W/L)
(VGS –
VTN)2 for NMOS and
ID = ½
kp'(W/L)
(VGS –
VTP)2 for PMOS. You can
ignore the channel modulation for all transistors.
Find the value of R so that...
1. Consider the following current mirror combination, where all transistors have the same kn'(W/L) = kp'(W/L) = 2mA/V2, and VTN-1У, VTP--1V. It is also given that VDD1-10V, VDD2-8V. Remember that for saturation the drain current is given by IDー½ k,"(W/L) (VGS-Yn)" for NMOS and ID ½ kp"(WL) (VGS-V,»)2 for PMOS. You can ignore the channel modulation for all transistors. (a) Find the value of R so that I.-1mA. (b) Are transistors Q1, Q2, Q3 in saturation? (c) What is the...
V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same relationships as for NMOS trasistos tCharacteristics: a CuGs- V,) ®os- } ip.C Replace .and NA with p,,and Nprespectively. V.V V, and yare negative. 2 wov ps For vos 2( -V) e Conditions for operation in the triode region ip lvi Q1. (10 points) For the following configuration of the given figure below, with the following parameters: VDD= +10...
In the amplifier circuit below, the transistor has the following
properties:Vt =1.5V,k’n=100 microA/V2,W=2 micro m ,L=0.2 micro m,
lambda = 0V^-1
a. Find the dc values VG, VD, and VS.
b. Verify (prove) that the circuit is in the proper region of
operation for an amplifier
c. Find the transconductance value, gm
d. Draw the equivalent small-signal circuit model, replacing the
NMOS with its pi-model
e. Draw the equivalent small-signal circuit model, replacing the
NMOS with its T-model
f. Calculate...
Question 2: a) Find the value of Vgs? b) If the threshold voltage of the NMOS 0.7V, identify the region of operation for the MOSFET (i.e. Triode Saturation or Cutoff) v,= 10V SATE e) Write the formula to calculate Current (ID) for the circuit in Figure 1 Fig. 1 Question 3: a) Find the value of Vgs* b) If the threshold voltage of the NMOS 0.7V, identify the region of operation for the MOSFET (i.e. Triode, Saturation or Cutoff) c)...
