Please find an expression for the velocity of a 0.75 in diameter steel ball rolling down...

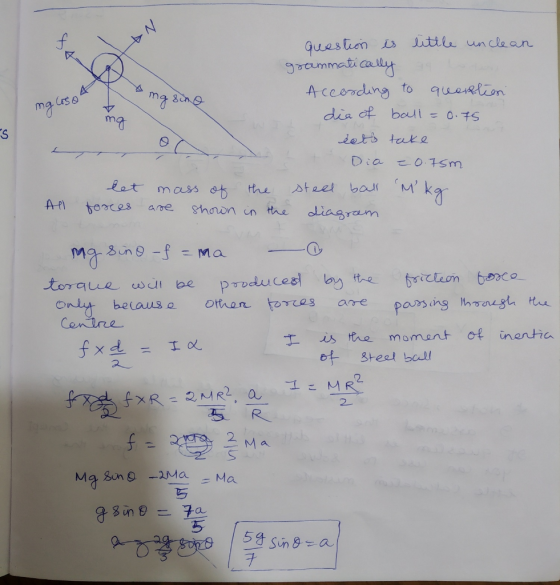

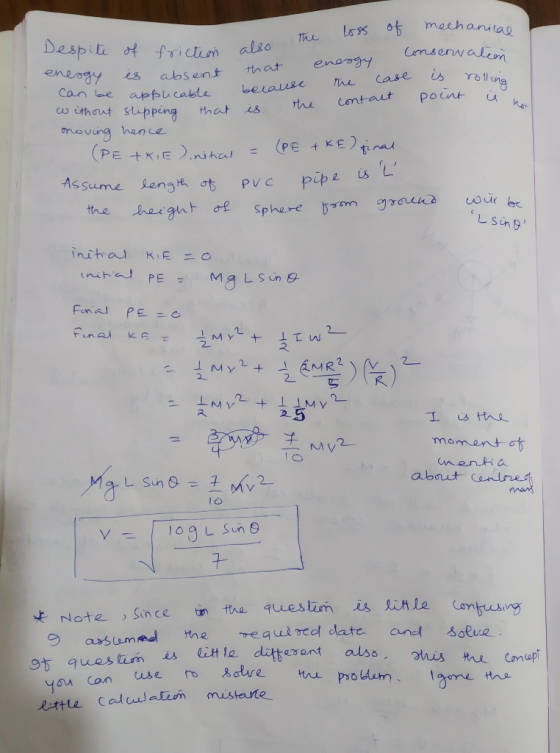

Please find an expression for the velocity of a 0.75 in diameter steel ball rolling down a pvc pipe at an angle theta while also considering friction.
Homework Answers
Add Answer to:
Please find an expression for the velocity of a 0.75 in diameter
steel ball rolling down...
Group Activity: Ball rolling down ramp and off cliff As shown in the figure below, a hollow ball ...
Group Activity: Ball rolling down ramp and off cliff As shown in the figure below, a hollow ball with a mass m 5.00 kg and radius r -30.0cm starts from rest and rolls a distance of 1.2 m down a 30° ramp, before reaching a flat section at the bottom of the ramp. The ball then rolls along the flat section for 1.0 m before rolling off a 2.5 m-high cliff. The ball lands a distance d from the bottom...
A 5.0 kg, 22cm diameter bowling ball is rolling down an alley at 1.3 m/s. [note...
A 5.0 kg, 22cm diameter bowling ball is rolling down an alley at 1.3 m/s. [note for a sphere: I=(2/5)MR^2] a.)What is the ball's angular momentum b.)What is the ball's total energy as it rolls down the alley
2. The kinetic viscosity of a hydraulic oil is 110cP. The oil is flowing in a 20-mm diameter commercial steel pipe with the length of 45-m. If the velocity of oil is 4-m/s and specific gravity is...
2. The kinetic viscosity of a hydraulic oil is 110cP. The oil is flowing in a 20-mm diameter commercial steel pipe with the length of 45-m. If the velocity of oil is 4-m/s and specific gravity is 0.9 find the following a. Reynolds number b. Friction factor c. Head losses.
2. The kinetic viscosity of a hydraulic oil is 110cP. The oil is flowing in a 20-mm diameter commercial steel pipe with the length of 45-m. If the velocity of...
1) a)You are asked to find the initial velocity of a steel ball from a spring...
1) a)You are asked to find the initial velocity of a steel ball from a spring loaded launcher. You place the launcher on the edge of a table 1.0 meter above the floor and launch the projectile several times horizontally. If you find that the average distance the ball travels is 1.3 meters, what is the initial velocity of the ball? To solve a problem like this, use equations for the y-motion to find the time and then the x-motion...
Ball A of mass 0.35 Kg has a velocity 0.75 m/s east. It strikes a statilnary...
Ball A of mass 0.35 Kg has a velocity 0.75 m/s east. It strikes a statilnary ball aslo of mass 0.35 kg. Ball a deffects off B at an angle of 37° north of A's original path. Ball B moves in a line 90° right of the final path of A. A) Find Ball A momentum after the collision B) Find Ball B's momentum after the collision. C) Find the velocity of A after the collisoin D) Find the velocity...
A light oil is flowing through a commercial steel pipe of diameter D1. The head available...
A light oil is flowing through a commercial steel pipe of diameter D1. The head available to produce flow is independent of the flow rate. It is decided to utilise this head to increase the oil flow rate fourfold by installing a second pipe in parallel with the first pipe and of the same length. What should the diameter of the second pipe be, if: (i) flow in each of the two pipes is highly turbulent and the same roughness...
pis posse o Suppose that a ball is rolling down a ramp. The distance traveled by...
pis posse o Suppose that a ball is rolling down a ramp. The distance traveled by the ball is given by the functions where is the time, in secondo, after the ball is released and it is measured in foot for the given function, find the balls average velocity from, toly a) = 101: 4-6, 4-6.5 A 3125 sec OB. 625 sec OC 4225 sec OD 125 sec
could you please help me to find the velocity and acceleration for the following info; Angle...
could you please help me to find the velocity and acceleration for the following info; Angle of incline (o) ;44 of rolling ball Avarge time is 0.3 second to the end Acceleration; ? Velocity; ?
Air flows down a pipe with a diameter of 0.15 m. At the inlet to the...
Air flows down a pipe with a diameter of 0.15 m. At the inlet to the pipe, the Mach number is 0.25, the pressure is 70 kPa, and the temperature is 35°C. If the flow can be assumed to be adiabatic and if the mean friction factor is 0.005, determine the length of the pipe if the Mach number at the exit is 0.6. Also, find the pressure and temperature at the exit to the pipe. ?
what is the velocity head at the inlet pump? Find the value of head loss (consider...
what is the velocity head at the inlet pump?
Find the value of head loss (consider entrance, friction,
elbow and valve losses). Also, find pressure at the inlet
pump
water is at 80 degrees C
Water is being pumped from the tank at a rate of 475 L/min
-115 m E Pump Globe valve fully open DN 65 Schedule 40 steel pipe 1.40 m 0.75 m Standard elbows (2)
Group Activity: Ball rolling down ramp and off cliff As shown in the figure below, a hollow ball with a mass m 5.00 kg and radius r -30.0cm starts from rest and rolls a distance of 1.2 m down a 30° ramp, before reaching a flat section at the bottom of the ramp. The ball then rolls along the flat section for 1.0 m before rolling off a 2.5 m-high cliff. The ball lands a distance d from the bottom...
2. The kinetic viscosity of a hydraulic oil is 110cP. The oil is flowing in a 20-mm diameter commercial steel pipe with the length of 45-m. If the velocity of oil is 4-m/s and specific gravity is 0.9 find the following a. Reynolds number b. Friction factor c. Head losses.
2. The kinetic viscosity of a hydraulic oil is 110cP. The oil is flowing in a 20-mm diameter commercial steel pipe with the length of 45-m. If the velocity of...
pis posse o Suppose that a ball is rolling down a ramp. The distance traveled by the ball is given by the functions where is the time, in secondo, after the ball is released and it is measured in foot for the given function, find the balls average velocity from, toly a) = 101: 4-6, 4-6.5 A 3125 sec OB. 625 sec OC 4225 sec OD 125 sec
what is the velocity head at the inlet pump?
Find the value of head loss (consider entrance, friction,
elbow and valve losses). Also, find pressure at the inlet
pump
water is at 80 degrees C
Water is being pumped from the tank at a rate of 475 L/min
-115 m E Pump Globe valve fully open DN 65 Schedule 40 steel pipe 1.40 m 0.75 m Standard elbows (2)
