can you work it out step by step please. I really need
help

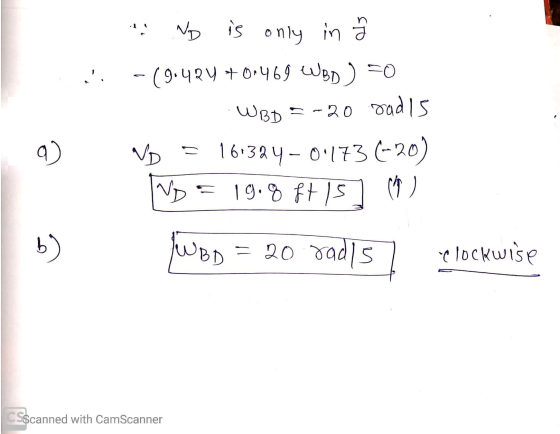

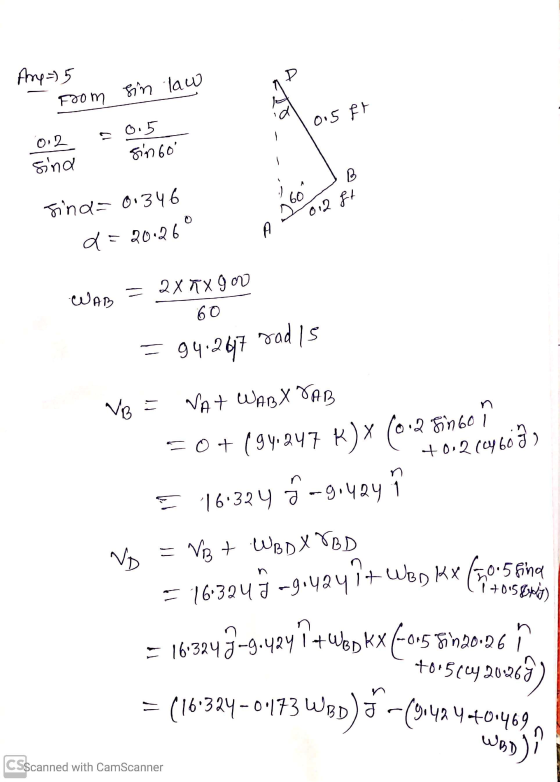

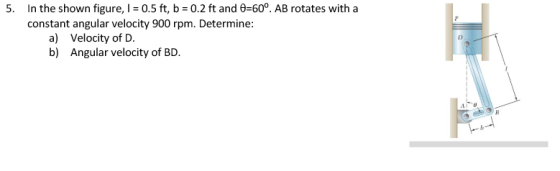

In the engine system shown, 1 - 160 mm and b 60 mm. Knowing that crank AB rotates with a constant angular velocity of 1000 rpm clockwise, use computational software to determine and plot for values of 0 from 0 to 180° and using 10° increments, (a) the angular velocity and angular acceleration of rod BD, (b) the velocity and acceleration of the piston F.
In the...
In the en gine system shown, I -160 mm and b- 60 mm. Knowing that the crank AB rotates with a constant angular velocity of 12 rads/s clockwise. Determine all the reactionary forces as a function of θ and plot these forces as a function of θ At what angle(s) is the reaction force at point D a maxmum? Also, plot the accelerations of the points B and D. The piston has a mass of3 kg, rod BD has mass...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and α =-2k rad/s, determine i) The angular velocity of link (ii) The velocity of the midpoint of link BD. (iii) The acceleration of point D. (iv) The angular acceleration of link BD 5 in. 9 in. 12 in
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and...
2. For the mechanism in the position shown in the figure, bar AB has a constant angular velocity of 4 rad/s in the clockwise direction. (a) Identify the type of motion of each bar using the FBD (b)Determine the angular velocity of bars BD and DE. (c) Determine the angular acceleration of bar BD and DE. 100 mm 175 mm B 200 mm 75 mm D E < of 2
3. At the instant shown the bar AB is rotating CW with a constant angular velocity WAB = 6 rad/s and the angle 0 = 30° 0.15 m B 0.5 m Α (Ό, a. Determine the angular velocity vector of bar BD 34.04° D b. Determine the angular acceleration vector of bar BD and the acceleration vector of point D
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129 and P15.130
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129...
8. In the engine system shown 1= 150 mm and b = 50 mm. The crank AB rotates with a constant angular velocity of 100 rad/s in the clockwise direction. Use motion analysis to answer the following when 0=30°: i) Show the coordinate system for the motion analysis ii) Find the velocity of point B iii) Find the angular velocity of connecting rod BD iv) Find the velocity of point D (30 points) P D B А
For the engine system of Prob. 15.C3 of Chap. 15, the masses of piston P and the connecting rod BD are 2.5 kg and 3 kg, respectively. Knowing that during a test of the system no force is applied to the face of the piston, use computational software to calculate and plot the horizontal and vertical components of the dynamic reactions exerted on the connecting rod at B and D for values of from 0 to 180° Prob. 15.C3 In...
