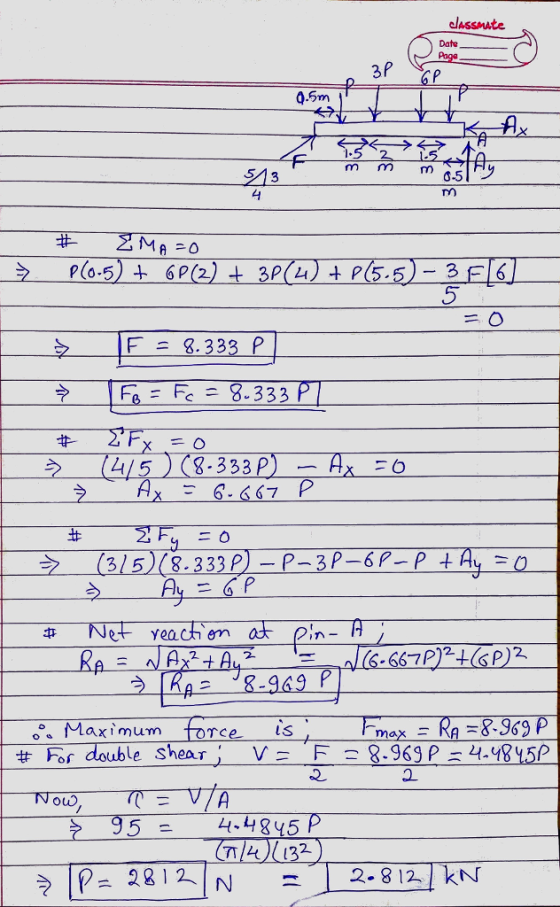

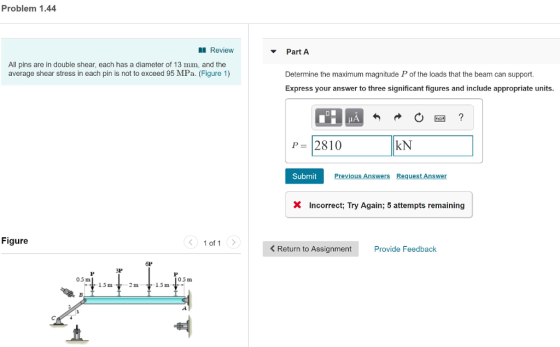

Problem 1.44 Review Part A All pins are in double shear, each has a diameter of...
All pins are in double shear, and each has a diameter of 21 mm P 7...
All pins are in double shear, and each has a diameter of 21 mm P 7 kN. (Figure 1) Part A Determine the average shear stress in the pin at A Express your answer to three significant figures and include appropriate units TA-1 Value Units Submit Request Answer Part B Determine the average shear stress in the pin at B Express your answer to three significant figures and include appropriate units TB-1 Value Units Figure 1 of 1 Submit Request...
All pins are in double shear, and each has a diameter of 15 mm . P=7 kN . (Figure 1) Determine the average shear str...
All pins are in double shear, and each has a diameter of 15 mm .
P=7 kN . (Figure 1)
Determine the average shear stress in the pin at A , B
and C
Determine the maximum magnitude P of the loads the beam can support if the average shear...
Determine the maximum magnitude P of the loads the beam can support if the average shear stress in each pin is not to exceed 80 MPa. All pins are in double shear, and each has a diameter of 18 mm. OP 0.5 m 10.5 m -1.5 m-- 2m -15 m-
Diameter of pin 2 mm. All pins are in single shear. Question 1: A light plane...
Diameter of pin 2 mm. All pins are in single shear.
Question 1: A light plane structure is supported by a roller at A and a pin at D and is subjected to a load of Pat F as shown in the figure. All the members have rectangular cross section with height 5 mm and thickness 1 mm. Tensile/Compressive strength of the members = 80 MPa, Shear strength of the pin = 50 MPa. Consider an appropriate factor of safety....
The 5m beam is supported by a pin in double shear at Cand cable AB. The...
The 5m beam is supported by a pin in double shear at Cand cable AB. The cable has a tension of 40.7 kN and is subjected to the point loads shown. Design a pin diameter at C to the closest mm so that it will not fail under shear stress. Use a yield shear stress of 160 MPa and a F.S. against yield of 2. 3.7KN PPKN 14.8KN 74 KW .5 1.5m 1,5m 40.7KN A CS Scanned With CamScanner- O...
I Review Part A Rods AC and BC are used to suspend the 320 kg mass....
I Review Part A Rods AC and BC are used to suspend the 320 kg mass. Figure 1) each rod is made of a matorial for which the average normal stress can not exceed 150 MPa, determine the minimum required diameter of each rod to the nearest mm. Express your answer as an int︸ and include the appropriate units. d- Value Units Figure C1 of 1 Submit Previous Answers Request Answer Incorrect: Try Again Provide Feedback Next >
Part A A Review The column is built up by gluing the two identical boards together....
Part A A Review The column is built up by gluing the two identical boards together. (Figure 1) If the wood has an allowable normal stress of low = 6.5 MPa, determine the maximum allowable eccentric force P that can be applied to the column Express your answer to three significant figures and include the appropriate units. P. 108,84 KN Submit Previous Answers Request Answer X Incorrect; Try Again; 9 attempts remaining Provide Feedback Next > Figure < 1 of...
The beam is made of timber that has an allowable bending stress of O allow =...
The beam is made of timber that has an allowable bending stress of O allow = 6.5 MPa and an allowable shear stress of Tallow = 500 kPa. Part A Determine its height if it is to be rectangular and have a height-to-width ratio of 1.22. (Figure 1) Figure < Express your answer with the appropriate units. 1 of 1 ? HA h = Value Units 8 kN/m Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining...
The rigid structure ABD issupported at B by a 36-mm-diameter tie rod (1) and at...
The rigid structure ABD is
supported at B by a 36-mm-diameter tie rod (1) and at A by a
29-mm-diameter pin used in a single shear connection. The tie rod
is connected at B and C by 24-mm-diameter pins used in double shear
connections. Tie rod (1) has a yield strength of 260 MPa, and each
of the pins has an ultimate shear strength of 320 MPa. A
concentrated load of P = 50 kN acts as shown at D....
Part A The wide-flange beam is subjected to the P 54 kN force. Determine the principal...
Part A The wide-flange beam is subjected to the P 54 kN force. Determine the principal stresses in the beam at point A located on the web at the bottom of the upper flange. Although it is not very accurate, use the shear formula to calculate the shear stress. (Figure 1) Determine the principal stress at point A Express your answer to three significant figures and include the appropriate units. MPa Figure 1 of 1 Request Answer Submit vious Answers...
All pins are in double shear, and each has a diameter of 21 mm P 7 kN. (Figure 1) Part A Determine the average shear stress in the pin at A Express your answer to three significant figures and include appropriate units TA-1 Value Units Submit Request Answer Part B Determine the average shear stress in the pin at B Express your answer to three significant figures and include appropriate units TB-1 Value Units Figure 1 of 1 Submit Request...
All pins are in double shear, and each has a diameter of 15 mm .
P=7 kN . (Figure 1)
Determine the average shear stress in the pin at A , B
and C
Determine the maximum magnitude P of the loads the beam can support if the average shear stress in each pin is not to exceed 80 MPa. All pins are in double shear, and each has a diameter of 18 mm. OP 0.5 m 10.5 m -1.5 m-- 2m -15 m-
Diameter of pin 2 mm. All pins are in single shear.
Question 1: A light plane structure is supported by a roller at A and a pin at D and is subjected to a load of Pat F as shown in the figure. All the members have rectangular cross section with height 5 mm and thickness 1 mm. Tensile/Compressive strength of the members = 80 MPa, Shear strength of the pin = 50 MPa. Consider an appropriate factor of safety....
The 5m beam is supported by a pin in double shear at Cand cable AB. The cable has a tension of 40.7 kN and is subjected to the point loads shown. Design a pin diameter at C to the closest mm so that it will not fail under shear stress. Use a yield shear stress of 160 MPa and a F.S. against yield of 2. 3.7KN PPKN 14.8KN 74 KW .5 1.5m 1,5m 40.7KN A CS Scanned With CamScanner- O...
I Review Part A Rods AC and BC are used to suspend the 320 kg mass. Figure 1) each rod is made of a matorial for which the average normal stress can not exceed 150 MPa, determine the minimum required diameter of each rod to the nearest mm. Express your answer as an int︸ and include the appropriate units. d- Value Units Figure C1 of 1 Submit Previous Answers Request Answer Incorrect: Try Again Provide Feedback Next >
Part A A Review The column is built up by gluing the two identical boards together. (Figure 1) If the wood has an allowable normal stress of low = 6.5 MPa, determine the maximum allowable eccentric force P that can be applied to the column Express your answer to three significant figures and include the appropriate units. P. 108,84 KN Submit Previous Answers Request Answer X Incorrect; Try Again; 9 attempts remaining Provide Feedback Next > Figure < 1 of...
The beam is made of timber that has an allowable bending stress of O allow = 6.5 MPa and an allowable shear stress of Tallow = 500 kPa. Part A Determine its height if it is to be rectangular and have a height-to-width ratio of 1.22. (Figure 1) Figure < Express your answer with the appropriate units. 1 of 1 ? HA h = Value Units 8 kN/m Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining...
The rigid structure ABD is
supported at B by a 36-mm-diameter tie rod (1) and at A by a
29-mm-diameter pin used in a single shear connection. The tie rod
is connected at B and C by 24-mm-diameter pins used in double shear
connections. Tie rod (1) has a yield strength of 260 MPa, and each
of the pins has an ultimate shear strength of 320 MPa. A
concentrated load of P = 50 kN acts as shown at D....
Part A The wide-flange beam is subjected to the P 54 kN force. Determine the principal stresses in the beam at point A located on the web at the bottom of the upper flange. Although it is not very accurate, use the shear formula to calculate the shear stress. (Figure 1) Determine the principal stress at point A Express your answer to three significant figures and include the appropriate units. MPa Figure 1 of 1 Request Answer Submit vious Answers...
