All pins are in double shear, and each has a diameter of 15 mm . P=7 kN . (Figure 1) Determine the average shear str...

no title provided

All pins are in double shear, and each has a diameter of 15 mm . P=7 kN . (Figure 1)

Determine the average shear stress in the pin at A , B and C

1 0
Add a comment Improve this question Transcribed image text
✔ Recommended Answer
Answer #1

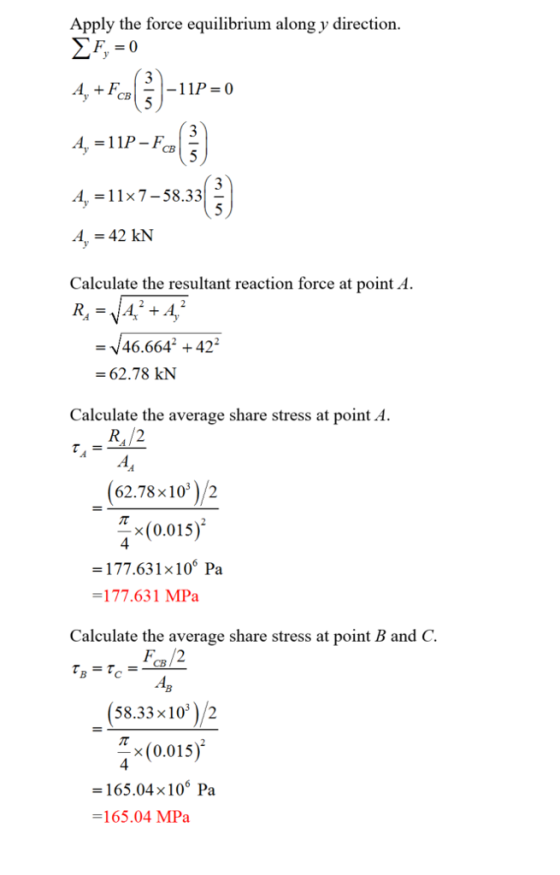

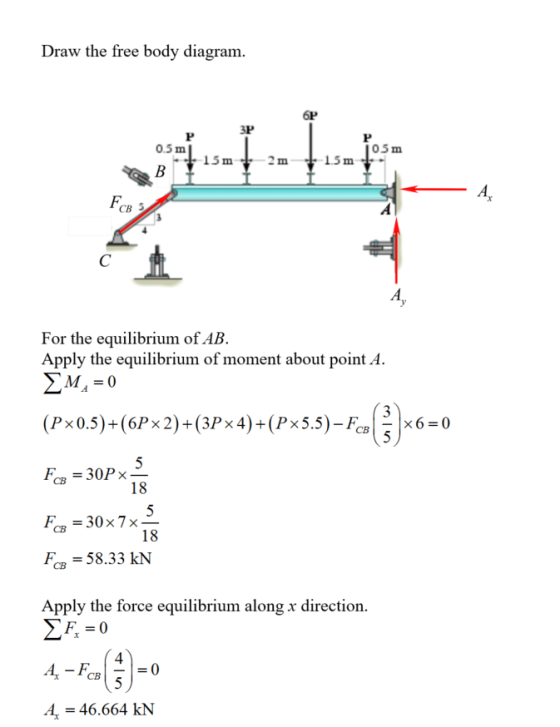

Draw the free body diagram 0.5 m 05m 15m 2m 1.5m For the equilibrium of AB Apply the equilibrium of moment about point A. (PxApply the force equilibrium along y direction. 11P 0 4, 11P-EB 3 A 11x7-58.33 A.-42 kN Calculate the resultant reaction force
