Hydraulic engineering:

The static head or static lift for the system is:

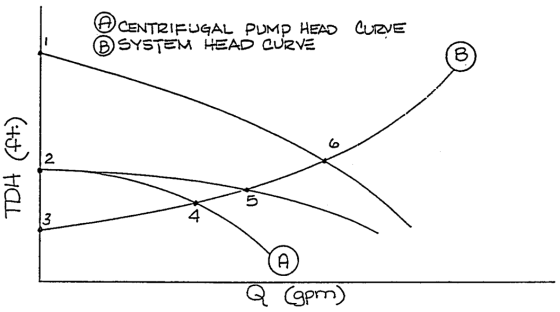

--- @CENTRIFUGAL PUMP HEAD CURVE A HEAD CURVE (+) HOLL Q Coprn)

A.4

B.5

C.2

D.1

E.3

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

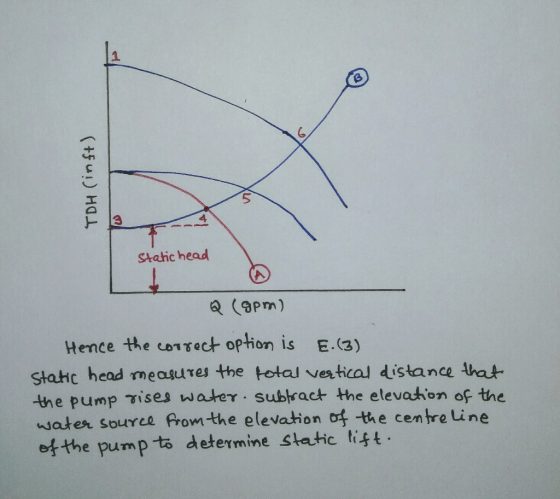

TDH (in ft) Static head Q (pm) Hence the correct option is E.(3) static head measures the total vertical distance that the pu

0 0
Add a comment
Know the answer?
Add Answer to:
Hydraulic engineering: The static head or static lift for the system is: A.4 B.5 C.2 D.1...
