A bi-convex lens is formed of two curved convex surfaces with radiuses of 75 cm. What...

Question

Question

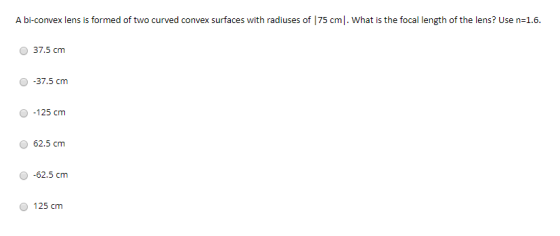

A bi-convex lens is formed of two curved convex surfaces with radiuses of 75 cm. What is the focal length of the lens? Use n=

science physics

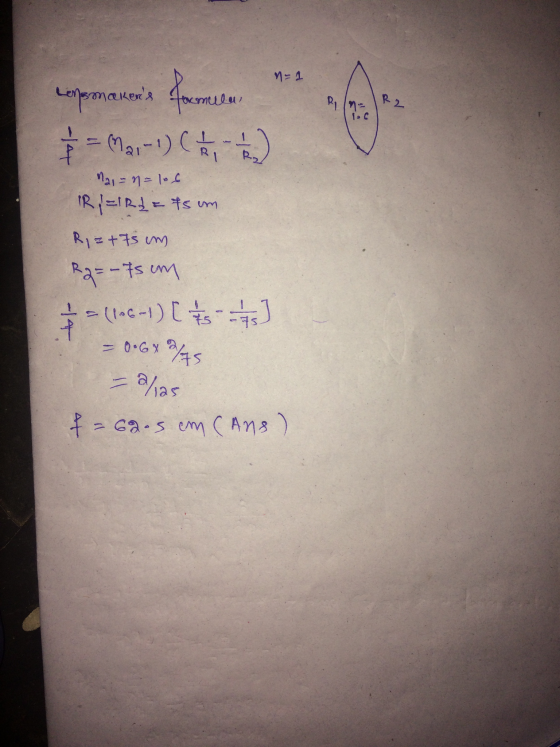

Answer 1

Answer #1

Answer

Answer 2

Similar Homework Help Questions

1) A single bi-convex lens (a lens with two convex surfaces) made of fused quartz (index...

1) A single bi-convex lens (a lens with two convex surfaces) made of fused quartz (index of refraction n = 1.46) has surfaces with radii of curvature r1 = 17.0 cm and r2 = -17.0 cm. What is the focal length of the lens in air? Tries 0/12 2) If an object is placed at p = 36.4 cm from the lens, where is the image? (Use plus sign for a real image, and minus sign for a virtual image.)...
For a converging lens with two curved surfaces, the radius of curvature for both surfaces is...

For a converging lens with two curved surfaces, the radius of curvature for both surfaces is 13.1 cm. If the focal length is 16.5 cm, what must the index of refraction be?
The lens shown above is a O bi-convex diverging lens. bi-convex converging lens. bi-concave diverging lens....

The lens shown above is a O bi-convex diverging lens. bi-convex converging lens. bi-concave diverging lens. Obi-concave converging lens. Under the sign convention rules for lenses, a negative focal length means that the lens is planar. converging. bifocal. diverging. An object is placed 30 cm from a converging lens with a focal length of 20 cm. The image will appear right side up 12 cm from the lens on the same side of the lens. right side up 60 cm...

A lens made from glass with an index of refraction of 1.66 had two convex surfaces, one with a ra...

A lens made from glass with an index of refraction of 1.66 had two convex surfaces, one with a radius of 30 cm and the other with a radius of 50 cm. What is the focal length of the lens if it is surrounded by air?
A) In the geometrical optics experiment, a student used a convex lens with 7 cm focal...

A) In the geometrical optics experiment, a student used a convex lens with 7 cm focal length to produce a large image of an object. The object was placed at a distance of 13 cm from the lens. Find the location of the formed image with respect to the lens (in cm). B) In the geometrical optics experiment, a student performed an experiment to measure the focal length of a convex lens. The object was placed at a distance of...
An object placed 20 cm in front of a lens results in an image being formed...

An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...

22. (i) A concave surface with a radius of 4 cm separates two media of refractive...

22. (i) A concave surface with a radius of 4 cm separates two media of refractive index n1 1.00 and n2- 1.5. Find the primary focal length and the secondary focal length. (ii) A biconvex glass lens has radii of curvatures 12 cm and 18 cm. The refractive index of glass is 1.44. Calculate the focal length of the lens. (iii) The radii of both surfaces of an equi-convex lens of refractive index 1.6 are equal to 8.0 cm. Find...
Please answer all questions: 1. An f=7.95 cm convex lens produces an inverted image of a...

Please answer all questions: 1. An f=7.95 cm convex lens produces an inverted image of a 1.6 m tall person. If the lens must be 5.04 m from the person to produce a sharp image, what is the magnitude of the magnification (no - sign!)? 2. You put a convex lens with f=21.4 cm right next to a concave lens with f=-19.3 cm. The two lenses combined act like one single lens. What is the effective focal length of this...
A man is placed 20 cm to the left of a concave lens of focal length...

A man is placed 20 cm to the left of a concave lens of focal length 20 cm. If a convex lens is placed 50 cm to the right of the first lens, the screen must be placed 60 cm to the right of the convex lens for a sharp image of the man be formed on it. What is the focal length of the convex lens?

A contact lens has a convex and a concave side. The radius of curvature of the...

A contact lens has a convex and a concave side. The radius of curvature of the convex side is 1.5 cm. The radius of curvature of the concave side is 1.6 cm. The lens material has an index of refraction of 1.7. What is the focal length of the contact lens? (in cm] Answer: What is the optical power of the contact lens? ſin D] Answer:
