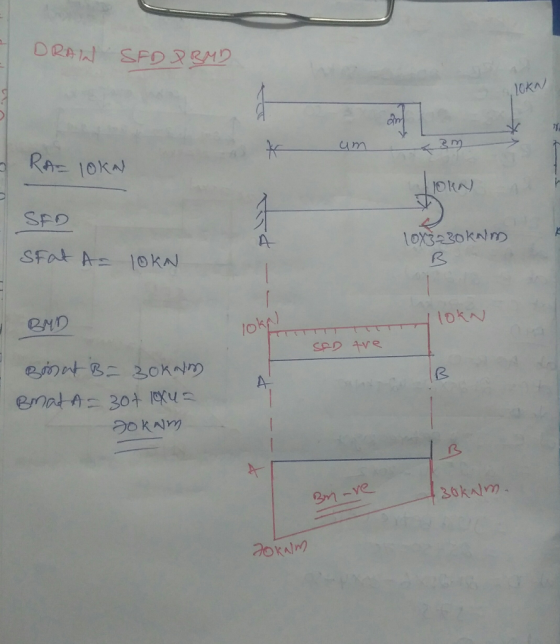

Draw shear force and bending moment diagrams for the following, giving all principal values. 50 KN...
draw axial force, shear force and bending moment
diagrams
2m 4'm 30 kN 2m 50 kN 4m A 3 m 1m -3m 1.5m
For the beam shown, draw the shear and bending moment diagrams and determine the magnitude and location of the maximum absolute values of bending moment knowing that a) M 0, b) M 12 kNm.(7, 30) 20 kN/m С В М A 2m- 2 m

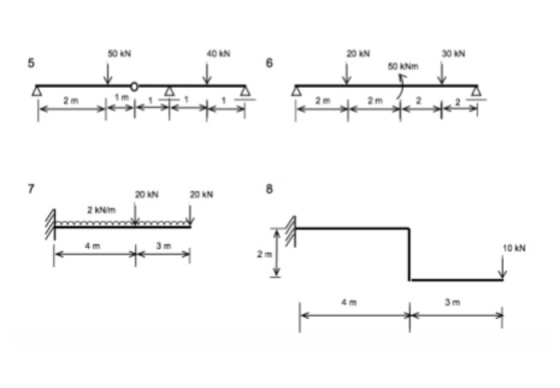

4. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 20 KN 40 KN B D 250 mm |--2.5 m- 3m-4-2 m 80 mm 5. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 50 KN
Normal force N, shear force V and bending moment M for
the frame shown in the figure
The method of cutting diagrams (using 8 cutting points in the
figure and their calculations
draw on paper).
please help.course name is building static 1.
15 kN/m 20 kNm 5 +6 T 2 m 3m a 20KN 7 B 2 A 8 HA 30 kN tu 3m . 2 4 3

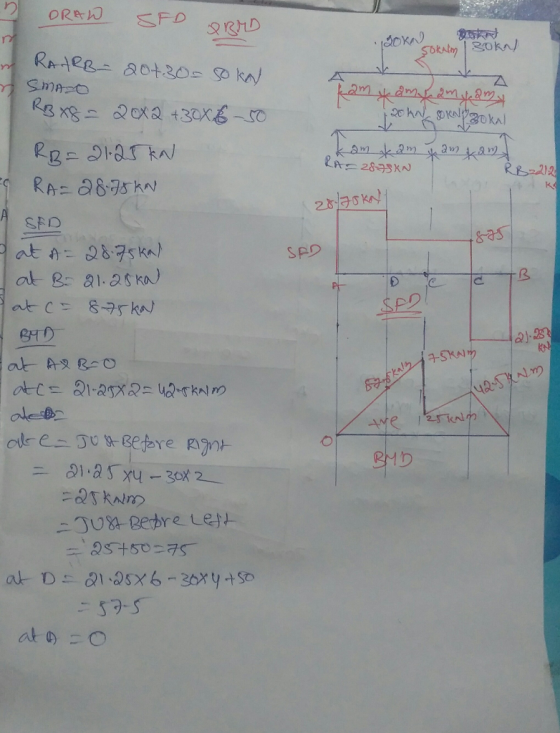

Draw the shear force and bending-moment diagrams for the simply
supported beam shown. Label each diagram with the corresponding
values
1. Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram with the corresponding values. 3 Pe= 30 KN 4 m - m 3 m - C -40 kN - m
Question 5 10 points Save Answ Draw the shear-force and bending-moment diagrams for the simply supported beam shown. Determine the bending moment 3.6 m to the right of point A if W = 9.1 kN/m, T = 17.34 kNm, m = 11.9 m, and n = 3.7 m. W T С о В n Question 6 10 points Save Answer Draw the shear-force and bending-moment diagrams for the simply supported beam shown. Determine the shear force 3.3 m to the...

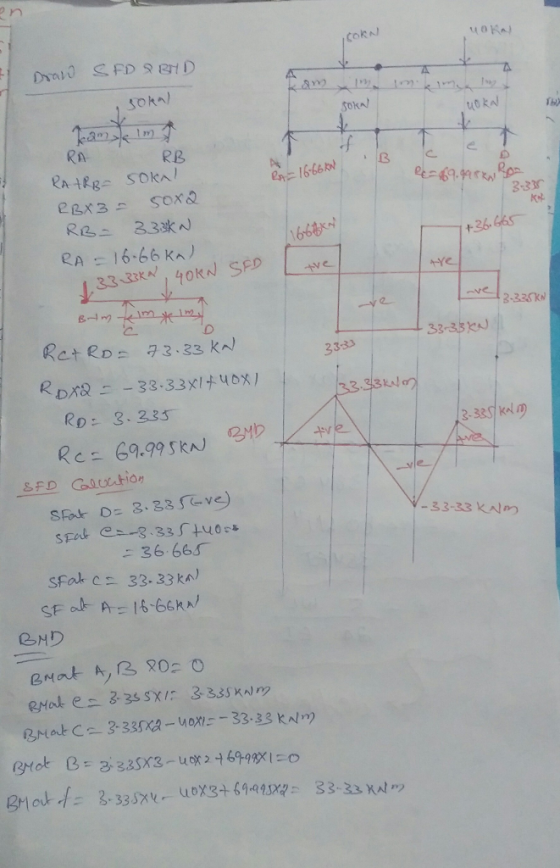

4. Draw shear force & bending moment diagrams for the shown beams 30 kN 20 kN IO kN m DY E 15 kN 1 kip/ft 27 kip.ft 4.5 ft
Problem 1: (30 points) Draw the shear force (V) and bending moment (M) diagrams for the beam AF given below. (B is a pin support, E is a roller support) Find the support reactions first. You are required to show the magnitude and location of all significant points. You don't have to find the equations defining the shear and moment diagrams unless necessary. However, indicate the order of all curves (e.g. 1" degree, 2nd degree, 3od degree). Ignore the depth...

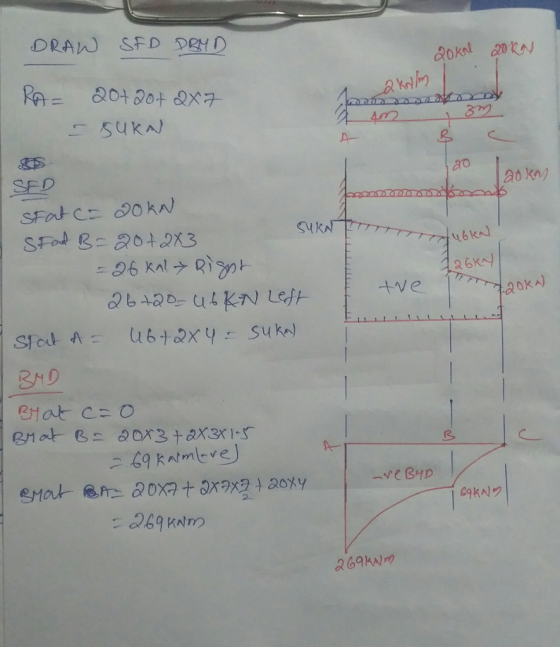

2 kN Draw the shear-force and bending-moment diagrams for the beam loaded by the 2-kN force and the 1.6 kN-m couple. State the value of the bending moment at point B. HW22-2 1.6 kN.m 0.5m 0.5 m 0.5 m
find
1) Draw shear force and bending moment diagrams for the beams subjected to the loadings shown below. Please show all your work SEN 25 N/m 45KM 10KN KN 15 2m 1 Im 2 3 m
