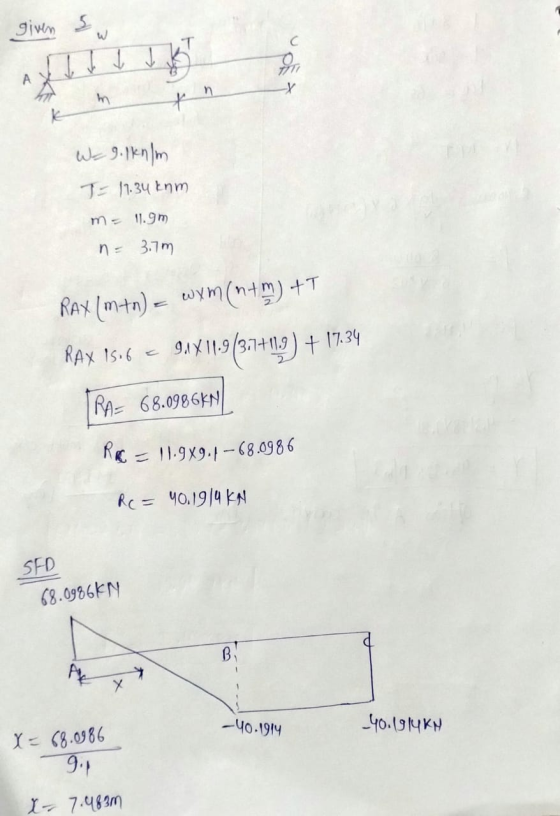

![given s ] А n m K W = 9.1kn/m T: 17.34 knm m 11.9m n = 3.7m RAX (min) = wym (ntm) +T RAX IS 6 = 91X 11.9(3.7+19) + 17,34 R= 6](http://img.homeworklib.com/questions/a8b63af0-0c3a-11eb-8c1e-e7357986eb40.png?x-oss-process=image/resize,w_560)

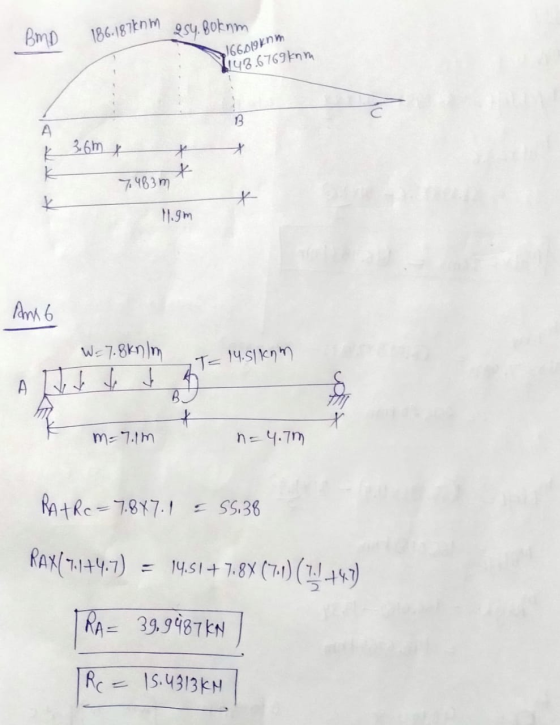

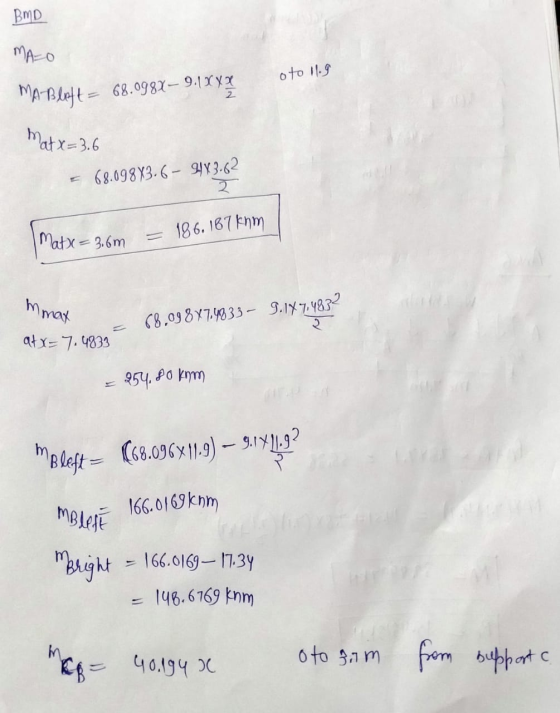

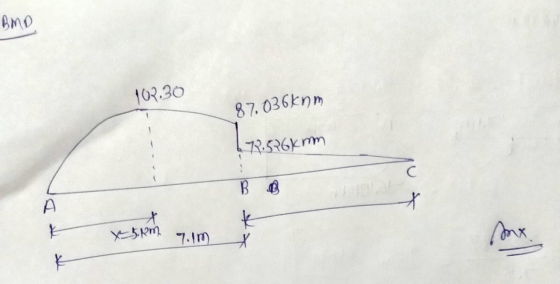

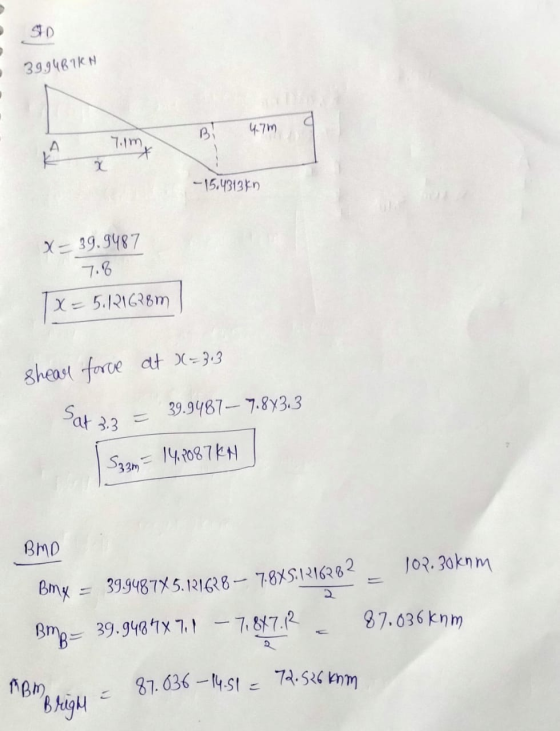

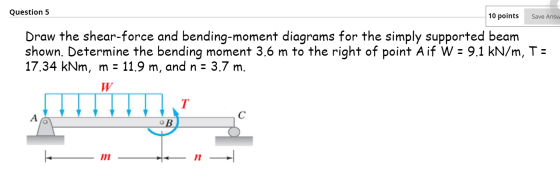

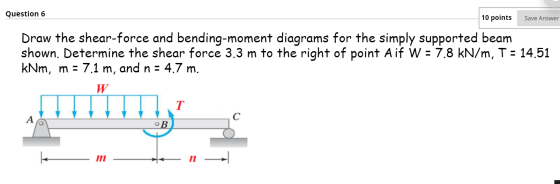

Question 5 10 points Save Answ Draw the shear-force and bending-moment diagrams for the simply supported...
Draw the shear force and bending-moment diagrams for the simply
supported beam shown. Label each diagram with the corresponding
values
1. Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram with the corresponding values. 3 Pe= 30 KN 4 m - m 3 m - C -40 kN - m
Q1. Draw the shear force and bending moment diagrams for the following cantilever beam (10 marks). Q2. Draw the shear force and bending moment diagrams for the following simply supported beam (10 marks). Q3. Draw the shear force and bending moment diagrams for the following simply supported beam with cantilever extension (15 marks). Q4. Draw the shear force and bending moment diagrams for the following compound beam (15 marks).
4. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 20 KN 40 KN B D 250 mm |--2.5 m- 3m-4-2 m 80 mm 5. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 50 KN
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. Additionally: (a) Determine V and M in the beam at a point located 1.50 m to the right of B. (b) Determine Vand M in the beam at a point located 1.25 m to the left of D. Leta - 3.0m, b = 6.1 m,w = 38 kN/m,...
Shear force and bending moments of the beam.
For the simply supported beam subjected to the loading shown in Figure P7.8 derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) plot the shear-force and bending-moment diagrams for the beam, using the derived functions. report the maximum positive bending moment, the maximum negative bending moment, and their respective locations.
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
For the beam shown, draw the shear and bending moment diagrams and determine the magnitude and location of the maximum absolute values of bending moment knowing that a) M 0, b) M 12 kNm.(7, 30) 20 kN/m С В М A 2m- 2 m
Draw shear force and bending moment diagrams for the
following, giving all principal values.
50 KN 40 KN 20 AN 30 AN 50 kNm 2m 2m 20 N 20KN kNm 4 m 10 KN 2 m 3 m
Problem 1: (30 points) Draw the shear force (V) and bending moment (M) diagrams for the beam AF given below. (B is a pin support, E is a roller support) Find the support reactions first. You are required to show the magnitude and location of all significant points. You don't have to find the equations defining the shear and moment diagrams unless necessary. However, indicate the order of all curves (e.g. 1" degree, 2nd degree, 3od degree). Ignore the depth...
1- Draw shear and bending moment diagrams for the following simply supported beams, find the location and magnitude of maximum moment for each one. Show all of your calculations. 1 kN 4 KN 2 kN (7marks) 5 kN/m TITIT 40 70 70 40 40 60 A B с TI G DE All distances in cm II- 3kN 1.5 kN/m A B с RA 6m 3m Rc
