Question

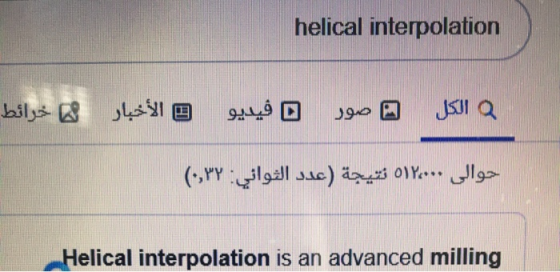

helical interpolation و الكل ق صور ك فيديو @ الأخبار ا خرائط حوالی ۵۱۲۰۰۰ نتيجة (عدد القواني: ۳۷) Helical interpolation is an advanced milling

Answer 1

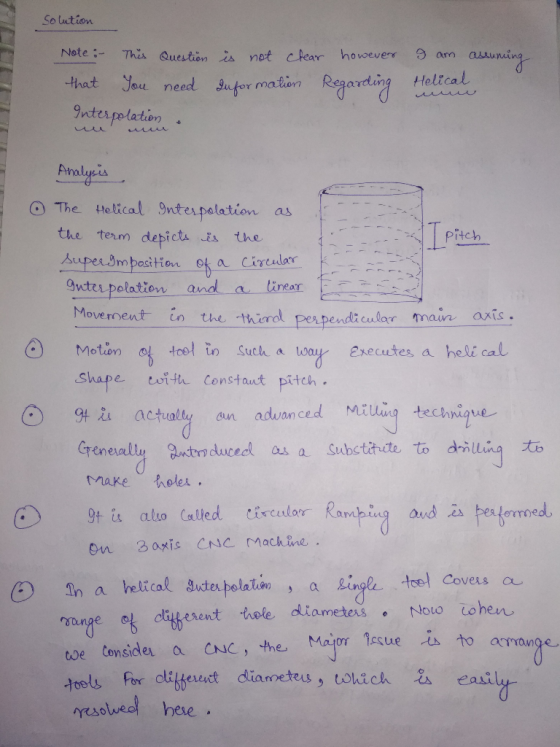

Solution Note :- This Question is not clear however that you need Information Regarding Interpolation . un um I am assuming Helican I pitch Analysis ① The Helical Interpolation as the term depicts is the superimposition of a Circular Interpolation and a linear E Movement in the third perpendicular main axis. Motion of tool in such a way executes a helical Shape with constant pitch. l It is actually an advanced Milling technique Generally Introduced as a substitute to drilling to Make holes, It is also called circular Ramping and is performed on 3 axis CNC Machine. ③ In a helical Interpolation, a single tool covers a range of different hole diameters . Now when we consider a CNC, the major issue is to arrange tools for different diameters, which is easily resolved here.

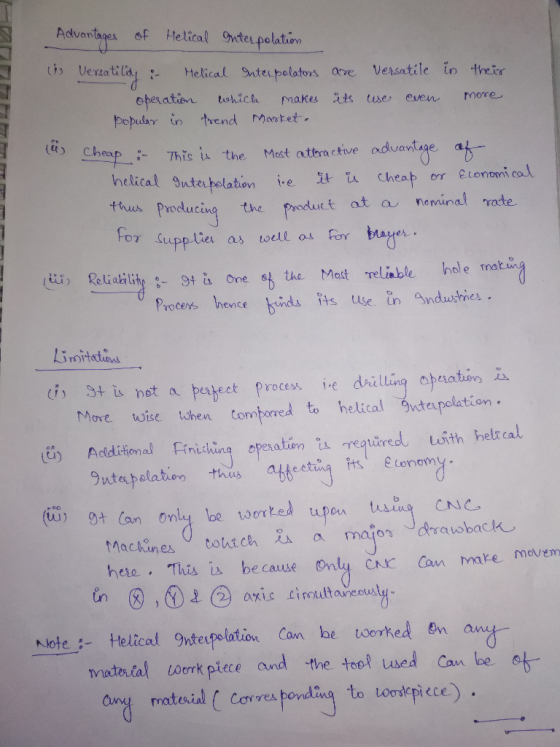

Advantages of Helical Onterpolation it I (1) Versatility & Helical Interpolators are versatile in their operation which makes its use even more popular in trend Market. Cheap : This is the most attractive advantage of helical Interpolation ie it is cheap or Economical this producing the product at a nominal rate for supplier as well as for brayer. Reliability : It is one of the Most reliable hole making Process hence finds its use in Industries. i Limitations i It is not a perfect process ire drilling operation is More wise when compared to helical Interpolation. (ů Additional Finishing operation is required with helical Interpolation thus affecting its Economy. (u) gt can only be worked upon using CNC Machines which is a major drawback here. This is because Only CNC can make movem in ① & ② axis simultaneously Note :- Helical Interpolation can be worked on any material workpiece and the tool used can be of any material ( corresponding to loosepiece).
note: i have tried to add maximum information required for this answer. I hope i did justice to you madam/sir. Thank you
