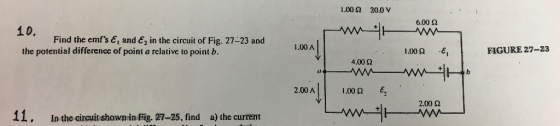

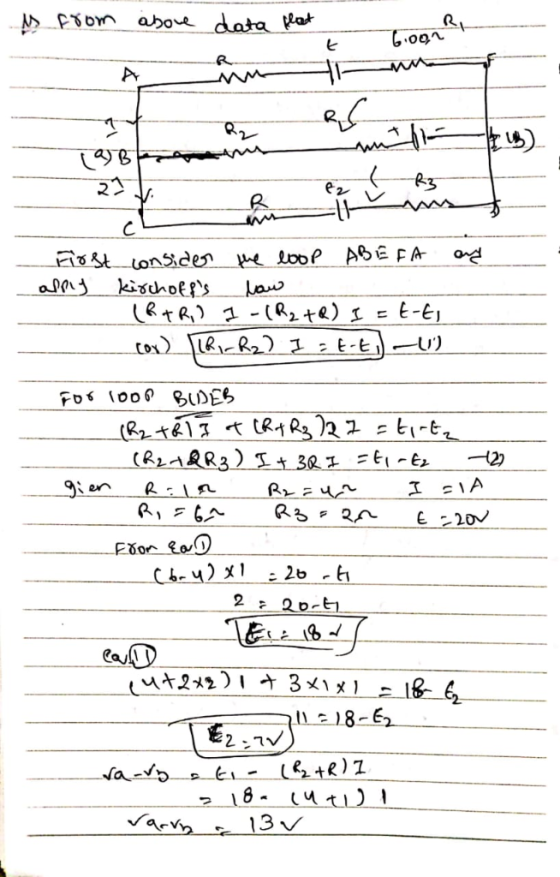

1.00Ω 20.0 V 6.00 Ω 10. Find the emf's , and ez in the circuit of...
For the circuit shown in Fig. 6, calculate:(a) the current in the 2.00−Ω resistor.(b) the potential...
For the circuit shown in Fig. 6, calculate:(a) the current in
the 2.00−Ω resistor.(b) the potential difference between points a
and b.
Assume that the components on Fig. 7 have the following
values:V1 = 10.0 V , V2 = 15.0 V , R1 = 5.0 Ω, R1 = 5.00 Ω, R2 =
10.0 Ω, R3 = 15.0 Ω, R4 = 20.0 Ω. (a) Find the current trough each
branch of the circuit. (b) Find the power dissipated in each
circuit...
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the resistors in the circuit diagram below are Ri 1.002, R2 2.00 2, R3-3.00 2, and R4 4.00 Ω-The battery provides a pot...
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the resistors in the circuit diagram below are Ri 1.002, R2 2.00 2, R3-3.00 2, and R4 4.00 Ω-The battery provides a potential difference of 6.00 V. Which of the following is CLOSEST TO, EVEN IF NOT EQUAL TO, the current through R3? (A) 0.078A (B) 0.132 A (C) 0.276 A (D) 0.387 A 9. Ri 6V R2 R4
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the...
Using Kirchhoff's rules, find the following. (Ez = 70.4 V, &z = 61.5 V, and ag...
Using Kirchhoff's rules, find the following. (Ez = 70.4 V, &z = 61.5 V, and ag = 79.4 V.) 4.00 12 E R ES R, 3.00 k. 2.00 K12 a R (a) the current (in mA) in each resistor shown in the figure above mA IR IR 2 ma IR 3 mA (b) the potential difference between points c and f(Give the magnitude of your answer in volts and select the point of highest potential.) magnitude of potential difference V...
QUESTION 6 In the circuit shown in the figure below R1 . 3.8 Ω R2·6 Ω...
QUESTION 6 In the circuit shown in the figure below R1 . 3.8 Ω R2·6 Ω R3 2.8 Ω 11 . 3.1 A 12 5.4 Aand -1 9 A Calculate the po er produced or consumed y the emf2 (Give your answer in algebraic decimal: (+) if the emf produces electrical power and () of the emf consumes electrical power. Use "W" as unit) e1 e2 Ry QUESTION 7 In the circuit shown in the figure below ε1-8 V and...
For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0...
For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0 V 4,00 Ω 2.00 Ω (a) Calculate the current in the 2.00 Ω resistor. (Enter the magnitude.) mA (b) Calculate the potential difference between points a and b. The ammeter shown in the figure below reads 2.94 A. Find the following. 15.0 V 7.00 Ω 5.00 Ω 2.00 Ω ε (a) 1A Consider the following figure, where ε,-12 V and ε2-9.2 v. 10.011 6.00...
In the circuit in the figure, a battery supplies Vemf-23.0 V and R1-8.00 Ω, R2-6.00 Ω,...
In the circuit in the figure, a battery supplies Vemf-23.0 V and R1-8.00 Ω, R2-6.00 Ω, and L-4.00 H. Calculate each of the following a long time after the switch is closed: a) the magnitude of the current flowing out of the battery? 6.708 A emf Computer's answer now shown above. Tries 0/5 b) the magnitude of the current through R1 2.875 A Computer's answer now shown above. Tries 0/5 c) the magnitude of the current through R2 3.833 A...
Chapter 27, Problem 21. Find the current through each resistor in the circuit shown in Figure...
Chapter 27, Problem 21. Find the current through each resistor in the circuit shown in Figure 27.P10 Find the potential difference between points A and H. Which point is at the higher potential? Use these values: epsilon_i - 12.0 V, epsilon_2 = 8.00 V. R_1 = 4.00 k Ohm, R_2 = 4.00 k Ohm, R_3 = 2.00 k Ohm
In the circuit in the figure below, determine the following 40.0 V 200 Ω 80.0 Ω...
In the circuit in the figure below, determine the following 40.0 V 200 Ω 80.0 Ω 20.0 Ω 70.0 Ω (a) the current in each resistor (Indicate the direction of the current flow through each resistor through the sign of your answer. Take upward current flow as positive.) Resistor (N) Current (A) 200 80.0 Note that the sum of the potential drops around the left-most loop is not zero with your value of the current through the 200-2 resistor. 20.0...
Consider the circuit shown in the figure below. (AssumeR1 = 14.0 Ω and R2 =...
Consider the circuit shown in the figure below. (AssumeR1 = 14.0 Ω and R2 = 3.50
Ω.)(a) Find the potential difference between points a andb. (V)(b) Find the current in the 20.0-Ω resistor. (A)
Consider the circuit shown in the figure below. (Assume R1: 11.0 Ω and R,-8.00 Ω.) 25.0...
Consider the circuit shown in the figure below. (Assume R1: 11.0 Ω and R,-8.00 Ω.) 25.0 V Ri Ri 20.0 Ω (a) Find the potential difference between points a and b. Your response differs from the correct answer by more than 100%. V (b) Find the current in the 20.0-2 resistor
For the circuit shown in Fig. 6, calculate:(a) the current in
the 2.00−Ω resistor.(b) the potential difference between points a
and b.
Assume that the components on Fig. 7 have the following
values:V1 = 10.0 V , V2 = 15.0 V , R1 = 5.0 Ω, R1 = 5.00 Ω, R2 =
10.0 Ω, R3 = 15.0 Ω, R4 = 20.0 Ω. (a) Find the current trough each
branch of the circuit. (b) Find the power dissipated in each
circuit...
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the resistors in the circuit diagram below are Ri 1.002, R2 2.00 2, R3-3.00 2, and R4 4.00 Ω-The battery provides a potential difference of 6.00 V. Which of the following is CLOSEST TO, EVEN IF NOT EQUAL TO, the current through R3? (A) 0.078A (B) 0.132 A (C) 0.276 A (D) 0.387 A 9. Ri 6V R2 R4
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the...
Using Kirchhoff's rules, find the following. (Ez = 70.4 V, &z = 61.5 V, and ag = 79.4 V.) 4.00 12 E R ES R, 3.00 k. 2.00 K12 a R (a) the current (in mA) in each resistor shown in the figure above mA IR IR 2 ma IR 3 mA (b) the potential difference between points c and f(Give the magnitude of your answer in volts and select the point of highest potential.) magnitude of potential difference V...
QUESTION 6 In the circuit shown in the figure below R1 . 3.8 Ω R2·6 Ω R3 2.8 Ω 11 . 3.1 A 12 5.4 Aand -1 9 A Calculate the po er produced or consumed y the emf2 (Give your answer in algebraic decimal: (+) if the emf produces electrical power and () of the emf consumes electrical power. Use "W" as unit) e1 e2 Ry QUESTION 7 In the circuit shown in the figure below ε1-8 V and...
For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0 V 4,00 Ω 2.00 Ω (a) Calculate the current in the 2.00 Ω resistor. (Enter the magnitude.) mA (b) Calculate the potential difference between points a and b. The ammeter shown in the figure below reads 2.94 A. Find the following. 15.0 V 7.00 Ω 5.00 Ω 2.00 Ω ε (a) 1A Consider the following figure, where ε,-12 V and ε2-9.2 v. 10.011 6.00...
In the circuit in the figure, a battery supplies Vemf-23.0 V and R1-8.00 Ω, R2-6.00 Ω, and L-4.00 H. Calculate each of the following a long time after the switch is closed: a) the magnitude of the current flowing out of the battery? 6.708 A emf Computer's answer now shown above. Tries 0/5 b) the magnitude of the current through R1 2.875 A Computer's answer now shown above. Tries 0/5 c) the magnitude of the current through R2 3.833 A...
Chapter 27, Problem 21. Find the current through each resistor in the circuit shown in Figure 27.P10 Find the potential difference between points A and H. Which point is at the higher potential? Use these values: epsilon_i - 12.0 V, epsilon_2 = 8.00 V. R_1 = 4.00 k Ohm, R_2 = 4.00 k Ohm, R_3 = 2.00 k Ohm
In the circuit in the figure below, determine the following 40.0 V 200 Ω 80.0 Ω 20.0 Ω 70.0 Ω (a) the current in each resistor (Indicate the direction of the current flow through each resistor through the sign of your answer. Take upward current flow as positive.) Resistor (N) Current (A) 200 80.0 Note that the sum of the potential drops around the left-most loop is not zero with your value of the current through the 200-2 resistor. 20.0...
Consider the circuit shown in the figure below. (Assume R1: 11.0 Ω and R,-8.00 Ω.) 25.0 V Ri Ri 20.0 Ω (a) Find the potential difference between points a and b. Your response differs from the correct answer by more than 100%. V (b) Find the current in the 20.0-2 resistor
