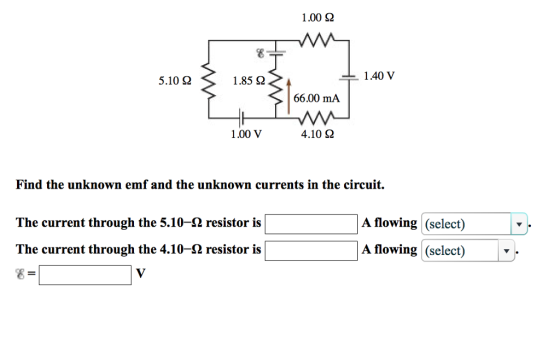

1.00 Ω 5.10 Ω 1.85 Ω 1.40 v 66.00 mA 1.00 V 4.10 Ω Find the unknown emf and the unknown currents in the circuit. The current through the 5.10-Ω resistor is A flowing (select) The current through the 4.10-Ω resistor is A flowing (select)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

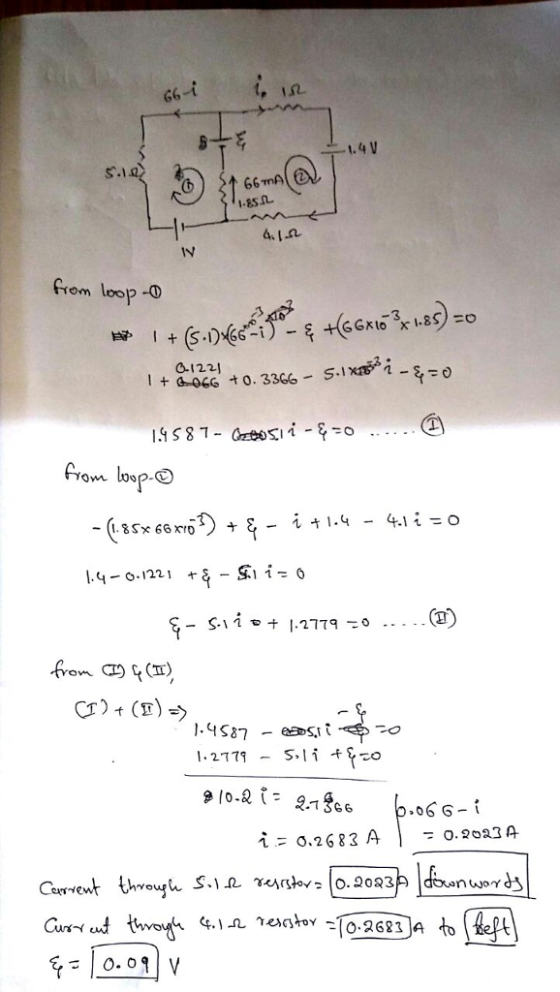

IN from loop -o 0-122 from loop-® CT) 乍esary.-Το 2623 IA to (4eft Cur4ad two 4.ia
