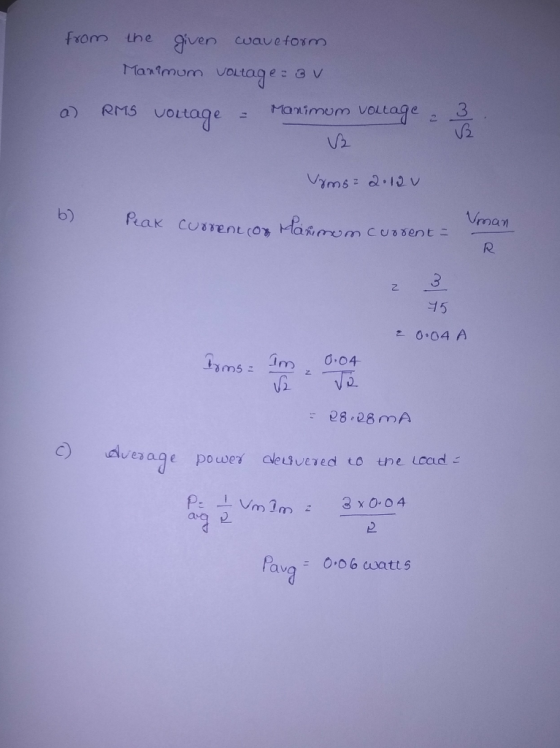

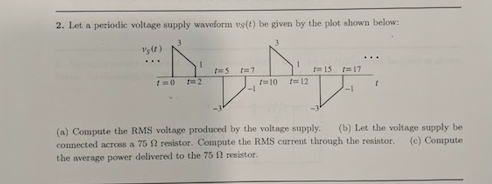

2. Let a periodic voltage supply waveform us(t) be given by the plot shown below: sit)...
2. Consider the periodic waveform illustrated below. (The period is 10 ms, and two periods are shown.) (a) Determine the rms voltage. (b) If this voltage waveform is applied across a 0.5 Ohm resistor, determine the average power delivered to this resistor, and the rms current in the resistor. v(t) (Volts) VA 1 2 4 6 8 10 place in the 12 14 16 18 20 t (ms) -10 +
Problem 3 The periodic voltage source in the circuit shown in Figure P3 (a) has the waveform shown in Figure P3 (b). a) Derive the expression for Cn b) Find the values of the complex coefficients Co, C1, C1, C 2, C2, C3, C3, C4, and C4 for the input voltage vg, if V,-54 V and T-10π us c) Repeat b) for Vo. d) Use the complex coefficients found in c) to estimate the average power delivered to the 250...
A voltmeter and an ammeter are used to respectively monitor the voltage across and the current through a resistor connected to an AC source. If the resistor has a value of 14.0 Ω and the ammeter reads 8.04 A, determine the following. (a) the rms voltage (in V) across the resistor V (b) the peak voltage (in V) of the source V (c) the maximum current (in A) in the resistor A (d) the average power (in W) delivered to...
A power supply that provides a voltage of 38.0 V·sin(245·t), where t is in seconds, is connected across a resistor R = 135 Ω. Calculate the average power dissipated in the resistor. (in W)
Problem 13. The voltage across a 6 uF capacitor is given by the waveform shown below. Plot the current through the capacitor. A v() (V) 10 0.S t (ms -10- Problem 14 Find Rt in the circuit shown below in order to achieve maximum power transfer. 2 k2 RL 12 V+
A circuit consists of two resistors connected in series with a
power supply, as shown in the figure. The resistance of ?1 is less
than the resistance of ?2.
A series circuit with two resistors R subscript 1 and R
subscript 2. R subscript 1 is connected to the positive terminal of
the power supply, and is the first resistor in the circuit.
Which resistor has the greater current flowing through
it?
?2
?1
The current through each resistor is...
The current in 5 mH inductor is periodic and triangular as shown
below.
a. Plot the inductor voltage vs. time (using the relationship
that v(t) = L di/dt).
b. Plot the instantaneous power vs. time.
c. Determine the average power of the inductor (computed over
the period of the waveform, 2 ms).
i(t) 4 A 0 2 ms 3 ms 4 ms 1 ms
2. Given the voltage waveform in Figure. a). What is the frequency of the signal? b).What is the phase shift of the waveform? c) What is the maximum amplitude of the AC signal? d). What is the sine function that describes the waveform? e). What is the cosine function that describes the waveform? * Plot of a sinusoidal signal Magnitude -15 --20 -25 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 Time (ms) Figure P4.1 AC Signal to be Analyzed...
Question 1. (a) Consider the waveform below that has a period of T of 0.04 seconds. What is the rms voltage of this waveform? V(t) 15 V 0.01 s 0.02 s T=0.04s (b) The figure below shows a network of resistances and reactances having values as shown connected to a voltage source with a voltage of (50+0j) volts rms and an angular frequency of 1000 rad/s. А. 32 3 mH V 52 200 uF 2 mH 1 mH (i) Redraw...
7. A periodic triangular-wave voltage source (t)is applied to an RLC circuit (both are shown below). Estimate the average power delivered to the 20 kΩ resistor when the circuit is operating in steady-state. Hint: 200 Σ nz sin 4(t) = 25 + sin(na0t) n=1 n=odd 20 mH 50 pF 20 kΩ % (V) 50 r (As) 3
