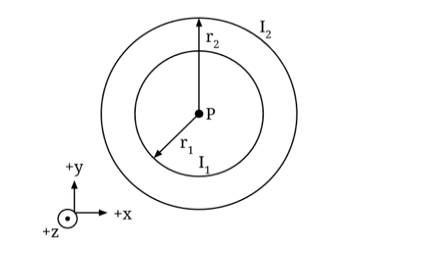

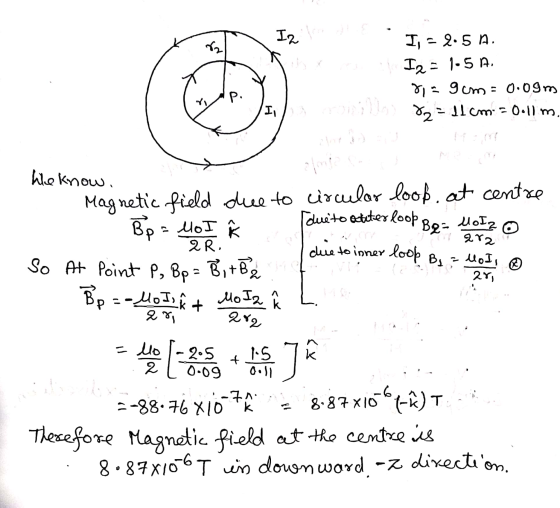

Two current loops are positioned around the same center point P. The inner loop has radius r1r1 = 9 cmcm and current I1I1 = 2.5 AA , the outer loop has radius r2r2 = 11 cmcm and current I2I2 = -1.5 AA . What is the B field at the center point P?
Note: a positive current denotes counter-clockwise flow, and a negative current denotes clockwise flow.
Homework Answers
Add Answer to:
Two current loops are positioned around the same center point P.
The inner loop has radius...
Two circular current-carrying loops of wire are shown in the drawing. The inner loop has a...
Two circular current-carrying loops of wire are shown in the drawing. The inner loop has a radius of R0 and carries a current I0, while the outer loop has a radius of 2R0 and carries a current of 4I0. The currents are in opposite directions. If R0 = 0.20 m and I0 = 2.3 A, determine the magnitude and direction of the net magnetic field at the center of the two loops.
Two concentric current loops lie in the same plane. The smaller loop has a radius of...
Two concentric current loops lie in the same plane. The smaller loop has a radius of 3.0 cm and a current of 12 A. The bigger loop has a current of 20 A. The magnetic field at the center of the loops is found to be zero. What is the radius of the bigger loop?
Two concentric current loops lie in the same plane. The smaller loop has a radius of...
Two concentric current loops lie in the same plane. The smaller loop has a radius of 3.4cm and a current of 12 A. The bigger loop has a current of20 A . The magnetic field at the center of the loops is found to be zero. What is the radius of the bigger loop? Express your answer to two significant figures and include the appropriate units.
Two concentric current loops lie in the same plane. The smaller loop has a radius of...
Two concentric current loops lie in the same plane. The smaller loop has a radius of 26 cm and a current of 12 A. The bigger loop has a current of 20 A. The magnetic field at the center of the loops is found to be zero. Wo = 126 x 10-T m/A) Part A What is the radius of the bigger loop? Express your answer with the appropriate units. h RE Value Units Submit Request Answer
Two concentric current loops lie in the same plane. The smaller loop has a radius of...
Two concentric current loops lie in the same plane. The smaller loop has a radius of 2.3 cm and a current of 12 A. The bigger loop has a current of 20 A . The magnetic field at the center of the loops is found to be zero. You may want to review (Pages 774 - 775) . Part A What is the radius of the bigger loop? Express your answer to two significant figures and include the appropriate units....
A loop of wire is in the shape of two concentric semicircles as shown. (Figure 1) The inner circle has radius a; the ou...
A loop of wire is in the shape of two concentric semicircles as
shown. (Figure 1) The inner circle has radius a; the outer circle
has radius b. A current I flows clockwise through the outer wire
and counterclockwise through the inner wire. What is the direction
of the magnetic field at the center of the semicircles?
Question 4 A loop of wire is in the shape of two concentric semicircles as shown. (Eigure 1) The inner circle has radius...
The figure below shows two concentric, conducting loops. We will define a counterclockwise current (viewed from...
The figure below shows two concentric, conducting loops. We will define a counterclockwise current (viewed from above) to be positive, a clockwise current to be negative. The graph shows the current in the outer loop as a function of time. Sketch a graph that shows the induced current in the inner loop. Explain.
Two identical circular thin-wire loops carry the same current I=10.4 A and are positioned "parallel" to...
Two identical circular thin-wire loops carry the same current
I=10.4 A and are positioned "parallel" to each
other as illustrated in the figure below. The planes of the loops
are perpendicular to the line connecting their centers
O1 and O2. The radius of the loops
a=1.18 cm and the distance between the loop
planes b=0.944 cm.
What is the magnitude B1 of the
magnetic field at point O1?:
B1= _____ G.
What is the magnitude B2 of the
magnetic field...
Two identical circular thin-wire loops carry the same current I=6.5 A and are positioned "parallel" to...
Two identical circular thin-wire loops carry the same current
I=6.5 A and are positioned "parallel" to each
other as illustrated in the figure below. The planes of the loops
are perpendicular to the line connecting their centers
O1 and O2. The radius of the loops
a=0.46 cm and the distance between the loop
planes b=0.575 cm.
What is the magnitude B1 of the
magnetic field at point O1?:
B1= ______ G.
What is the magnitude B2 of the
magnetic field...
Q1. (40 points) The closed loop shown in the figure carries a current of 3.0 A...
Q1. (40 points) The closed loop shown in the figure carries a current of 3.0 A in the clockwise direction. The radius of the outer arc is 0.40 m and spans over an angle of 320°and radius of inner arc is 0.30 m and spans over an angle of 40°. Point P is at the center of both arcs. a) (10 points) Calculate the magnetic field vector at point P due to outer arc. b) (10 points) Calculate the magnetic...
Two concentric current loops lie in the same plane. The smaller loop has a radius of 26 cm and a current of 12 A. The bigger loop has a current of 20 A. The magnetic field at the center of the loops is found to be zero. Wo = 126 x 10-T m/A) Part A What is the radius of the bigger loop? Express your answer with the appropriate units. h RE Value Units Submit Request Answer
A loop of wire is in the shape of two concentric semicircles as
shown. (Figure 1) The inner circle has radius a; the outer circle
has radius b. A current I flows clockwise through the outer wire
and counterclockwise through the inner wire. What is the direction
of the magnetic field at the center of the semicircles?
Question 4 A loop of wire is in the shape of two concentric semicircles as shown. (Eigure 1) The inner circle has radius...
The figure below shows two concentric, conducting loops. We will define a counterclockwise current (viewed from above) to be positive, a clockwise current to be negative. The graph shows the current in the outer loop as a function of time. Sketch a graph that shows the induced current in the inner loop. Explain.
Two identical circular thin-wire loops carry the same current
I=10.4 A and are positioned "parallel" to each
other as illustrated in the figure below. The planes of the loops
are perpendicular to the line connecting their centers
O1 and O2. The radius of the loops
a=1.18 cm and the distance between the loop
planes b=0.944 cm.
What is the magnitude B1 of the
magnetic field at point O1?:
B1= _____ G.
What is the magnitude B2 of the
magnetic field...
Two identical circular thin-wire loops carry the same current
I=6.5 A and are positioned "parallel" to each
other as illustrated in the figure below. The planes of the loops
are perpendicular to the line connecting their centers
O1 and O2. The radius of the loops
a=0.46 cm and the distance between the loop
planes b=0.575 cm.
What is the magnitude B1 of the
magnetic field at point O1?:
B1= ______ G.
What is the magnitude B2 of the
magnetic field...
Q1. (40 points) The closed loop shown in the figure carries a current of 3.0 A in the clockwise direction. The radius of the outer arc is 0.40 m and spans over an angle of 320°and radius of inner arc is 0.30 m and spans over an angle of 40°. Point P is at the center of both arcs. a) (10 points) Calculate the magnetic field vector at point P due to outer arc. b) (10 points) Calculate the magnetic...
