Homework Answers

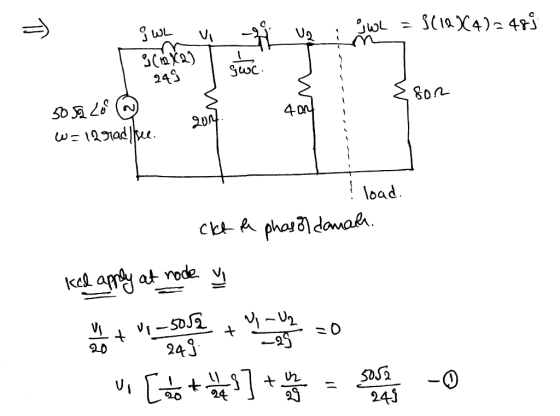

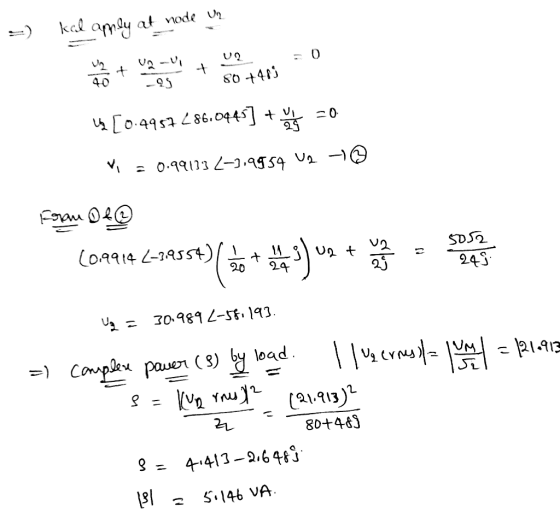

![=) kol aply at node U? 02 0 u [0.4957 286.0945] + =0 Vi = 0.991332–3.9959 Up - © Iran De (02914 Z-1558)( 60 + $5) we try some](http://img.homeworklib.com/questions/970648c0-1662-11ec-987e-e1f3e1516b46.png?x-oss-process=image/resize,w_560)
Add Answer to:

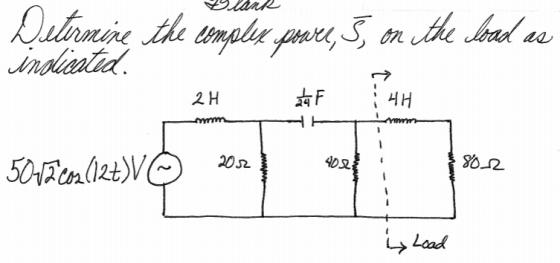

Blank Determine the comply poare, 5, on the load as indicated. 2HF 4H श्य 4H Lam...
Determine the Shear, axial load and moment at 2 meters from A, at B and half...
Determine the Shear, axial load and moment at 2 meters from A,
at B and half of BC.
B А tant 8 m 4 m 12 k 5.16. 40 k-ft B G 12 12—7—10'-to-8'- 30 KN 5.17. 25 kN/m 111 A fone Hinge 6 m tanto 15 kN/m 5.18. 20 kN V В CHITZ 5 m ATA 10 m 100
04- Chapter 8 Synchronous Motors Referring to the v curves in Figure 8 13,the machne is at 50% load with a Unity Power Factor Mark the operating point on the V-curve and estimate or determine The...
04- Chapter 8 Synchronous Motors Referring to the v curves in Figure 8 13,the machne is at 50% load with a Unity Power Factor Mark the operating point on the V-curve and estimate or determine The excitation voltage to maintain unity power factor is the machine is loaded to 50% (a) (b'"the load is increased to 100% and the field current is not changed, will the machine pull out of (c) tfthe load is increased to 15% and the field...
Problem 10.44 ? 5of8 Part A Determine the load impedance for the circuit shown in the...
Problem 10.44 ? 5of8 Part A Determine the load impedance for the circuit shown in the figure that will result in maximum average power being transferred to the load if ?-5 krad /s. (Figure 1) Express your answer in complex form. Figure of 1 S2 Submit 8 mH Part B 4012 Determine the maximum average power delivered to the load from part A if t, 80 cos 5000t V Express your answer with the appropriate units.
Check my work indicated by a minus sign. Round your answers to 1 decimal place.) Stock...
Check my work indicated by a minus sign. Round your answers to 1 decimal place.) Stock Price Profit 40% 45 El 50 v. $ 60 ences b. What will be the profit to an investor who buys the put for $5 in the following scenarios for stock prices in 6 months? () $40; (ii) $45; (I) $50; (IV) $55: (V) $60. (Leave no cells blank.be certain to enter "0" wherever required. Negative amounts should be indicated by a minus sign....
3-5 12. Perform the indicated operation. (8-V-45) – (3 + V-80) b.
3-5 12. Perform the indicated operation. (8-V-45) – (3 + V-80) b.
for the enhancement-type MOSFET circuit by plotting the 5. B) Determine IDo and transfer curve and...
for the enhancement-type MOSFET circuit by plotting the 5. B) Determine IDo and transfer curve and then using load line analysis. VDSQ A lp-mA 12 11 9 12 V 8 Rp 2 kn 7- 6 1 pF Ra 10 MQ 3- IDce)-6 mA Vast-8 V Vasm-3 V &-20 uS 2 1 uF 9 10 11 12 (Von) 8 Vas a) k Ipso = VDSQ b) Using gos 20 uS i) Determine gm ii) Find ra iii) Calculate Z and Zo...
Problem 2: A 10 KVA 2200/220 V, 50 Hz transformer core and full load copper losses...
Problem 2: A 10 KVA 2200/220 V, 50 Hz transformer core and full load copper losses are given as PCore = 153 W, PCu = 224 W. a) Find the maximum efficiency b) Determine the all-day efficiency under following load pattern: 1. 2 hrs at 5/4 load 2. 6 hrs at full load 3. 8 hrs at 2 load 4. 4 hrs at 4 load 5. 4 hrs at no load
1. House of 40 ’x 40’, with a voltage of 120/240 V. Determine the load by:...
1. House of 40 ’x 40’, with a voltage of 120/240 V. Determine the load by: a) Classic Method b) Optional Method In addition to the basic loads, the house has: • 3 units of 12 kBTU air conditioners (240 V, 10.41 A) • 1⁄2 Hp tank pump (120 V, 5 A) 2. What is the difference between the methods? What is the correct method?
5. Determine the allowable load capacity (Pa) for an Fy 50 ksi steel column, W12x65 when...
5. Determine the allowable load capacity (Pa) for an Fy 50 ksi steel column, W12x65 when L 18'. The base and top are both fixed. (10 Points)
Use the Method Below 1. Use the method presented in lecture (matched source on one side; matched load on the other) to...
Use the Method Below
1. Use the method presented in lecture (matched source on one side; matched load on the other) to determine the scattering parameters of the normalized two-port circuit below. Calculate the scattering parameters of the circuit below when used in a 50 2 system 50 Ω 100 Ω Sol: we first normalize the impedance values of the circuit to 50 Ω . To find the scattering parameters Si and S1, attach a matched source to port 1...
Determine the Shear, axial load and moment at 2 meters from A,
at B and half of BC.
B А tant 8 m 4 m 12 k 5.16. 40 k-ft B G 12 12—7—10'-to-8'- 30 KN 5.17. 25 kN/m 111 A fone Hinge 6 m tanto 15 kN/m 5.18. 20 kN V В CHITZ 5 m ATA 10 m 100
04- Chapter 8 Synchronous Motors Referring to the v curves in Figure 8 13,the machne is at 50% load with a Unity Power Factor Mark the operating point on the V-curve and estimate or determine The excitation voltage to maintain unity power factor is the machine is loaded to 50% (a) (b'"the load is increased to 100% and the field current is not changed, will the machine pull out of (c) tfthe load is increased to 15% and the field...
Problem 10.44 ? 5of8 Part A Determine the load impedance for the circuit shown in the figure that will result in maximum average power being transferred to the load if ?-5 krad /s. (Figure 1) Express your answer in complex form. Figure of 1 S2 Submit 8 mH Part B 4012 Determine the maximum average power delivered to the load from part A if t, 80 cos 5000t V Express your answer with the appropriate units.
Check my work indicated by a minus sign. Round your answers to 1 decimal place.) Stock Price Profit 40% 45 El 50 v. $ 60 ences b. What will be the profit to an investor who buys the put for $5 in the following scenarios for stock prices in 6 months? () $40; (ii) $45; (I) $50; (IV) $55: (V) $60. (Leave no cells blank.be certain to enter "0" wherever required. Negative amounts should be indicated by a minus sign....
3-5 12. Perform the indicated operation. (8-V-45) – (3 + V-80) b.
for the enhancement-type MOSFET circuit by plotting the 5. B) Determine IDo and transfer curve and then using load line analysis. VDSQ A lp-mA 12 11 9 12 V 8 Rp 2 kn 7- 6 1 pF Ra 10 MQ 3- IDce)-6 mA Vast-8 V Vasm-3 V &-20 uS 2 1 uF 9 10 11 12 (Von) 8 Vas a) k Ipso = VDSQ b) Using gos 20 uS i) Determine gm ii) Find ra iii) Calculate Z and Zo...
Problem 2: A 10 KVA 2200/220 V, 50 Hz transformer core and full load copper losses are given as PCore = 153 W, PCu = 224 W. a) Find the maximum efficiency b) Determine the all-day efficiency under following load pattern: 1. 2 hrs at 5/4 load 2. 6 hrs at full load 3. 8 hrs at 2 load 4. 4 hrs at 4 load 5. 4 hrs at no load
5. Determine the allowable load capacity (Pa) for an Fy 50 ksi steel column, W12x65 when L 18'. The base and top are both fixed. (10 Points)
Use the Method Below
1. Use the method presented in lecture (matched source on one side; matched load on the other) to determine the scattering parameters of the normalized two-port circuit below. Calculate the scattering parameters of the circuit below when used in a 50 2 system 50 Ω 100 Ω Sol: we first normalize the impedance values of the circuit to 50 Ω . To find the scattering parameters Si and S1, attach a matched source to port 1...
