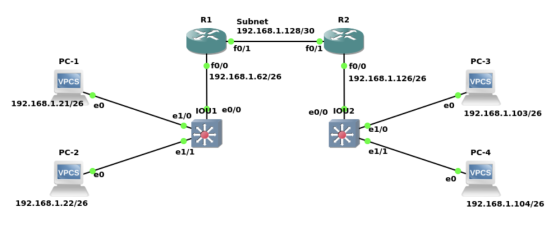

Given This picture,
1. What is the subnet for the devices connected to IOU 1 and 2. What is the subnet for the devices connected to IOU 2.
Homework Answers
1. What is the subnet for the devices connected to IOU 1
Devices connected to IOU 1 are
192.168.1.21/26
192.168.1.22/26
Network Interface address is: 192.168.1.62/26
Here the network prefix is 26 so,take any address from the following subnet and convert to binary form and take its first 26 bits and remaining as zero’s then that will give the subnet id of that particular subnet
(where the network prefix is given in the address)
Binary equivalent of 192 is : 11000000
Binary equivalent of 168 is : 10101000
Binary equivalent of 1 is : 00000001
Binary equivalent of 21 is : 00010101
192.168.1.21 is : 11000000.10101000.00000001.00010101
take the first 26 bit and remaining as zeros
11000000.10101000.00000001.00000000 = 192.168.1.0
subnet id is : 192.168.1.0
Note: If you do this above operation with the address 192.168.1.62 or 192.168.1.22 also you will get same result, because both are also belongs to same subnet.
2. What is the subnet for the devices connected to IOU 2
Devices connected to IOU 2 are
192.168.1.103/26
192.168.1.104/26
Network interface address is : 192.168.1.126/26
Now we can to the operation with network interface address
Here the network prefix is 26 so,convert the address into binary form and take its first 26 bits and remaining as zero’s then that will give the subnet id of that particular subnet.
Binary equivalent of 192 is : 11000000
Binary equivalent of 168 is : 10101000
Binary equivalent of 1 is : 00000001
Binary equivalent of 126 is : 01111110
192.168.1.126 is: 11000000.10101000.00000001.01111110
take the first 26 bit and remaining as zeros
11000000.10101000.00000001.01000000 = 192.168.1.64
subnet id is : 192.168.1.64
