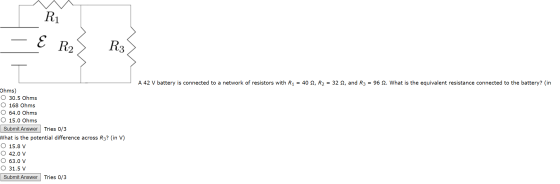

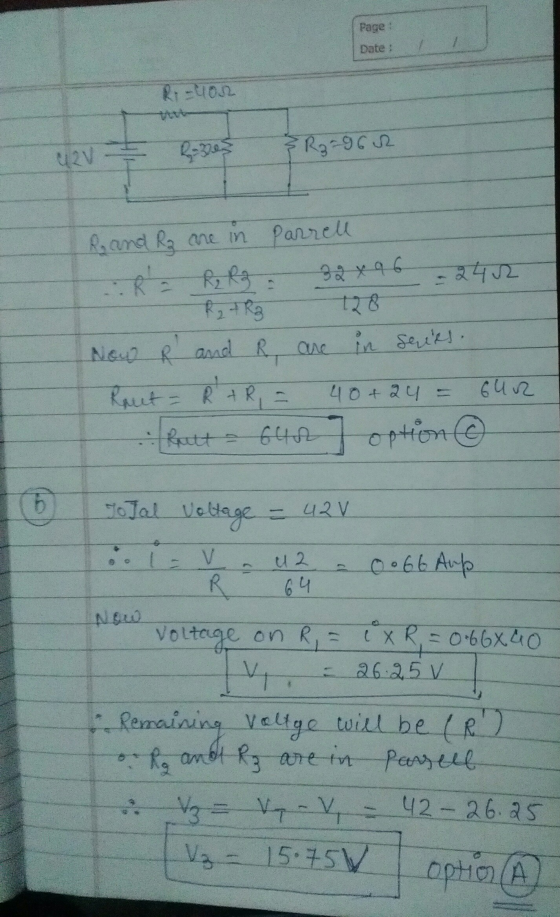

R1 E R2 R3 A 42 V battery is connected to a network of resistors...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.
2. Three resistors (R1, R2, and R3) are connected in parallel to a battery with a...
2. Three resistors (R1, R2, and R3) are connected in parallel to a battery with a voltage of V. Assign values to R1 (2.0 Ω), R2 (4.0 Ω), and R3 (6.0 Ω) and voltage (9.0 V) a) Solve for the current through the battery. (3 pts) b) Solve for the current through R2. (3 pts)
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, VB=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC R1 VA VB R2 R3 O 1.25 W 0 2.0 w 0 5.0 W O 6.25 W O 8.13 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC R1 VA -- VB R2 R3 O 0.75 W O 1.25 W 0 2.67 W O 4.2 W O 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc + R1 3 + VB R2 R3 O 0.75 W O 1.25 W 0 2.67 W 4.2 W O 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by Ri? VC + HA R1 VA V - R2 R3 O 1.25 W 0 2.0 W O 12.5 W O 6.25 W O 8.13 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R2=2 Ohms, R2=R3=4 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected what will be the current through R2? Vc R₂ 3 A VA HH V. R2 R3 O 0.75 A 01.25 A 0 2.5 A O 3.0 A 0 3.75 A
Draw a circuit with a battery connected to four resistors, R1, R2, R3, and R4, as...
Draw a circuit with a battery connected to four resistors, R1, R2, R3, and R4, as follows. Resistors R1 and R2 are connected in parallel with each other, resistors R3 and R4 are connected in parallel with each other, and both parallel sets of resistors are connected in series with each R FRR FR, attery. I wwww R4 R2
R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors,...
R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors, labeled 1 through 4. ?Which of the following is true about the way that the circuit elements are arranged Resistors 1 and 2 are in parallel while resistors 3 and 4 are in series Resistors 1 and 4 are in parallel while resistors 2 and 3 are in series Resistors 1 and 4 are in series, while resistors 2 and 3 are in parallel...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA-25 V, VB=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC +42 RT VA +7 VB R2 w R3 1.0 W 2.0 W 5.0 W 6.0 W 7.5 W
2. Three resistors (R1, R2, and R3) are connected in parallel to a battery with a voltage of V. Assign values to R1 (2.0 Ω), R2 (4.0 Ω), and R3 (6.0 Ω) and voltage (9.0 V) a) Solve for the current through the battery. (3 pts) b) Solve for the current through R2. (3 pts)
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, VB=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC R1 VA VB R2 R3 O 1.25 W 0 2.0 w 0 5.0 W O 6.25 W O 8.13 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC R1 VA -- VB R2 R3 O 0.75 W O 1.25 W 0 2.67 W O 4.2 W O 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc + R1 3 + VB R2 R3 O 0.75 W O 1.25 W 0 2.67 W 4.2 W O 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by Ri? VC + HA R1 VA V - R2 R3 O 1.25 W 0 2.0 W O 12.5 W O 6.25 W O 8.13 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R2=2 Ohms, R2=R3=4 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected what will be the current through R2? Vc R₂ 3 A VA HH V. R2 R3 O 0.75 A 01.25 A 0 2.5 A O 3.0 A 0 3.75 A
Draw a circuit with a battery connected to four resistors, R1, R2, R3, and R4, as follows. Resistors R1 and R2 are connected in parallel with each other, resistors R3 and R4 are connected in parallel with each other, and both parallel sets of resistors are connected in series with each R FRR FR, attery. I wwww R4 R2
R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors, labeled 1 through 4. ?Which of the following is true about the way that the circuit elements are arranged Resistors 1 and 2 are in parallel while resistors 3 and 4 are in series Resistors 1 and 4 are in parallel while resistors 2 and 3 are in series Resistors 1 and 4 are in series, while resistors 2 and 3 are in parallel...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA-25 V, VB=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC +42 RT VA +7 VB R2 w R3 1.0 W 2.0 W 5.0 W 6.0 W 7.5 W
