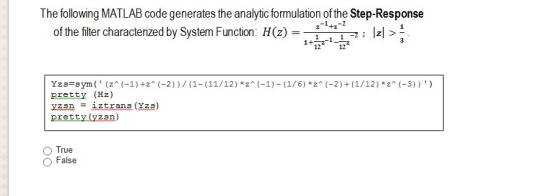

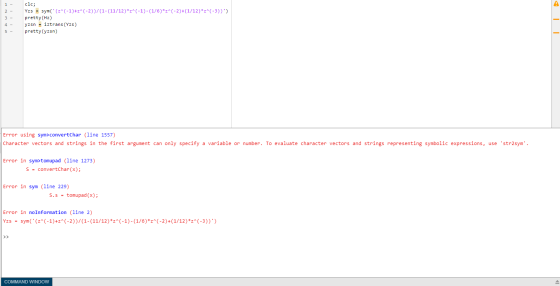

The following MATLAB code generates the analytic formulation of the Step-Response of the filter characterized by...
Consider a filter characterized by the following impulse response: h [1, 2, -1, 1] Which of...
Consider a filter characterized by the following impulse response: h [1, 2, -1, 1] Which of the following statements are true about the filter? Assume that the sampling frequency in this application is 8192 Hz. (You may use MATLAB to help you analyze this filter). o 1. The filter characterized by h = 1 2 1 1 Is a frequency selective FIR filter. In terms of the frequency response the ter is best characterized as a band-stop filter with a...
SIGNALS AND SYSTEMS (PLEASE UPLOAD MATLAB CODE) 5.37 Non-causal filter-Consider a filter with frequency response HG2)sin2)...
SIGNALS AND SYSTEMS (PLEASE UPLOAD MATLAB
CODE)
5.37 Non-causal filter-Consider a filter with frequency response HG2)sin2) or a sinc function in frequency. (a) Find the impulse response h(t) of this filter. Plot it and indicate whether this filter is a causal system or not. (b) Suppose you wish to obtain a band-pass filter G(jS2) from Hj2). If the desired center frequency of |G(jS2)| is 5, and its desired magni- tude is 1 at the center frequency, how would you process...
Hi This is linear systems and digital signal processing. Please answer this question with clean h...
Hi
This is linear systems and digital signal processing.
Please answer this question with clean handwriting.
Label the answer
n 29 Question 11 of 23 s Moving to another question will save this response. Question 11 1 points Save Answer Consider a fiter characterized by the following impulse response: h-[1.2,-1, 1] Which of the following statements are true about thie the sampling frequency in this application is 8192 Hz. (You may use MATLAB to help you analyze this filter) 1....
Using filterDesigner in MATLAB, design a second order low pass IIR Butterworth filter whose sampling frequency...
Using filterDesigner in MATLAB, design a second order low pass IIR Butterworth filter whose sampling frequency (Fs) is 1 kHz and cutoff frequency (Fc) is 10 Hz. Find the numerator and denominator coefficients. Write its transfer function H(z) = Y(z) / X(z). Write its difference function y(k). Draw (copy from Filter Designer) the magnitude response plot. Draw (copy from Filter Designer) the phase response plot. Draw (copy from Filter Designer) the impulse response plot.
[1].(20 Write a MATLAB program to design an FIR filter with the ssba (6KH2-12kHz) and draw the frequency response....
[1].(20 Write a MATLAB program to design an FIR filter with the ssba (6KH2-12kHz) and draw the frequency response. The sampling rate is 40kHz and the filter order is 10. Hint: b- firl(10, passband), freqz(b, 1, n (Display the horizontal axis in terms of analog frequency.) [2].(25}) In the following system f,800 samples/sec. yln]= 0.5y/n-1+ z{n]+ z{n_1] - c) Ideal D-to-A Cunverter LTI System Ideal A-to-D Converter -1/F T.-1/P (a) Determine the impulse response h nl/ (b) Determine the output...
Using filterDesigner in MATLAB, design a second order low pass IIR Butterworth filter whose sampling frequency (Fs) is 1...
Using filterDesigner in MATLAB, design a second order low pass IIR Butterworth filter whose sampling frequency (Fs) is 1 kHz and cutoff frequency (Fc) is 10 Hz. Find the numerator and denominator coefficients. Write its transfer function H(z) = Y(z) / X(z). Write its difference function y(k). Draw (copy from Filter Designer) the magnitude response plot. Draw (copy from Filter Designer) the phase response plot. Draw (copy from Filter Designer) the impulse response plot.
Using matlab to design H(z) as a 6th order Butterworth filter with bandedges of 0.3 and...
Using matlab to design H(z) as a 6th order Butterworth filter with bandedges of 0.3 and 0.5. Plot the frequency response of the above filter. Use the quantization function below to quantize the coefficients of the filter to 8 bits, and plot the frequency response. Implement H(z) in cascade form and quantize the coefficients to 8 bits, then plot the frequency response of the resulting filter. Compare the two approaches of implementing a filter and the effects of quantization on...
matlab code as well please. 7. (100) Design a bandpass FIR filter with the following Spec:...
matlab code as well please.
7. (100) Design a bandpass FIR filter with the following Spec: (a) Lower cut off frequency: 1250Hz, (b) lower transition width: 1500Hz, (c) upper cutoff frequency: 2850 Hz, (d) upper transition width: 1300 Hz, (e) stop band attenuation: 60dB, (f) passband ripple 0.02 dB, and (g) sampling frequency: 8000Hz. Your answer needs to include (i) normalized frequencies, (ii) Window type, (iii) order of the filter and their numerical values computed by matlab command firwd(), and...
Use MATLAB to find the step response (plot) of a system with the following transfer function:...
Use MATLAB to find the step response (plot) of a system with the following transfer function: G(S) = (s + 1) (s + 2) (s2 + 5s + 8) Copy and paste your MATLAB commands. Copy and paste the step response plot.
(a) The impulse response hfn of an FIR filter satisfies the following property: h[n]- otherwise where...
(a) The impulse response hfn of an FIR filter satisfies the following property: h[n]- otherwise where M is an even integer. Derive the filter's frequency response and show that it has a linear phase. Why is linear phase a desired property ? (b) You are asked to design a linear-phase FIR filter. The required pass-band is from 1,000 Hz to 3,000 Hz. The input signal's sampling frequency is 16, 000Hz e the pass-band in the w domain 1. GlV n...
Consider a filter characterized by the following impulse response: h [1, 2, -1, 1] Which of the following statements are true about the filter? Assume that the sampling frequency in this application is 8192 Hz. (You may use MATLAB to help you analyze this filter). o 1. The filter characterized by h = 1 2 1 1 Is a frequency selective FIR filter. In terms of the frequency response the ter is best characterized as a band-stop filter with a...
SIGNALS AND SYSTEMS (PLEASE UPLOAD MATLAB
CODE)
5.37 Non-causal filter-Consider a filter with frequency response HG2)sin2) or a sinc function in frequency. (a) Find the impulse response h(t) of this filter. Plot it and indicate whether this filter is a causal system or not. (b) Suppose you wish to obtain a band-pass filter G(jS2) from Hj2). If the desired center frequency of |G(jS2)| is 5, and its desired magni- tude is 1 at the center frequency, how would you process...
Hi
This is linear systems and digital signal processing.
Please answer this question with clean handwriting.
Label the answer
n 29 Question 11 of 23 s Moving to another question will save this response. Question 11 1 points Save Answer Consider a fiter characterized by the following impulse response: h-[1.2,-1, 1] Which of the following statements are true about thie the sampling frequency in this application is 8192 Hz. (You may use MATLAB to help you analyze this filter) 1....
[1].(20 Write a MATLAB program to design an FIR filter with the ssba (6KH2-12kHz) and draw the frequency response. The sampling rate is 40kHz and the filter order is 10. Hint: b- firl(10, passband), freqz(b, 1, n (Display the horizontal axis in terms of analog frequency.) [2].(25}) In the following system f,800 samples/sec. yln]= 0.5y/n-1+ z{n]+ z{n_1] - c) Ideal D-to-A Cunverter LTI System Ideal A-to-D Converter -1/F T.-1/P (a) Determine the impulse response h nl/ (b) Determine the output...
Using matlab to design H(z) as a 6th order Butterworth filter with bandedges of 0.3 and 0.5. Plot the frequency response of the above filter. Use the quantization function below to quantize the coefficients of the filter to 8 bits, and plot the frequency response. Implement H(z) in cascade form and quantize the coefficients to 8 bits, then plot the frequency response of the resulting filter. Compare the two approaches of implementing a filter and the effects of quantization on...
matlab code as well please.
7. (100) Design a bandpass FIR filter with the following Spec: (a) Lower cut off frequency: 1250Hz, (b) lower transition width: 1500Hz, (c) upper cutoff frequency: 2850 Hz, (d) upper transition width: 1300 Hz, (e) stop band attenuation: 60dB, (f) passband ripple 0.02 dB, and (g) sampling frequency: 8000Hz. Your answer needs to include (i) normalized frequencies, (ii) Window type, (iii) order of the filter and their numerical values computed by matlab command firwd(), and...
Use MATLAB to find the step response (plot) of a system with the following transfer function: G(S) = (s + 1) (s + 2) (s2 + 5s + 8) Copy and paste your MATLAB commands. Copy and paste the step response plot.
(a) The impulse response hfn of an FIR filter satisfies the following property: h[n]- otherwise where M is an even integer. Derive the filter's frequency response and show that it has a linear phase. Why is linear phase a desired property ? (b) You are asked to design a linear-phase FIR filter. The required pass-band is from 1,000 Hz to 3,000 Hz. The input signal's sampling frequency is 16, 000Hz e the pass-band in the w domain 1. GlV n...
