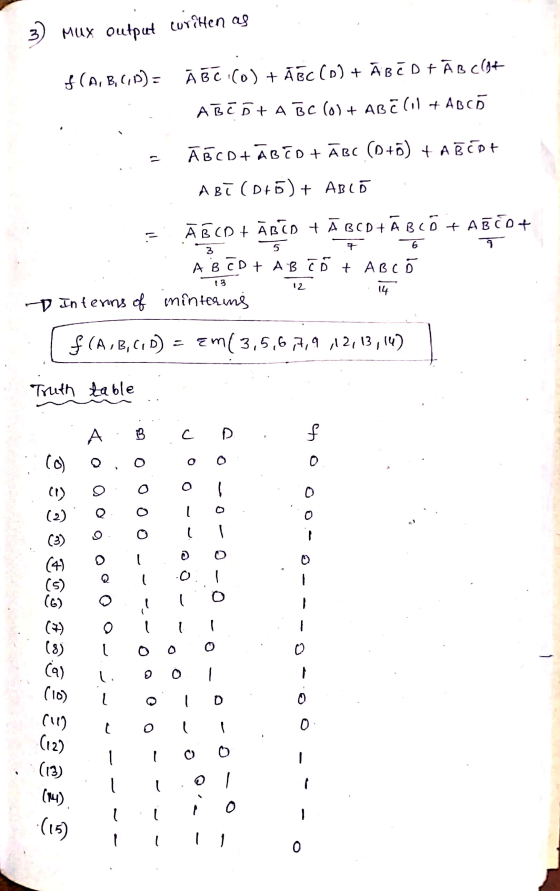

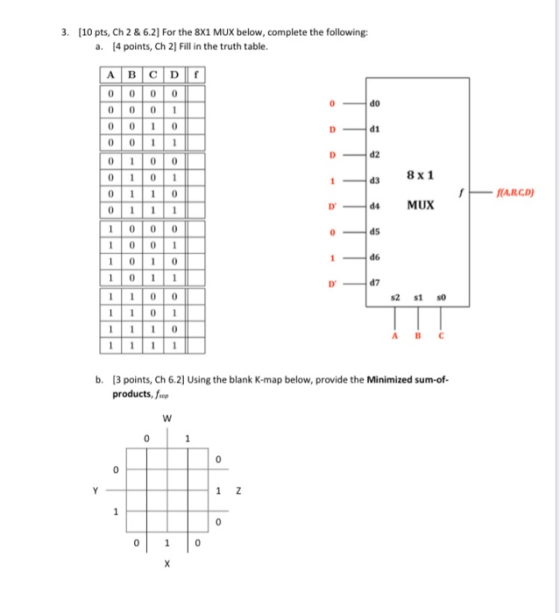

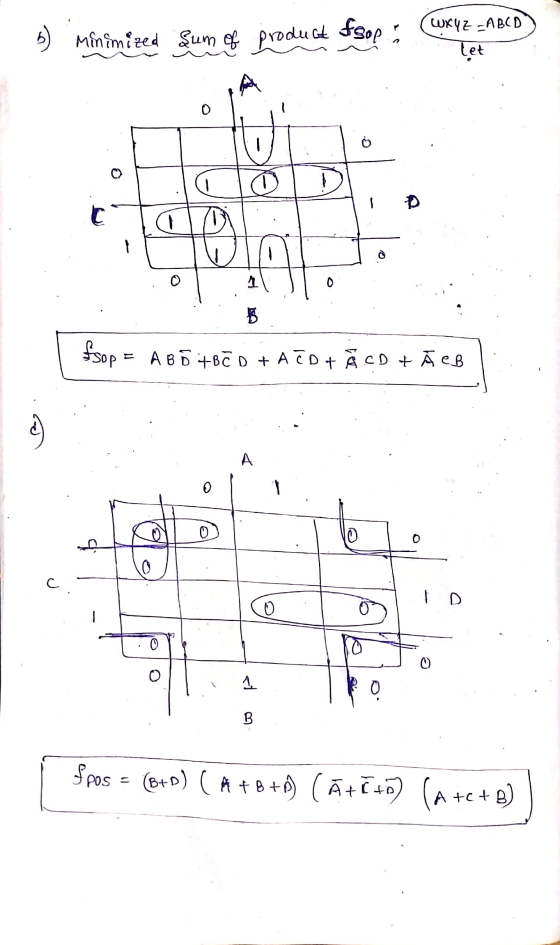

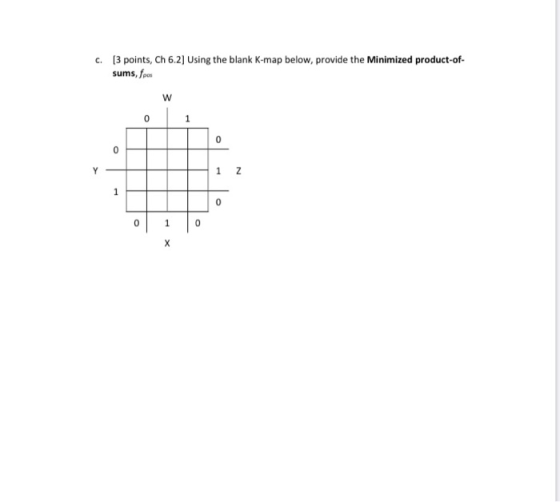

![3. (10 pts, Ch 2 & 6.2] For the 8X1 MUX below, complete the following: a. [4 points, Ch 2] Fill in the truth table. 8x1 ABCD](http://img.homeworklib.com/questions/375413f0-19af-11ec-ba6c-59f94dfb9b94.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
3. (10 pts, Ch 2 & 6.2] For the 8X1 MUX below, complete the following: a....
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A...
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A + BC + CD (b) ABCD + ABCD + ABCD + ABCD (c) ABCD + CD) + ABCD + CD) + ABCD (d) (AB + ABXCD + CD) (e) AB + AB + CD + CD 2. Use K-maps to find the minimum SOP expression for the logic function shown in the table to the right. Implement the circuit using NAND gates only. Inputs...
Consider the following circuit which contains 2 Mux 8x1, one 3-bit binary count-up counter, and some...
Consider the following circuit which contains 2 Mux 8x1, one 3-bit binary count-up counter, and some logic gates along with the timing diagram of 5 output lines L1 to L5. (Fig. 18) which of the timing lines (L1 to L5) can represent the F4 function based on MUX inputs. . 1 0 1 1 0 0 + F1 MUX 3x8 clk 1 . . 1 1 L1 CLK Binary Counter L2 L3 0 1 1 L4 13 MUX 3x8 4...
re V(H) (10).pdf WA 2 /9 150%. 66 Canonical and Standara rors Fill in the truth...
re V(H) (10).pdf WA 2 /9 150%. 66 Canonical and Standara rors Fill in the truth table below Draw the minimized gate level design for Z (Only use NAND and NOT gates). How many transistors would it take to implement this using standard CMOS? Z (A.B.C.D)- 0, 1, 2, 8, 10 ABCD How could a NOT gate be built with only a NAN gate? 1 0 1 1 0 1 1 1 1 1 1 0 source w 1 1...
both i. and ii. are apart of the question. thank you! Question 2: (30 points) a....
both i. and ii. are apart of the question. thank you!
Question 2: (30 points) a. The truth table for a Boolean expression is shown below. c F b 0 0 0 0 0 1 1 1 0 1 1 0 1 0 1 1 0 1 1 1 0 0 1 0 1 1 0 1 1 Write the Boolean expression F, in SOP form. (3 points) i. F(x.y,z) ii. Construct a K-Map for the above truth table and...
Preparation (Pre-lab) Before coming to the first lab session, complete the following tasks: Generate a truth...
Preparation (Pre-lab) Before coming to the first lab session, complete the following tasks: Generate a truth table showing inputs vs outputs for the following circuit blocks in Part I: Comparator, Circuit A, and Circuit B. o Use the truth tables to produce minimized SOP (sum of products) for the Comparator, Circuit A and Circuit B. Part I - Simple Binary to BCD Conversion Design Specifications You are to design a circuit that converts a four-bit binary number V[3..0] = V[3]...
3. (2 10 20 points) Design a decade counter using a 2-4-2-1 weighted code for decimal...
3. (2 10 20 points) Design a decade counter using a 2-4-2-1 weighted code for decimal digits (see table below) using the following flip-flop types: a. D Flip-flops S-R Flip-flops b. Digit ABCD 0000 1 0001 2 0010 3 0011 4 0100 1011 6 1100 7 1101 8 1110 1111 4. (6 points) Redraw the circuit from problem 3.a. using NAND gates only.
3. (2 10 20 points) Design a decade counter using a 2-4-2-1 weighted code for decimal digits...
Homework 2 EE 2420-Spring 2019 Due: Thursday, 2/21/19 @ 11:59 PM 100 points All homework must...
Homework 2 EE 2420-Spring 2019 Due: Thursday, 2/21/19 @ 11:59 PM 100 points All homework must be typed or written in neat handwriting and scanned or photographed and submitted in PDF format to TRACS. If we cannot easily read your submission, we will not grade your work. Note that files are only submitted if TRACS indicates a successful submission. All homework answers must be submitted individually in your own words and showing all work; however, I encourage you to work...
2. (8 marks] Design a sequential circuit specified by the state diagram in the figure below,...
2. (8 marks] Design a sequential circuit specified by the state diagram in the figure below, using D flip-flops. A. (4 marks] Construct the state table. B. [3 marks] Write the necessary equations using k-map. C. [1 mark] Implement the circuit. 01/0 ooo 0011 s, lovo 1010 10/0 oo! 10/ S2 01/o
4) (10 Points) Given the following truth table, derive the simplified Boolean equation in SOP form....
4) (10 Points) Given the following truth table, derive the simplified Boolean equation in SOP form. Use a K-map. с 0 0 D 0 B 0 0 0 0 1 1 A 0 0 0 0 0 0 0 0 0 1 1 0 0 0 1 1 1 1 1 0 1 1 1 z 0 1 1 1 1 1 1 0 0 0 1 0 0 0 1 1 0 1 1 1 0 0 1 0...
Question 4. (a) Find the minimum sum-of-products expression for each of the functions below using Karnaugh...
Question 4. (a) Find the minimum sum-of-products expression for each of the functions below using Karnaugh maps i) F = EA,B,C,D(2, 3, 6, 7, 12, 13, 14) (Note: the numbers in the brackets correspond to positions in the Karnaugh map where F takes the logic value 1, ie F = 1 when ABCD = 0010, 0011, 0110, etc). ii) F = []w.x,y,z(0, 2, 6, 7, 8, 14, 15) (Note: the numbers in the brackets correspond to positions in the Karnaugh...
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A + BC + CD (b) ABCD + ABCD + ABCD + ABCD (c) ABCD + CD) + ABCD + CD) + ABCD (d) (AB + ABXCD + CD) (e) AB + AB + CD + CD 2. Use K-maps to find the minimum SOP expression for the logic function shown in the table to the right. Implement the circuit using NAND gates only. Inputs...
Consider the following circuit which contains 2 Mux 8x1, one 3-bit binary count-up counter, and some logic gates along with the timing diagram of 5 output lines L1 to L5. (Fig. 18) which of the timing lines (L1 to L5) can represent the F4 function based on MUX inputs. . 1 0 1 1 0 0 + F1 MUX 3x8 clk 1 . . 1 1 L1 CLK Binary Counter L2 L3 0 1 1 L4 13 MUX 3x8 4...
re V(H) (10).pdf WA 2 /9 150%. 66 Canonical and Standara rors Fill in the truth table below Draw the minimized gate level design for Z (Only use NAND and NOT gates). How many transistors would it take to implement this using standard CMOS? Z (A.B.C.D)- 0, 1, 2, 8, 10 ABCD How could a NOT gate be built with only a NAN gate? 1 0 1 1 0 1 1 1 1 1 1 0 source w 1 1...
both i. and ii. are apart of the question. thank you!
Question 2: (30 points) a. The truth table for a Boolean expression is shown below. c F b 0 0 0 0 0 1 1 1 0 1 1 0 1 0 1 1 0 1 1 1 0 0 1 0 1 1 0 1 1 Write the Boolean expression F, in SOP form. (3 points) i. F(x.y,z) ii. Construct a K-Map for the above truth table and...
Preparation (Pre-lab) Before coming to the first lab session, complete the following tasks: Generate a truth table showing inputs vs outputs for the following circuit blocks in Part I: Comparator, Circuit A, and Circuit B. o Use the truth tables to produce minimized SOP (sum of products) for the Comparator, Circuit A and Circuit B. Part I - Simple Binary to BCD Conversion Design Specifications You are to design a circuit that converts a four-bit binary number V[3..0] = V[3]...
3. (2 10 20 points) Design a decade counter using a 2-4-2-1 weighted code for decimal digits (see table below) using the following flip-flop types: a. D Flip-flops S-R Flip-flops b. Digit ABCD 0000 1 0001 2 0010 3 0011 4 0100 1011 6 1100 7 1101 8 1110 1111 4. (6 points) Redraw the circuit from problem 3.a. using NAND gates only.
3. (2 10 20 points) Design a decade counter using a 2-4-2-1 weighted code for decimal digits...
Homework 2 EE 2420-Spring 2019 Due: Thursday, 2/21/19 @ 11:59 PM 100 points All homework must be typed or written in neat handwriting and scanned or photographed and submitted in PDF format to TRACS. If we cannot easily read your submission, we will not grade your work. Note that files are only submitted if TRACS indicates a successful submission. All homework answers must be submitted individually in your own words and showing all work; however, I encourage you to work...
2. (8 marks] Design a sequential circuit specified by the state diagram in the figure below, using D flip-flops. A. (4 marks] Construct the state table. B. [3 marks] Write the necessary equations using k-map. C. [1 mark] Implement the circuit. 01/0 ooo 0011 s, lovo 1010 10/0 oo! 10/ S2 01/o
4) (10 Points) Given the following truth table, derive the simplified Boolean equation in SOP form. Use a K-map. с 0 0 D 0 B 0 0 0 0 1 1 A 0 0 0 0 0 0 0 0 0 1 1 0 0 0 1 1 1 1 1 0 1 1 1 z 0 1 1 1 1 1 1 0 0 0 1 0 0 0 1 1 0 1 1 1 0 0 1 0...
Question 4. (a) Find the minimum sum-of-products expression for each of the functions below using Karnaugh maps i) F = EA,B,C,D(2, 3, 6, 7, 12, 13, 14) (Note: the numbers in the brackets correspond to positions in the Karnaugh map where F takes the logic value 1, ie F = 1 when ABCD = 0010, 0011, 0110, etc). ii) F = []w.x,y,z(0, 2, 6, 7, 8, 14, 15) (Note: the numbers in the brackets correspond to positions in the Karnaugh...
