QUESTION 4 Determine the slope at Point A of the beam shown below, measured counterclockwise from...

Question

Question

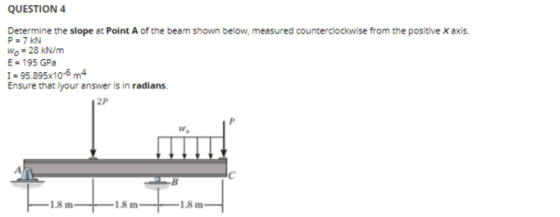

QUESTION 4 Determine the slope at Point A of the beam shown below, measured counterclockwise from the positive x axis. P = 7

engineering Mechanical-Engineering

Answer 1

Answer #1

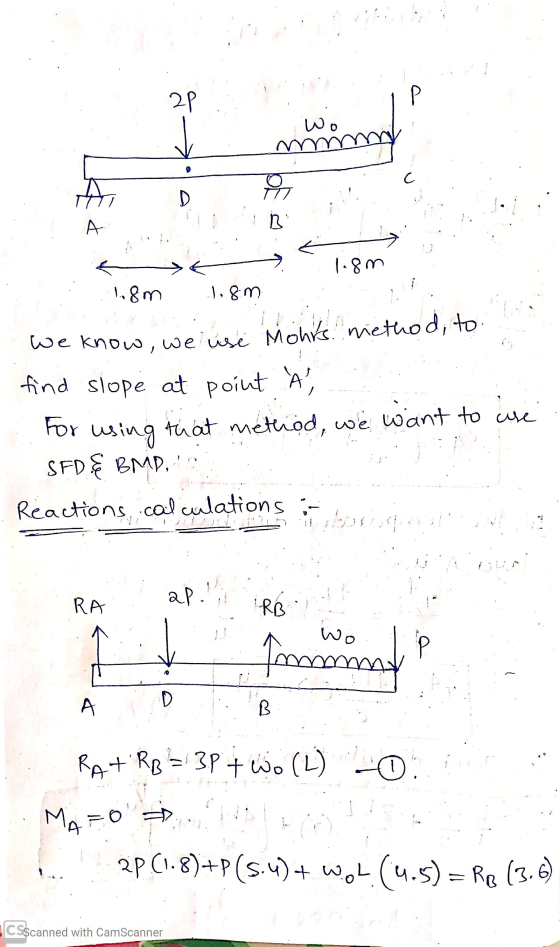

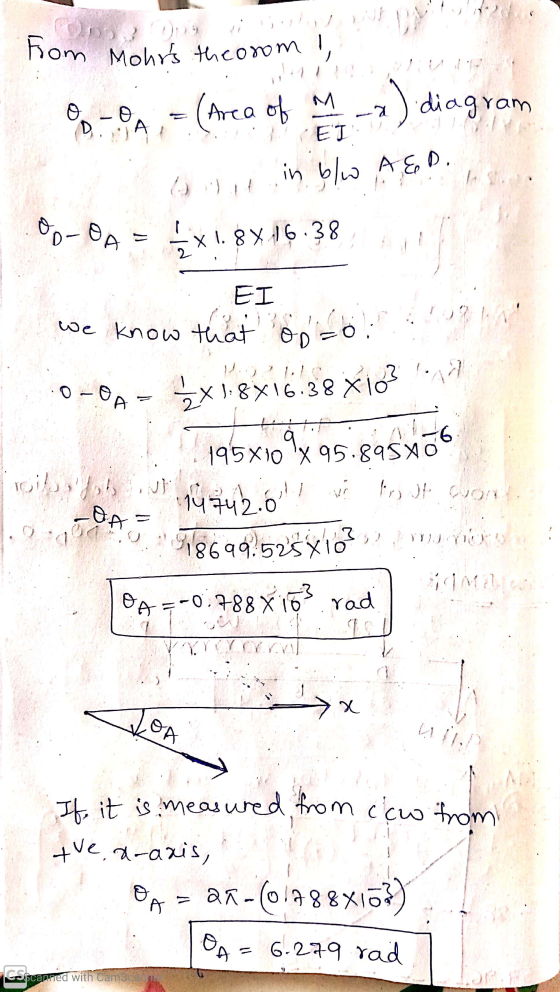

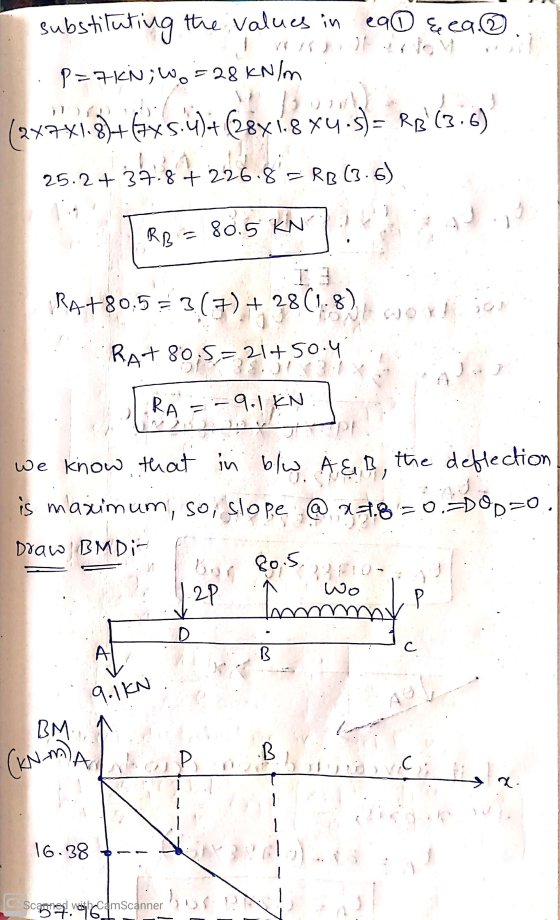

A 1.8m e : t 1.8m 1.8m : We know, we use Mohns nietho. find slope at point A, For using that method, we want to use SFDE BMP.

Answer 2
