The three circuits below have driving Emf's with the same amplitude, 5 V. Each is driven...

The three circuits below have driving Emf's with the same amplitude, 5 V. Each is driven at a fixed frequency which differs from the other two. The magnitudes of the inductive reactance in the left circuit, of the capacitive reactance in the center circuit, and of the all resistances are shown in the figures.

The three circuits below have driving Emf's with t

I. For the circuit on the left, calculate the total power dissipated.

II. For the circuit in the center, calculate the Vrms between a and b.

III. For the circuit on the right, calculate the rms current in the circuit.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

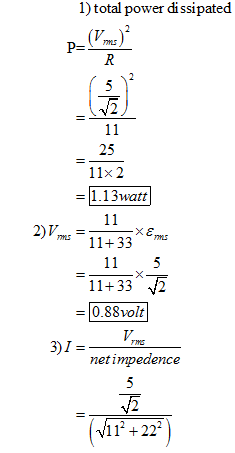

1) total power dissipated 25 11x 2 - 1.13watt 1.13watt 11+33 115 11-33- 10-88volt net impedence 12 + 222
