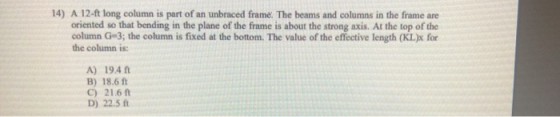

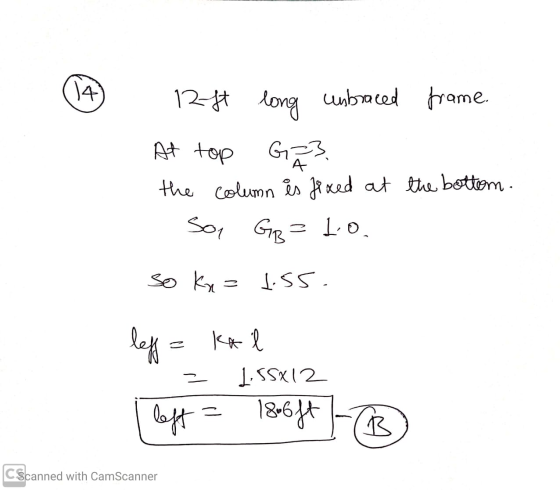

14) A 12-ft long column is part of an unbraced frame. The beams and columns in...
Question 6 refers to a frame in an unbraced multi-story building shown below. The column on...
Question 6 refers to a frame in an unbraced multi-story building shown below. The column on gridline C is a W12x72 oriented such that strong axis buckling would occur in the plane of the frame. B W16x26 W1835 15 ft W16x26 W18X35 15 ft 30 ft 40 ft 6. (5 points) Determine the effective length, Lc (ft) and available strength (k) of the column. You may use either LRFD or ASD.
Determine the capacity of a W14x61 column (A992) if it is part of a sway frame...
Determine the capacity of a W14x61 column (A992) if it is part of a sway frame (meaning lateral translation is allowed between the top and bottom for effective length factors). You may use any tables or charts in the manual. The unbraced length = 15 ft (not necessarily effective length) for either major axis or minor axis buckling as given below. a) Minor axis buckling with top fixed and bottom fixed (6 pts) b) Minor axis buckling with top fixed...
A W14 × 74 of A992 steel, 16 feet long, is used as a column in an unbraced frame.
A W14 × 74 of A992 steel, 16 feet long, is used as a column in an unbraced frame. The axial load and end moments obtained from a first-order analysis of the gravity loads (dead load and live load) are shown in Figure P6.7-2a. The frame is symmetric, and the gravity loads are symmetrically placed. Figure P6.7-2b shows the wind load effects obtained from a first-order analysis. All loads and moments are based on service loads, and all bend-ing moments...
143 t 13 tHo W 16 x E at lo A building frame is shown. Using the alignment charts determine the e...
143 t 13 tHo W 16 x E at lo A building frame is shown. Using the alignment charts determine the effective column length factor (K) and the slenderness ratio KL/r for each column. Note, the columns on the upper level are subject to sidesway and beams bend about their strong axis.
143 t 13 tHo W 16 x E at lo A building frame is shown. Using the alignment charts determine the effective column length factor (K) and the...
1.100 kips Problem 5: The frame with the factored loads in 10 kips Figure 5 is fixed at the base....
1.100 kips Problem 5: The frame with the factored loads in 10 kips Figure 5 is fixed at the base. The columns are oriented so that in-plane bending will be about the x-axis. The columns are continuously braced in the transverse direction such that they can only buckle in-plane. Use A992 steel and select the lightest W14 for the column. The beam size is W24x76 15 f 20 ft
1.100 kips Problem 5: The frame with the factored loads in...
Problem 22. Two-story, one-bay unbraced frame shown below is subjected to gravitational dead and live loads...
Problem 22. Two-story, one-bay unbraced frame shown below is subjected to gravitational dead and live loads and wind lateral load. The columns are made of W18x65 (I,-1070 in , Ag- 19.1 in2, r-7.49 in, ry-1.69 in) and beams are made of W18x71 (1, 1170 in). The table below shows the moments at the ends of column 4-5 due to three load cases. The frame is fully braced in lateral direction. Use Grade50 steel Bending is about strong axis. All gravity...
Could you please use AISC steel manual for the parts needed? 15th edition 2. The frame...
Could you please use AISC steel
manual for the parts needed? 15th edition
2. The frame shown in the figure below is unbraced, and bending is about the x-axis of all members. All beams are W16 x 40. Column BC is supported in the weak direction (i.e 2 direction perpendicular to the plane of the frame) at mid height and it is assumed pinned at both ends in this direction (i.e. Ky=1) Assuming that all columns are rectangular HSS 14x6x5/8,...
The single-story unbraced frame shown below is subjected to dead load, roof live load, and wind load Figure 1 shows the...
The single-story unbraced frame shown below is subjected to dead load, roof live load, and wind load Figure 1 shows the results of a first-order analysis relative to the columns of the frame. The axial load and end moment (also equal to the maximum moment in the column) are given separately for the different load cases (i.e., dead load, roof live load, and lateral wind load). All vertical loads are symmetrically placed and contribute only to the Mnt moments (i.e.,...
A 28 ft long W14x257 column is pinned at the top and bottom ends on the...
A 28 ft long W14x257 column is pinned at the top and bottom ends on the minor axis (i.e., the column end is restrained against translation in a direction perpendicular to the web) and fixed at the bottom and free at the top ends on the major axis (i.e., the bottom end is restrained against rotation about the axis perpendicular to the web and translation parallel to the web, and the top end is free to move in a direction...
2. Determine if Column A (W12X190) below is adequately sized for the applied load Pu. If not, sel...
2. Determine if Column A (W12X190) below is adequately sized for the applied load Pu. If not, select an new W12 that satisfies the design strength required. . Assume in plane all girder to to column connections are moment connections. o Assume columns are A992 steel have their strong axis (lx) oriented in the frame direction. Assume Out plane that there is bracing at the top, bottom, and mid-height of the column. . Assume out plane that simple connections connect...
Question 6 refers to a frame in an unbraced multi-story building shown below. The column on gridline C is a W12x72 oriented such that strong axis buckling would occur in the plane of the frame. B W16x26 W1835 15 ft W16x26 W18X35 15 ft 30 ft 40 ft 6. (5 points) Determine the effective length, Lc (ft) and available strength (k) of the column. You may use either LRFD or ASD.
Determine the capacity of a W14x61 column (A992) if it is part of a sway frame (meaning lateral translation is allowed between the top and bottom for effective length factors). You may use any tables or charts in the manual. The unbraced length = 15 ft (not necessarily effective length) for either major axis or minor axis buckling as given below. a) Minor axis buckling with top fixed and bottom fixed (6 pts) b) Minor axis buckling with top fixed...
143 t 13 tHo W 16 x E at lo A building frame is shown. Using the alignment charts determine the effective column length factor (K) and the slenderness ratio KL/r for each column. Note, the columns on the upper level are subject to sidesway and beams bend about their strong axis.
143 t 13 tHo W 16 x E at lo A building frame is shown. Using the alignment charts determine the effective column length factor (K) and the...
1.100 kips Problem 5: The frame with the factored loads in 10 kips Figure 5 is fixed at the base. The columns are oriented so that in-plane bending will be about the x-axis. The columns are continuously braced in the transverse direction such that they can only buckle in-plane. Use A992 steel and select the lightest W14 for the column. The beam size is W24x76 15 f 20 ft
1.100 kips Problem 5: The frame with the factored loads in...
Problem 22. Two-story, one-bay unbraced frame shown below is subjected to gravitational dead and live loads and wind lateral load. The columns are made of W18x65 (I,-1070 in , Ag- 19.1 in2, r-7.49 in, ry-1.69 in) and beams are made of W18x71 (1, 1170 in). The table below shows the moments at the ends of column 4-5 due to three load cases. The frame is fully braced in lateral direction. Use Grade50 steel Bending is about strong axis. All gravity...
Could you please use AISC steel
manual for the parts needed? 15th edition
2. The frame shown in the figure below is unbraced, and bending is about the x-axis of all members. All beams are W16 x 40. Column BC is supported in the weak direction (i.e 2 direction perpendicular to the plane of the frame) at mid height and it is assumed pinned at both ends in this direction (i.e. Ky=1) Assuming that all columns are rectangular HSS 14x6x5/8,...
The single-story unbraced frame shown below is subjected to dead load, roof live load, and wind load Figure 1 shows the results of a first-order analysis relative to the columns of the frame. The axial load and end moment (also equal to the maximum moment in the column) are given separately for the different load cases (i.e., dead load, roof live load, and lateral wind load). All vertical loads are symmetrically placed and contribute only to the Mnt moments (i.e.,...
2. Determine if Column A (W12X190) below is adequately sized for the applied load Pu. If not, select an new W12 that satisfies the design strength required. . Assume in plane all girder to to column connections are moment connections. o Assume columns are A992 steel have their strong axis (lx) oriented in the frame direction. Assume Out plane that there is bracing at the top, bottom, and mid-height of the column. . Assume out plane that simple connections connect...
